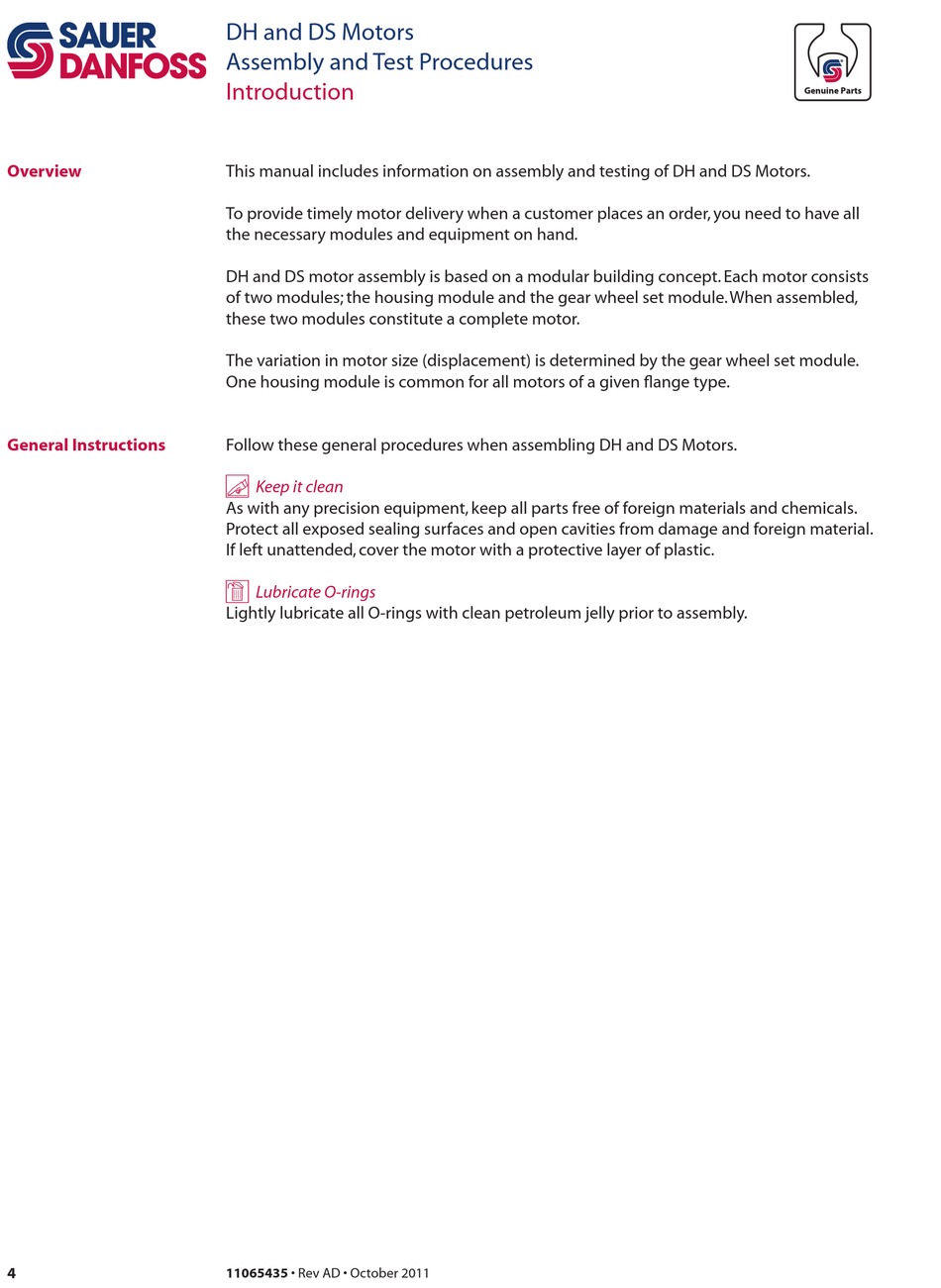

DH and DS Motors
Assembly and Test Procedures

Introduction

This manual includes information on assembly and testing of DH and DS Motors.
To provide timely motor delivery when a customer places an order, you need to have all
the necessary modules and equipment on hand.
DH and DS motor assembly is based on a modular building concept. Each motor consists
of two modules; the housing module and the gear wheel set module. When assembled,
these two modules constitute a complete motor.
The variation in motor size (displacement) is determined by the gear wheel set module.
One housing module is common for all motors of a given flange type.
Follow these general procedures when assembling DH and DS Motors.
e Keep it clean
As with any precision equipment, keep all parts free of foreign materials and chemicals.
Protect all exposed sealing surfaces and open cavities from damage and foreign material.
If left unattended, cover the motor with a protective layer of plastic.
d Lubricate O-rings
Lightly lubricate all O-rings with clean petroleum jelly prior to assembly.
11065435 • Rev AD • October 2011
