DH and DS Motors
Assembly and Test Procedures
Schematic

Hydraulic Schematic

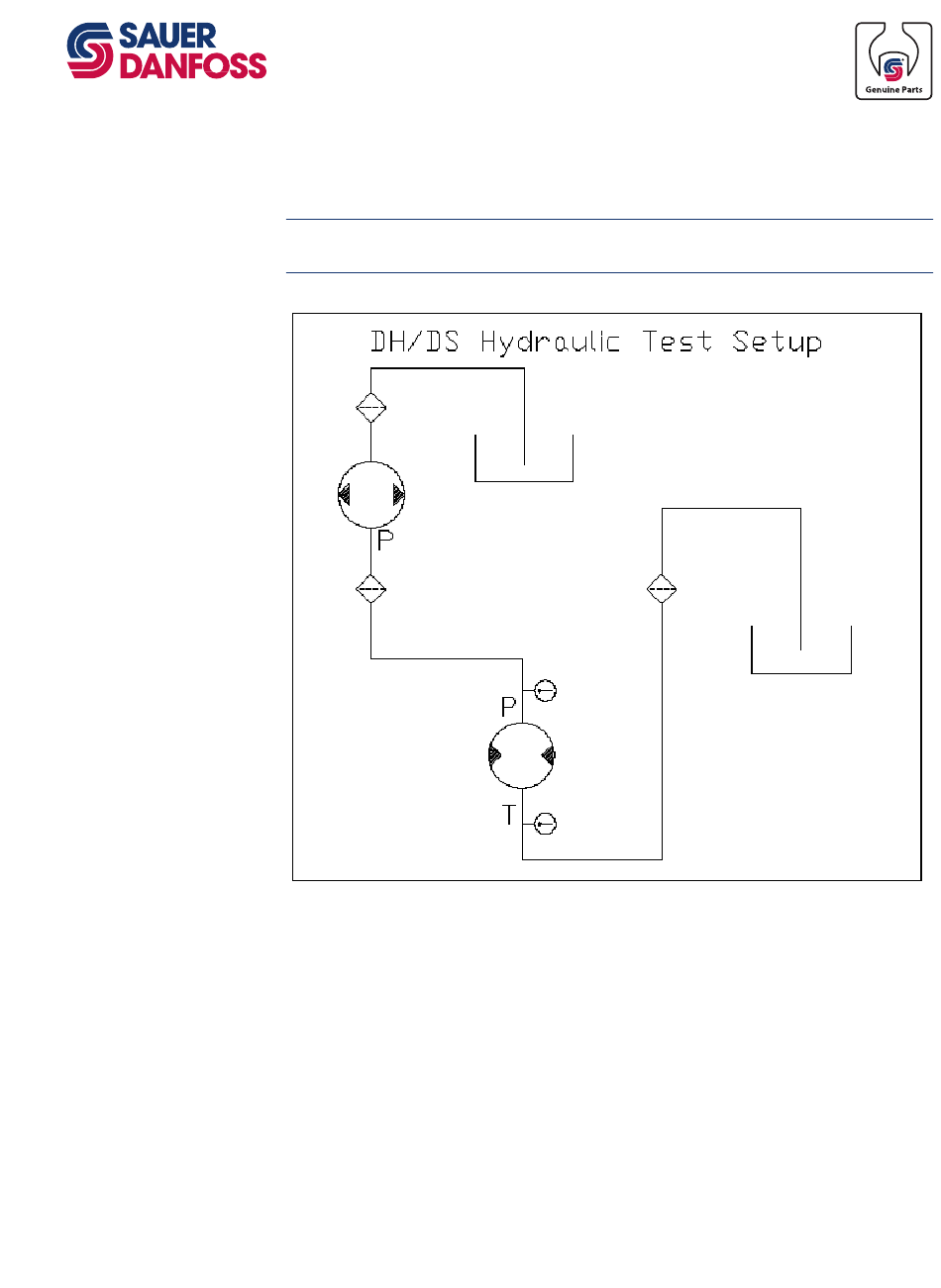

The following schematic shows the proper connection of the motor to the hydraulic
power unit for testing purposes.
Note the position of the two pressure gauges. Position them as close as possible to the ports
of the motor for the most accurate reading.
15
11065435 • Rev AD • October 2011
