80-136KTL
User manual

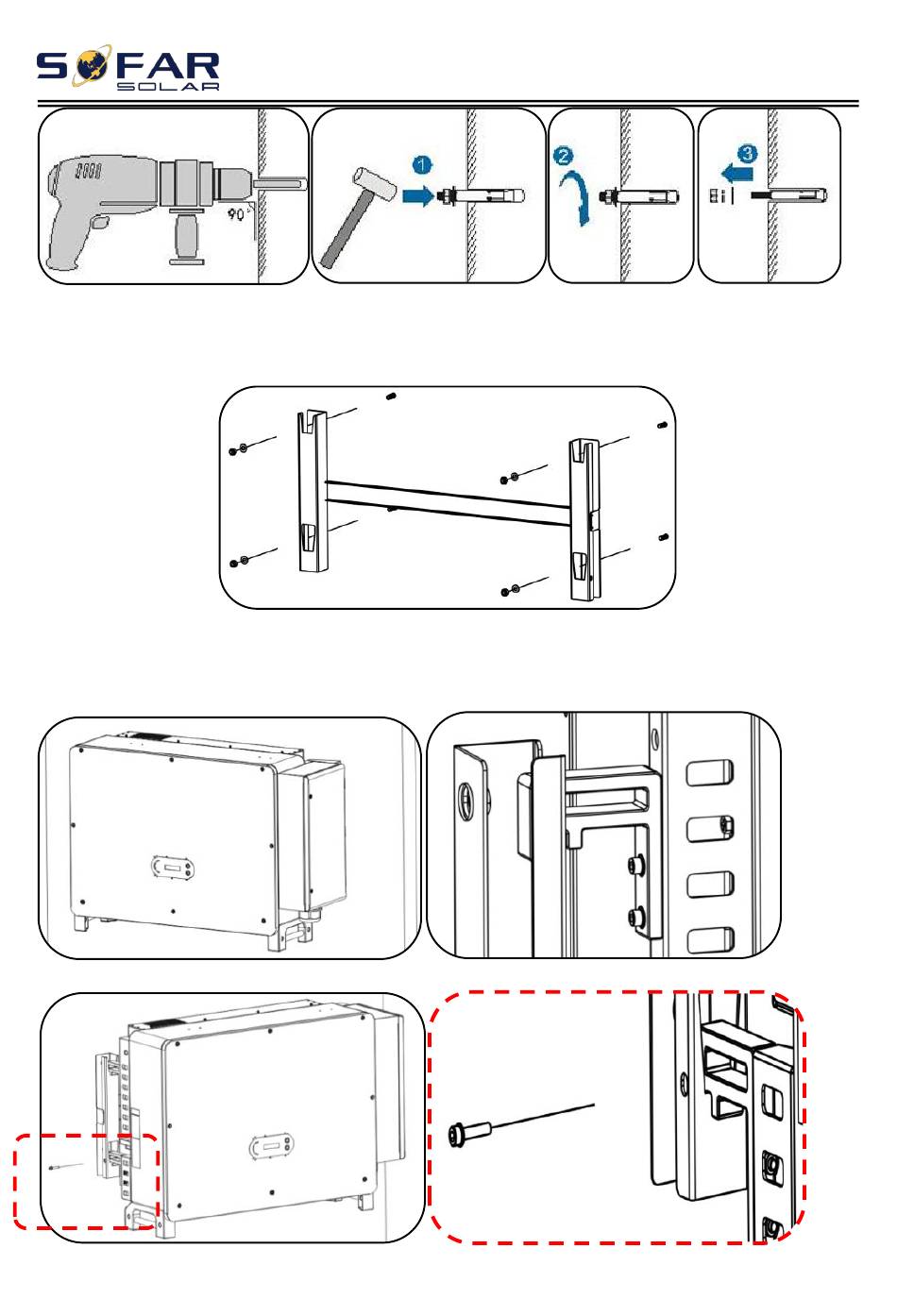

Figure 4-9 Screws into the holes
Step 3: Align the rear panel with the hole positions, fix the rear panels on the wall
by tightening the expansion bolt with the nuts
Figure 4-10 Install rear panel
Step 4 ： Lift the inverter and hang it on the rear panel,and fixing both side of
inverter with M6 screw (accessories).
- 26 -
Copyright © Shenzhen SOFARSOLAR Co., Ltd
