Summary of Contents for Belden GRASS VALLEY IPG-3901
- Page 1 IPG-3901 High Density SDI/IP Gateway Guide to Installation and Operation M3036-9900-100 2015-10-06...
- Page 2 Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or registered trademarks of Belden Inc. or its affiliated companies in the United States and other jurisdictions. Grass Valley USA, LLC, Miranda, IPG-3901, iControl, and Densité are trademarks or registered trademarks of Grass Valley USA, LLC. Belden Inc., Grass Valley USA, LLC, and other parties may also have trademark rights in other terms used herein.
- Page 3 GUIDE TO INSTALLATION AND OPERATION Certification and Compliance Safety of Laser Modules This equipment incorporates modules containing Class 1 lasers. These modules are certified by the manufacturer to comply with: • IEC/EN 60825-1 Safety of laser products • IEC 60950-1 Safety of information technology equipment Restriction on Hazardous Substances (RoHS) 有毒有害物质或元素...
- Page 4 GUIDE TO INSTALLATION AND OPERATION Electromagnetic Compatibility This equipment has been tested for verification of compliance with FCC Part 15, Subpart B requirements for Class A digital devices. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 5: Table Of Contents
GUIDE TO INSTALLATION AND OPERATION Table of Contents IPG-3901 High Density SDI/IP Gateway for Densité 3 Platform..........1 Introduction ............................1 Features .............................. 1 Functional Block Diagram ........................2 Front Card-edge Interface ........................2 Installation ..........................3 Installation of Rear Connector Panels ....................3 IPG-3901 Card Installation ........................ - Page 6 GUIDE TO INSTALLATION AND OPERATION IPG-3901...
-
Page 7: Ipg-3901 High Density Sdi/Ip Gateway For Densité 3 Platform
GUIDE TO INSTALLATION AND OPERATION 1 IPG-3901 High Density SDI/IP Gateway for Densité 3 Platform 1.1 Introduction The Densité IP Gateway (IPG-3901) plug-and-play modules seamlessly bridge hybrid SDI/IP production environments. As broadcasters migrate to IP-based transport, these space-saving, low-power cards are easily added to existing Densité... -
Page 8: Functional Block Diagram
GUIDE TO INSTALLATION AND OPERATION 1.3 Functional Block Diagram Figure 1-1 IPG-3901 Functional Block Diagram 1.4 Front Card-edge Interface The front card-edge of the IPG-3901 incorporates two elements: • Status LED (see section 3.2) • Select Button (see section 4) IPG-3901 IRD-3802 Select Button... -
Page 9: Installation

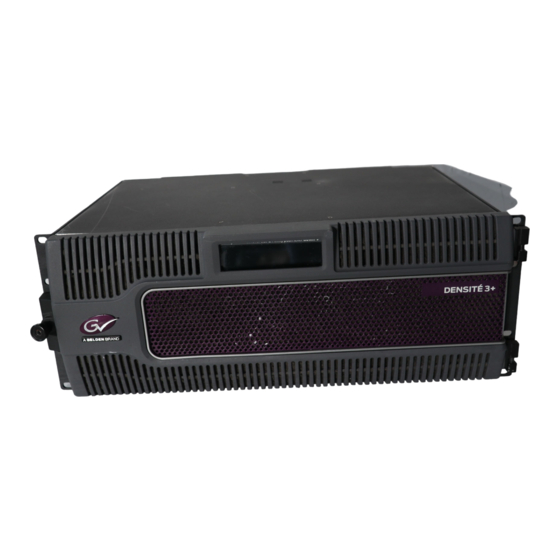

GUIDE TO INSTALLATION AND OPERATION 2 Installation 2.1 Installation of Rear Connector Panels Grass Valley Densité-series cards are each associated with a rear connector panel, which must be installed in the Densité frame before the card can be inserted. The IPG-3901 card is designed to fit into Grass Valley’s Densité-3 and Densité 3+ frames. Two different rear connector panels are available: •... -
Page 10: Rear Panels And Connectors
GUIDE TO INSTALLATION AND OPERATION 2.3 Rear Panels and Connectors 2.3.1 Images of Rear Panel Connectors The two available rear panels are shown in the figure. Details of the inputs and outputs are described below. NB – references to MADI on the labels for I/O 1, 3, 4 and 7 are for future use. -
Page 11: Details Of Rear Panel Connections
GUIDE TO INSTALLATION AND OPERATION 2.3.3 Details of rear panel connections REF IN – External reference (to be supported in a future release) Connect an NTSC or PAL reference signal (SMPTE 170M/SMPTE 318M/ITU 624-4 black burst) 3G/HD/SD IN – Serial digital 3G/HD/SD inputs Connect serial digital video signals, conforming to the SMPTE 425M standard for 3G input signals, SMPTE 292M standard for HD input signals or SMPTE 259M standard for SD input signals, to the connectors labeled 3G/HD/SD IN 1 and IN 2. -
Page 12: User Interface
GUIDE TO INSTALLATION AND OPERATION 3 User Interface 3.1 Control options The IPG-3901 can be controlled in two different ways: • The local control panel and its push-buttons can be used to move through a menu of status reports (see section •... -
Page 13: Local Control Using The Densité 3 Frame Control Panel
GUIDE TO INSTALLATION AND OPERATION 4 Local control using the Densité 3 frame control panel 4.1 Overview Push the SELECT button on the IPG-3901 card edge (see section 1.4) to assign the local control panel to operate the IPG-3901. Use the control panel buttons to navigate through the menu, as described below. -
Page 14: Remote Control Using Icontrol
GUIDE TO INSTALLATION AND OPERATION 5 Remote control using iControl The operation of the IPG-3901 may be controlled using Miranda’s iControl system. • This manual describes the control panels associated with the IPG-3901 and their use. • Please consult the iControl User’s Guide for information about setting up and operating iControl. In iControl Navigator or iControl Websites, double-click on the IPG-3901 icon to open the control panel. - Page 15 GUIDE TO INSTALLATION AND OPERATION • The icon whose status or error message is shown is highlighted with a mauve background The table below describes the various status icons that can appear, and how they are to be interpreted. • In cases where there is more than one possible interpretation, read the error message in the iControl window to see which applies.
- Page 16 GUIDE TO INSTALLATION AND OPERATION Icon #5 – ETH2 Status IP link up and active (green) No link (port down) (red) Ethernet port not used (gray) Icon #6 – Health Monitoring Hardware OK (green) Hardware Health Monitoring (Hardware fault detected) FPGA overheating and has been disabled.
-
Page 17: Gateway Config Panel
GUIDE TO INSTALLATION AND OPERATION 5.2 Gateway Config panel 5.2.1 Gateway Config panel – System tab System-wide Scan Rate: Use the pulldown to select the scan rate for the system. • Any input not matching this rate will be considered invalid. Scan rate 50 Hz 59.94 Hz... -
Page 18: Gateway Config Panel - Gateways Tab
GUIDE TO INSTALLATION AND OPERATION window open. Select Apply to accept the selected color and leave the Color Selection window open. Select OK to accept the selected color and close the Color Selection window. Select Cancel to close the Color Selection window without making changes. 5.2.2 Gateway Config panel –... - Page 19 GUIDE TO INSTALLATION AND OPERATION The status of the IP stream is shown by the background color of the Stream Address column. Gateway Direction Color Status IP Stream to SDI Green IP stream is valid Invalid address No IP stream Errors in IP stream Grey Gateway disabled...
-
Page 20: Gateways Config Panel - Names Tab
GUIDE TO INSTALLATION AND OPERATION IP Stream to SDI Multicast address are accepted (224.0.0.0 through 239.255.255.255) Unicast address are accepted R. Stream Port (S. Port) 0 to 9999 1000 R. IGMPv3 Source 0.0.0.0 to 255.255.255.255 0.0.0.0 Format SD, HD, 3G 5.2.3 Gateways Config panel –... -
Page 21: Network Panel
GUIDE TO INSTALLATION AND OPERATION 5.3 Network panel 5.3.1 Network panel – Settings tab Network Configuration Enter the IP Address, Mask and Gateway for the two ethernet ports (ETH1 and ETH2) on the IPG-3901 into the data boxes. • After any change, you must click Apply to confirm the new values, or Cancel to leave the existing values unchanged. -
Page 22: Network Panel - Statistics Tab
GUIDE TO INSTALLATION AND OPERATION 5.3.3 Network panel – Statistics tab This tab displays continuously-updated statistics about the data passing through each of the ethernet ports. • Packets: The total number of Ethernet packets transmitted and received since the last reset on each port. -
Page 23: Test Panel
GUIDE TO INSTALLATION AND OPERATION The status of the SDI I/O is shown by the background color of the Gateway column when the SDI side is selected as INPUT using the direction arrow. • SDI Input: Green Transport stream present No transport stream at the SDI input •... -
Page 24: Factory/Presets Panel
GUIDE TO INSTALLATION AND OPERATION 5.6 Factory/Presets Panel User Presets The IPG-3901 has memory registers which can hold up to 5 user-defined parameter settings. Select any one of the five presets using the pull-down list. Click Load to load the contents of the selected User Preset into the IPG-3901. -
Page 25: Profiles
GUIDE TO INSTALLATION AND OPERATION 5.6.2 Profiles Use Profiles to save or recover the entire card configuration (including user presets if desired) on an external disk, or to copy it to another IPG-3901 card. Click on Profiles to open the Profile Copy window. Figure 5-11 Profile Copy for Card Copy profile from This line shows this IPG-3901 card, and identifies it by App server, Densité... - Page 26 GUIDE TO INSTALLATION AND OPERATION Save Profile to Disk… After selecting which profiles you want to save, click this button to open a Save dialog allowing you to specify a file name and location to which the selected profiles for this card will be saved. Hint - It is a good idea to create a folder for these files, because they are not explicitly identified as IPG-3901 profiles, and will be difficult to find and identify if not...
-
Page 27: Alarm Config Panel
GUIDE TO INSTALLATION AND OPERATION The Select column includes a checkbox to identify which IPG-3901 cards you wish to copy profiles into from the current card. • For convenience, a Select all checkbox is provided in the column header Click Copy to copy the selected profiles from this card into the selected other IPG-3901 cards •... - Page 28 GUIDE TO INSTALLATION AND OPERATION Card LED status is shown at the bottom of the alarm tree in the Status/Name column. Overall Alarm This column allows configuration of the contribution of each individual alarm to the Overall Alarm associated with this card.
- Page 29 GUIDE TO INSTALLATION AND OPERATION Copy to other cards Click this button to open a panel that allows the alarm configuration set for this card to be copied into another IPG-3901 card. • Select one or more destination cards from the list in the window by clicking in the checkboxes, or all of them by clicking in the All checkbox •...
-
Page 30: Info Panel
GUIDE TO INSTALLATION AND OPERATION 5.8 Info Panel 5.8.1 Info Panel – Info tab When the IPG-3901 is included in an iControl environment, certain information about the card should be available to the iControl system. The user can enter labels and comments that will make this card easy to identify in a complex setup. -
Page 31: Info Panel - Technical Support Tab
GUIDE TO INSTALLATION AND OPERATION • Remote System Administration – opens the Joining Locators window, which lists remote lookup services to which this IPG-3901 is registered Add: Force the iControl service for this IPG-3901 to register itself on a user-specified Jini lookup service, using the following syntax in the data box: jini://<ip_address>... -
Page 32: Specifications
HD: SMPTE-274M: 1080i59.94, 1080i50 HD: SMPTE-296M: 720p59.94, 720p50 SMPTE-425M level A (mapping 1), level B*: 1080p59.94, 1080p50 Cable length (Belden 1694A): SD: 300m (984 ft.) at 270 Mb/s HD: 150m (492 ft.) at 1.5 Gb/s 100m (393 ft.) at 2.970 Gb/s Return loss: >15 dB up to 1.5 GHz... -
Page 33: Contact Us
GUIDE TO INSTALLATION AND OPERATION 7 Contact Us Grass Valley Technical Support For technical assistance, contact our international support center, at 1-800-547-8949 (US and Canada) or +1 530 478 4148. To obtain a local phone number for the support center nearest you, please consult the Contact Us section of Grass Valley’s website (www.grassvalley.com). -
Page 34: Annex - Local Menu
GUIDE TO INSTALLATION AND OPERATION ANNEX – Local Menu 1st level 2nd level 3rd level 4th level Comments / Default Value STATUS GENERAL REAR TYPE IPG-3901-3DRP SERIAL NUMBER XXXXXX-XXXXXXXX ETH1 LINK STATUS LINK UP LINK DOWN MAC ADDRESS 00:00:00:00:00:00 ETH2 LINK STATUS LINK UP LINK DOWN... - Page 35 GUIDE TO INSTALLATION AND OPERATION ETH2 IP ADDRESS 0.0.0.0 0.0.0.0 MASK 255.255.255.0 255.255.255.0 GATEWAY 0.0.0.0 0.0.0.0 SYSTEM SCAN RATE 50 / 25Hz 59.94 59.94 / 29.97Hz TEST PATTERN FORMAT 1080i 1080i 720p FORCE ALL Where [n] is: SDI IN 1, SDI IN 2, SDI IN/OUT 1 to 7, SDI OUT 1, SDI OUT 2.
