- Page 1 IPVU Compact IP Monitoring Gateway Installation Guide 13-03068-010-M00 AC 2020-07-08...
- Page 2 Belden Inc. or its affiliated companies in the United States and other jurisdictions. Grass Valley, IPVU, Kaleido, Grass Valley are trademarks or registered trademarks of Belden Inc., and other parties may also have trademark rights in other terms used herein.
- Page 3 IPVU Installation Guide Important Safety Information This section provides important safety guidelines for operators and service personnel. Specific warnings and cautions appear throughout the manual where they apply. Please read and follow this important information, especially those instructions related to the risk of electric shock or injury to persons.
- Page 4 Notices The presence of this symbol in or on Grass Valley equipment means that it has been tested and certified as complying with applicable Intertek Testing Services regulations and recommendations for USA/Canada. The presence of this symbol in or on Grass Valley product means that it complies with all applicable European Union (CE) directives.
- Page 5 IPVU Installation Guide Cautions A caution indicates a possible hazard to equipment that could result in equipment damage. Observe the following cautions when operating or working on this equipment: • This equipment is meant to be installed in a restricted access location. •...
- Page 6 Notices Mesures de sécurité et avis importants La présente section fournit des consignes de sécurité importantes pour les opérateurs et le personnel de service. Des avertissements ou mises en garde spécifiques figurent dans le manuel, dans les sections où ils s’appliquent. Prenez le temps de bien lire les consignes et assurez-vous de les respecter, en particulier celles qui sont destinées à...
- Page 7 IPVU Installation Guide La marque C-UL-US certifie que l’appareil visé a été testé par Underwriters Laboratory (UL) et reconnu conforme aux exigences applicables en matière de sécurité électrique en vigueur au Canada et aux États-Unis. La marque ETL Listed d’Intertek pour le marché Nord-Américain certifie que l’appareil visé...
- Page 8 Notices • Ne pas utiliser cet appareil dans une atmosphère explosive. • Présence possible de courants de fuite. Un raccordement à la masse est indispensable avant la mise sous tension. • Après tout travail d’entretien ou de réparation, faites effectuer des contrôles de sécurité par le personnel technique qualifié.
- Page 9 IPVU Installation Guide • Portez un bracelet antistatique et assurez-vous qu'il est bien en contact avec la peau. Connectez la pince de masse à une surface non peinte du châssis pour détourner à la terre toute tension électrostatique indésirable. En l’absence de bracelet antistatique, déchargez l’électricité...
- Page 10 Notices LASER SAFETY The average optical output power does not exceed 0 dBm (1mW) under normal operating conditions. Unused optical outputs should be covered to prevent direct exposure to the laser beam. Even though the power of these lasers is low, the beam should be treated with caution and common sense because it is intense and concentrated.
- Page 11 IPVU Installation Guide UL1419 (4 Edition) Standard for Safety – Professional Video and Audio equipment (UL file number E193966) EMC Standards This unit conforms to the following standards: EN55032:2015 (Class A) Electromagnetic Compatibility of multimedia equipment - Emission requirements EN61000-3-2:2014 (Class A) Electromagnetic Compatibility - Limits for harmonic current emissions EN61000-3-3:2013 Electromagnetic Compatibility - Limits of voltage changes, voltage fluctuations and flicker...
- Page 12 SFP+ type ports; and fit 75 Ώ RF terminators to BNC type ports. COAXIAL CABLES Coaxial cables connections (particularly serial digital video connections) shall be made with high-quality double-screened coaxial cables such as Belden 8281 or BBC type PSF1/2M and Belden 1694A (for 3Gbps). D-TYPE CONNECTORS D-type connectors shall have metal shells making good RF contact with the cable screen.
-
Page 13: Table Of Contents
Table of Contents 1 Introduction ............17 Overview. - Page 14 Table of Contents IPVU Mounting Orientation for a Wall-Mounted Monitor ........42 Mounting an IPVU onto a VESA 75mm or 100mm Stand-Mounted Monitor .
- Page 15 IPVU Installation Guide Setup ................... . . 97 Restart .
- Page 16 Table of Contents...
-
Page 17: Introduction

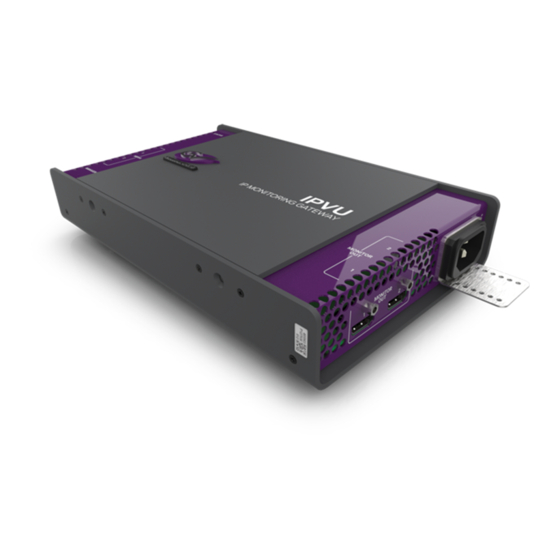

Introduction Overview The IPVU is a compact dual channel IP to HDMI converter that’s perfect for displaying IP sources and multiviewer’s IP outputs on HD and UHD monitors with an HDMI input. The IPVU can be installed on a rack shelf or mounted behind the display, and provides the missing link to view any IP source, or to connect an IP multiviewer’s output to its display. -
Page 18: Benefits
Introduction Benefits Benefits • Dual channel to optimize switch port bandwidth usage. • Low processing latency for critical monitoring applications. • In-band or out-of-band control for more flexibility. • Clean switch between two IP sources with no video loss (make before break or freeze frame). -
Page 19: Related Documentation
IPVU Installation Guide Related Documentation The following related documentation is available. You can obtain the latest product documentation from the Documentation Library section of Grass Valley’s website. Document Number Title 13-03068-010-M00 IPVU Installation Guide (this document) 13-03068-030-M00 IPVU Release Notes 13-03068-020-M00 IPVU Documentation Resource Guide RollCall V4 Suite &... -
Page 20: Unpacking
Introduction Unpacking See Unpacking, on page 20 for the shipping box contents. Unpacking Unpack the IPVU. The kit should contain the following items. If anything is missing, contact your distributor or Grass Valley (see Grass Valley Technical Support, on page 116). Supplied with the IPVU Supplied HD and... -
Page 21: Available Accessories
IPVU Installation Guide Available Accessories The following optional accessories are available. Model Description IPVU-TRAY 19” rack mount shelf for 1 RU rack installation of up to three IPVUs. IPVU-MOUNTING- Mounting kit for attaching the IPVU to the back of a display or a wall. Works with VESA 75/100 and large LCD mounting brackets. -
Page 22: Field-Replaceable Units
Introduction Field-Replaceable Units Without SMPTE 2022-7 With SMPTE 2022-7 IPVU Video Network Required SFP Network Required SFP Output Streams Bandwidth Cartridge Bandwidth (total) Cartridges 1 UHD & 1 HD 15 Gb 1 25 Gb or 2 25 Gb 30 Gb 2 ... -
Page 23: Ipvu-Tray Mechanical Dimensions
IPVU Installation Guide IPVU-TRAY Mechanical Dimensions The following diagram shows the IPVU-TRAY’s physical dimensions. Top View 14.0 [353.8] Side View 19 Inch Rack: 18.95 [481.3] 18.312 [465.12] 1 RU: 1.72 [43.6] Front View inches [millimeters] Fig. 1-3: IPVU-TRAY dimensions IPVU-MOUNTING-KIT Mechanical Dimensions The following diagrams shows the IPVU-MOUNTING-KIT’s physical dimensions. -
Page 24: Mounting On A Wall Or Under A Table Top
Introduction Mounting on a Wall or Under a Table Top Mounting on a Wall or Under a Table Top The bracket of the IPVU-MOUNTING-KIT can be attached to a hard surface with screw fasteners. 6.69 [76.2] [170] [53.4] Top View 7.31 [185.7] End View 5.62 [142.8]... -
Page 25: Mounting With A Wall-Mounted Monitor
IPVU Installation Guide Mounting with a Wall-Mounted Monitor The bracket of the IPVU-MOUNTING-KIT can be attached to the wall mount support of a monitor that is 32 inches diagonal or larger. 6.69 [170] Top View End View 10.08 [256.2] 1.69 [42.9] 2.77 [70.5] 5.62 [142.7] 2.38... -
Page 26: Mounting Onto A Vesa 75Mm Or 100Mm Stand-Mounted Monitor
Introduction Mounting onto a VESA 75mm or 100mm Stand-Mounted Monitor Mounting onto a VESA 75mm or 100mm Stand-Mounted Monitor The bracket of the IPVU-MOUNTING-KIT can be attached to a VESA 75mm or 100mm monitor stand of a monitor that is 31 inches or smaller. 4.5 [114.3] VESA VESA... -
Page 27: Connections And Cabling
Connections and Cabling Cabling Diagrams The IPVU is intended to be used in close proximity to the monitor, using a 6 foot or shorter cable between the IPVU and the monitor. The following figure shows the typical connections for an IPVU. AC Outlet Multimode MEDIA 1... - Page 28 Connections and Cabling Cabling to Support SMPTE 2022-7 with an IPVU is seamless because switching between the streams is instantaneous and does not impact content. Media Network Switch ‘Red’ Media Red IPVU A MEDIA 1 Kahuna Kaleido-IP A MEDIA 2 IPVU B Kaleido-IP B Camera...
-
Page 29: Electrical Connections, Reset Pushbutton, And Status Indicators
IPVU Installation Guide PREREQUISITES: • At least two DCNM-compliant switches must be used for this application. Contact Grass Valley for more information about switch compatibility. See Grass Valley Technical Support, on page 116. • For the IPVU, in Rollcall’s Spigot panel, Primary / Secondary tab, make sure to change the Flow Type from None to 2110-20. -
Page 30: Status Indicator Interpretation
Connections and Cabling Status Indicator Interpretation Status Indicator Interpretation Status Indicator This shows the overall health of the IPVU. Status Indicator Color Interpretation Solid green IPVU is in a normal state. Solid red IPVU is starting up. SFP Cartridge 1 & 2 Status Indicators This shows the health of the media Ethernet link to the switch. -
Page 31: Locking Monitor Outputs
IPVU Installation Guide Locking Monitor Outputs The IPVU monitor outputs are equipped with two 4-40 UNC thread standoff nuts, to be used with locking cables. 4-40 UNC thread standoff nut 7.975 mm IPVU Monitor Output Jack (Type A) IPVU Fig. 2-4: Monitor outputs: the required distance between the screw lock pin and connector Screw-lock connectors can optionally be used with the IPVU’s monitor outputs when the spacing between the screw lock pin and the connector, as shown in the above diagram, is met. - Page 32 Connections and Cabling Locking Monitor Outputs...
-
Page 33: Installation
I nstallation Fiber Optic Handling CAUTION Never assume a fiber is dark. Never look directly into the end of a fiber cable. All employees in the area must wear laser safety glasses with side shields. Installing connectors on a fiber requires special handling procedures. Read and follow the fiber and connector manufacturer’s instructions. -
Page 34: Mounting Options
Installation Mounting Options Mounting Options Optional mounting kits are available to mount the IPVU as follows. Mounting Method Required mounting kit Description 1 RU 19” Rack IPVU-TRAY 19” rack mount shelf for 1 RU rack Installing IPVUs in a 19” Rack, installation of up to three IPVUs. -
Page 35: Mounting An Ipvu On A Wall Or Under A Table Top
IPVU Installation Guide To install the IPVU-TRAY mounting kit in a 19” rack 1 Install the IPVU-TRAY shelf into the rack. Use the four supplied rack screws to attach the shelf to the rack. 2 From the rear of the rack, pull through the power and monitor cables required for each space in the shelf where each IPVU is to be installed. - Page 36 Installation Mounting an IPVU on a Wall or Under a Table Top When mounting the IPVU on a wall behind a monitor, operate the monitor for 30 minutes and then feel the rear housing with your hand. Avoid mounting the IPVU behind the monitor in areas where the monitor is warm to the touch and above these warm spots.
- Page 37 IPVU Installation Guide The l IPVU-MOUNTING-KIT’s screw hole locations are shown below. Screw Hole Locations 4 IPVU-MOUNTING-KIT Bracket Front View Fig. 3-5: Screw hole locations for wall mounting the IPVU-MOUNTING-KIT To install the IPVU-MOUNTING-KIT on a wall or under a table top 1 Identify the screw hole locations on the IPVU-MOUNTING-KIT bracket.
-
Page 38: Installing The Ipvu Into The Ipvu-Mounting-Kit
Installation Installing the IPVU into the IPVU-MOUNTING-KIT Installing the IPVU into the IPVU-MOUNTING-KIT The IPVU is attached to the IPVU-MOUNTING-KIT with two thumbscrews as shown below. Side View IPVU Threaded Mounting Holes IPVU IPVU-MOUNTING-KIT Bracket Thumbscrews End View Fig. -
Page 39: Mounting An Ipvu With A Wall-Mounted Monitor
IPVU Installation Guide Mounting an IPVU with a Wall-Mounted Monitor The IPVU-MOUNTING-KIT can be used with a wall mounted monitor that is 32 inches diagonal or larger. IPVU IPVU-MOUNTING-KIT Standard Wall-Mount Bracket Rear of Monitor (looking into room) NOTE: The wall has been removed for clarity Fig. - Page 40 Installation Mounting an IPVU with a Wall-Mounted Monitor 1 Use two screws to assemble the IPVU-MOUNTING-KIT as shown below. Set the IPVU’s mounting orientation; see IPVU Mounting Orientation for a Wall-Mounted Monitor, on page 42. IPVU-MOUNTING-KIT Clamp IPVU Side View IPVU-MOUNTING-KIT Components Note: Set the Mounting Orientation Fig.
- Page 41 IPVU Installation Guide 5 Slide the IPVU-MOUNTING-KIT down between the wall-mount bracket and the monitor (as shown in Figure 3-12) until the lower IPVU-MOUNTING-KIT slot aligns with the Wall- Mount Bracket’s screw location. Using the lower IPVU-MOUNTING-KIT slot provides better leverage to support the IPVU’s weight. Always use the lower IPVU- MOUNTING-KIT...
-
Page 42: Ipvu Mounting Orientation For A Wall-Mounted Monitor
Installation IPVU Mounting Orientation for a Wall-Mounted Monitor 7 Snug the IPVU-MOUNTING-KIT’s clamp up to the wall-mount bracket’s arm and tighten the thumbscrew to further support the IPVU. 8 Install the IPVU into the IPVU-MOUNTING-KIT bracket. See Installing the IPVU into the IPVU-MOUNTING-KIT, on page 38. -
Page 43: Mounting An Ipvu Onto A Vesa 75Mm Or 100Mm Stand-Mounted Monitor
IPVU Installation Guide Mounting an IPVU onto a VESA 75mm or 100mm Stand-Mounted Monitor The IPVU-MOUNTING-KIT can be used with a VESA 75mm or 100mm stand-mounted monitor that is 31 inches or smaller. Fig. 3-14: IPVU-MOUNTING-KIT for VESA stand-mounted monitors When mounting the IPVU behind a monitor, operate the monitor for 30 minutes and then feel the rear housing with your hand. - Page 44 Installation Mounting an IPVU onto a VESA 75mm or 100mm Stand-Mounted Monitor To install an IPVU with a VESA-Mount Monitor This procedure assumes that the monitor has already been attached to a VESA mount monitor stand. 1 Use two screws to assemble the IPVU-MOUNTING-KIT as shown below. Set the IPVU’s mounting orientation;...
- Page 45 IPVU Installation Guide 3 Sandwich the IPVU-MOUNTING-KIT between the monitor and the VESA mount monitor stand. IPVU-MOUNTING-KIT Bracket IPVU End View Fig. 3-17: Attaching the IPVU-MOUNTING-KIT to the VESA mount monitor stand 4 Replace the four screws that attach the monitor to the VESA mount monitor stand. 5 Install the IPVU into the IPVU-MOUNTING-KIT bracket.
-
Page 46: Ipvu Mounting Orientation For A Stand-Mounted Monitor
Installation IPVU Mounting Orientation for a Stand-Mounted Monitor IPVU Mounting Orientation for a Stand-Mounted Monitor The IPVU can be attached to the IPVU-MOUNTING-KIT bracket in either of two Perpendicular orientations. This choice is made during the assembly of the IPVU-MOUNTING-KIT bracket by choosing the appropriate set of attachment points, as shown below. -
Page 47: Securing The Ipvu-Mounting-Kit With Fastener Points
IPVU Installation Guide Securing the IPVU-MOUNTING-KIT with Fastener Points If none of the previous IPVU-MOUNTING-KIT mounting methods work, you can use the IPVU-MOUNTING-KIT’s fastener points to secure the IPVU in place with nylon cable ties. These same fastener points can also be used to secure cables in place for any installation where the IPVU-MOUNTING-KIT is used (see Figure 3-20). -
Page 48: Connecting The Ipvu
Installation Connecting the IPVU Connecting the IPVU Use field-supplied OM4 Multimode Fiber (MMF) single fiber optical cable fitted with SC connectors with the IPVU. For an installation overview, see Cabling Diagrams, on page 27. Proceed as follows: 1 Insert the SFP cartridge(s) into the IPVU: see Installing the SFP Ethernet Module, on page 113. - Page 49 IPVU Installation Guide 3 Connect the management network to the IPVU: connect the Cat5 cable from the management switch to the IPVU’s MANAGEMENT port. Cat5 Cable with RJ-45 Connector 4 Connect a standard monitor cable with type A connectors to the IPVU’s MONITOR OUT 1 port.
- Page 50 Installation Connecting the IPVU 6 Connect a IEC 60320 C13 power cord to the IPVU’s AC input port. Plug the other end into an AC outlet (mains). Ensure the STATUS indicator lights up. Should you disconnect power from the IPVU, see Power Cycling an IPVU, on page 101.
- Page 51 IPVU Installation Guide 8 Use field-supplied nylon cable ties to bundle up excess cable lengths and to make a clean installation. The IPVU-MOUNTING-KIT has four fastener points that can be used to secure cables in place (see also Securing the IPVU-MOUNTING-KIT with Fastener Points, on page 47).
- Page 52 Installation Connecting the IPVU...
-
Page 53: Ipvu Commissioning And Configuration
IPVU Commissioning and Configuration IPVU Commissioning and Configuration is done with RollCall software. Factory Default IP Address and Network Port Usage The factory default management IP address for the IPVU is 192.168.3.31. To set the IP configuration, see Ethernet Gb, on page 98. Certain ports must be open on the management network. -
Page 54: Navigating Pages In The Rollcall Template
IPVU Commissioning and Configuration Navigating Pages in the RollCall Template Navigating Pages in the RollCall Template The RollCall template has a number of pages, each of which can be selected from the drop- down list at the top left of the display area. Right-clicking anywhere on the pages will also open a page view list, allowing quick access to any of the pages. -
Page 55: Setting Values
IPVU Installation Guide • Setup, on page 97. • Ethernet Gb, on page 98. • Interop, on page 99. • Configuration, on page 100. Setting Values Many of the settings within the templates have values, either alpha or numeric. When setting a value in a field, the value, whether text or a number, must be set by pressing the Enter key, or clicking the Save Value button. -
Page 56: Ipvu
IPVU Commissioning and Configuration IPVU IPVU The IPVU page allows basic parameters to be set. Fig. 4-3: IPVU Configuration Page Parameter Description Frame Rate Set the system frame rate frequency. Frame Rate Consistency Show if there is a missmatch between the incoming video stream and the system frame rate. -
Page 57: Configuring 4K Uhd Two-Sample Interleave Division For Use With An Ipvu Device
IPVU Installation Guide Parameter Description Enables UHDTV format support: single Image with payload up Enable UHD to12 Gb/s, carried on 4 links. When enabled, set the UHD Mode above. This option logically links the four streams together so that they are switched together at once ensuring that there is no switching delay between the streams that would create visible glitches. -
Page 58: Configuring The Stream Inputs For Use With 4K Uhd Sqd
IPVU Commissioning and Configuration Configuring the Stream Inputs for use with 4K UHD SQD To configure a 4K UHD Two-Sample Interleave Division for a monitor output 1 Open the IPVU page. See IPVU, on page 56. 2 For the Monitor Output 1 and 2 that is to show 4K UHD, set Enable UHD. 3 For the Monitor Output 1 and 2 that is to show 4K UHD, set UHD Mode to 2SI. -
Page 59: Configuring Hdr
IPVU Installation Guide 3 For the Monitor Output 1 and 2 that is to show 4K UHD, set UHD Mode to SQD. UHD enabled becomes enabled and UDH status becomes OK. Configuring HDR The HDR parameter determines which HDR standard should be used by each of the IPVU’s MONITOR OUTPUT heads to interpret the input signal’s format. - Page 60 IPVU Commissioning and Configuration Configuring HDR Parameter Description Gamut Set the gamut correction transfer functions for the input signal: • BT.709: the input video signal’s color gamut meets the Rec. 709 standard. • BT.2020: the input video signal’s color gamut meets the Rec. 2020 standard.
-
Page 61: Configuration
IPVU Installation Guide Configuration The Configuration page allows basic IPVU parameters to be set. Fig. 4-4: Configuration Page Parameter Description Genlock Select Genlock type: • Network - use the network's PTP clock. • Freerun - Card is using its own clock with no reference to any other source. - Page 62 IPVU Commissioning and Configuration Configuration Parameter Description Domain RollCall+ uses domains to partition a network; only nodes on the same domain can communicate with one another. A domain is uniquely identified with a number and a friendly name/alias. Set an ID as required, then press Take to confirm the change. Interface Configuration Displays the IP address for each of the Ethernet interfaces.
-
Page 63: Time Sync Configuration
IPVU Installation Guide Time Sync Configuration The Time Sync Configuration page allows selection of the source to be used for synchronizing flows, and configuration of any properties associated with the relevant source. Fig. 4-5: Time Sync Configuration Page Parameter Description Time Sync Mode Click a radio button to select the required mode. -
Page 64: Status
IPVU Commissioning and Configuration Status Status When the Show Status checkbox is set (see above), this displays important system status information in a single convenient panel. Fig. 4-6: Time Sync Status Parameter Description Reset Counters Clear the accumulated data. Next Interface Cycle through the available Ethernet interface. -
Page 65: Histogram
IPVU Installation Guide Histogram When the Show Status checkbox is set (see above), located to the right of the Status panel, the Histogram provides a graphical representation of the distribution of differences between the card's clock and the PTP grandmaster clock. Every time the clock difference is recalculated, the relevant bar is incremented. -
Page 66: Counters
IPVU Commissioning and Configuration Counters The following options are available for each spigot: Parameter Description TPG Enable Display a test pattern at MONITOR OUT 1 / 2. represents the IPVU’s MONITOR OUT 1 connection and Spigot 1 represents the IPVU’s MONITOR OUT 2 connection. See Spigot 5 Electrical Connections, Reset Pushbutton, and Status Indicators on page 29... -
Page 67: Fec
IPVU Installation Guide The FEC page allows FEC Clause 74 to be selected and FEC logging to be activated, if required. FEC stats are also available. Fig. 4-10: FEC Page SFP 1 represents the IPVU’s MEDIA 1 connection and SFP 2 represents the IPVU’s MEDIA 2 connection. -
Page 68: Nmos
IPVU Commissioning and Configuration NMOS Log Field Description FEC CORRECTED Number of corrected errors for FEC N. ERRORS FEC UNCORRECTED Number of uncorrected errors for FEC N. ERRORS Where N is the SFP number. NMOS The NMOS page allows various NMOS parameters to be adjusted, allowing the IPVU to inter-operate with other equipment through an NMOS registry. - Page 69 IPVU Installation Guide Parameter Description Mode Set the NMOS operating mode: OFF: disable NMOS. This is the default. IS-04: enable the Networked Media Open Specifications (NMOS) IS- 04 v1.2 or higher for device discovery and registration. Receivers are updated as a result. IS-04 &...
-
Page 70: Ethernet Pages 1 And 2
IPVU Commissioning and Configuration Ethernet Pages 1 and 2 Parameter Description Static / Querry Port Set the NMOS registry’s query port number when the Registry Mode is Static. The default Query Port value is 3211. Restart Click to apply your new settings. Ethernet Pages 1 and 2 Note: Ethernet pages 1 &... -
Page 71: Switch Lldp Info
IPVU Installation Guide Clear Link Change Count If the state of the Ethernet link changes, the Link Change Count and Link Change Time fields are updated. Click Clear Link Change Count to reset the Link Change Count to zero. Switch LLDP Info Displays LLDP information received from the switch that the IPVU is connected to. -
Page 72: Ethernet Rtp Receiver Video Stats
IPVU Commissioning and Configuration Ethernet RTP Receiver Video Stats Ethernet RTP Receiver Video Stats The Ethernet RTP Receiver Video Stats page displays information on the data received via RTP on each Ethernet input. Units are megabits per second. Click Enable Stats to display values;... -
Page 73: Ethernet Rtp Receiver Audio Stats
IPVU Installation Guide Ethernet RTP Receiver Audio Stats The Ethernet RTP Receiver Audio Stats page displays information on the data received via RTP on each Ethernet input. Units are megabits per second. Click Enable Stats to display values; click Clear All RTP Counts to zero RTP Discontinuity counters for each Ethernet input. -
Page 74: Audio V Fade
IPVU Commissioning and Configuration Audio V Fade Audio V Fade The Audio V Fade template configures an audio V-fade for each video input IP stream (for example, at receiving, destination spigots). When the video input switches to another, an audio V-fade can be used to reduced audio disturbances at the switch-over. Fig. -
Page 75: Spigot 1 To 8
IPVU Installation Guide Spigot 1 to 8 Spigot use According to IPVU Output Resolution An IPVU device has 8 input spigots. They are used according to the IPVU’s output resolution. Input Spigot Number HD Output Description 4K UHD Output Description Spigot1 Stream input for Monitor input... -
Page 76: Spigot Page Overview
IPVU Commissioning and Configuration Spigot Page Overview Spigot Page Overview A separate page is provided for each of the active output spigots, Spogot1 to Spigot8. Fig. 4-18: Typical Output Spigot Page Parameter Description The Spigot pane provides basic configuration for the selected Spigot. Spigot pane Click Take to apply any changes made in this pane. - Page 77 IPVU Installation Guide Parameter Description Streaming Set the Ethernet connectors to use for this spigot. This will also determine the bandwidth to be used. Options are: • Dual: Full redundancy to support SMPTE ST 2022-7, both Primary (SFP1) and Secondary (SFP2) Ethernet connectors are used. All bandwith of both Ethernet connectors are used.
- Page 78 IPVU Commissioning and Configuration Spigot Page Overview Parameter Description Primary and Secondary Panes Flow Panes for Displays Video and Audio status, and allows multicast IP and port Video and Audio details to be defined for the selected spigot. To set multicast details for the spigot: •...
-
Page 79: Logging - Configuration
IPVU Installation Guide Logging - Configuration The Logging Configuration page sets the destination logging server, if required. Figure 4 - 19: Logging Configuration Page Parameter Description Logging Set the connection type to the log server. Named LogServer: Specify the specific name of the log server to use for logging. -
Page 80: Logging - System
IPVU Commissioning and Configuration Logging - System Logging - System Information on several parameters can be made available to a logging device connected to the RollCall network. Logging must be configured and enabled; see Logging - Configuration, on page 79. Fig. - Page 81 IPVU Installation Guide Log Field Parameter Description HARDWARE_MOD= Logs the hardware modification number. FIRMWARE_VERSION= Logs the FPGA version number. UPTIME= Logs the time since the last restart in the format ddd:hh:mm:ss. RC_UPTIME= Logs time RollCall has been up in the format ddd:hh:mm:ss.
- Page 82 IPVU Commissioning and Configuration Logging - System Log Field Parameter Description TIMESYNC_N_AVG_DELAY= Logs the current network delay time between the card and the clock sending the synchronization messages. This should be relatively constant and is dependent on network configuration. TIMESYNC_N_STDV_DELAY= Logs the current standard deviation in the network delay time between the card and the clock sending the synchronization messages.
-
Page 83: Logging - Network
IPVU Installation Guide Logging - Network Information on several parameters can be made available to a logging device connected to the RollCall network. Logging must be configured and enabled; see Logging - Configuration, on page 79. Fig. 4-21: Logging - Network Page Ethernet 1 represents the IPVU’s MEDIA 1 connection and Ethernet 2 represents the IPVU’s MEDIA 2 connection. - Page 84 IPVU Commissioning and Configuration Logging - Network Enable check boxes to activate log fields as required. Parameter Description LAN_PORT_N_NAME= Logs the Ethernet port name. LAN_PORT_N_SPEED= Logs the Ethernet connection speed. Valid values are: • 10 Mbit/s Full Duplex • 10 Mbit/s Half Duplex •...
- Page 85 IPVU Installation Guide Parameter Description LAN_PORT_N_MAC_LINK_STATE= Logs state of the card’s FPGA Ethernet link. Valid values are: • UP • DOWN LAN_PORT_N_SWITCH_NAME= Logs name of the network switch that the card is connected to. LAN_PORT_N_SWITCH_CHASSIS_ID= Logs name of the network switch’s chassis ID that the card is connected to.
-
Page 86: Logging - Network - 1G
IPVU Commissioning and Configuration Logging - Network - 1G Logging - Network - 1G Information on several parameters can be made available to a logging device connected to the RollCall network. Logging must be configured and enabled; see Logging - Configuration, on page 79. - Page 87 IPVU Installation Guide Parameter Description LAN_PORT_N_IPADDRESS= Logs the Ethernet port IP address. LAN_PORT_N_MACADDRESS= Logs the Ethernet port MAC address. LAN_PORT_N_STATE= Logs the Ethernet connection state. Valid values are: • Active • WARN:Inactive LAN_PORT_N_TRAFFIC_IN= Logs speed of traffic received by the Ethernet port. Values are reported in kbps, Mbps or Gbps, as appropriate.
-
Page 88: Logging - Sfp
IPVU Commissioning and Configuration Logging - SFP Logging - SFP Information on several parameters can be made available to a logging device connected to the RollCall network. Logging must be configured and enabled; see Logging - Configuration, on page 79. Figure 4 - 23: Logging - SFP Page The logging page comprises three columns for each SFP: Logging Page... - Page 89 IPVU Installation Guide Parameter Description SFP_N_STATUS= Logs status reported by the (Q)SFP. Valid values are: SFPs • OK • WARN:Temp • WARN:VCC • WARN:TX BIAS • WARN:RX BIAS • WARN:Laser • WARN:TEC Curr • FAIL:SFP Not Ready • FAIL:RX LOS - RX Failure •...
- Page 90 IPVU Commissioning and Configuration Logging - SFP Parameter Description SFP_N_X_LASER_BIAS= Logs bias level in mA. SFP_N_X_TX_POWER= Logs transmit power level in dBm. SFP_N_X_TX_POWER_STATE Logs transmit power level. Valid values are: • OK • WARN:Low - Low, but in tolerance. • WARN:High - High, but in tolerance. •...
-
Page 91: Logging - Fpga
IPVU Installation Guide Logging - FPGA Information on several parameters can be made available to a logging device connected to the RollCall network. Logging must be configured and enabled; see Logging - Configuration, on page 79. Figure 4 - 24: Logging - FPGA Page The logging page comprises three columns: Logging Page Column... -
Page 92: Logging - Spigot 1 To 8
IPVU Commissioning and Configuration Logging - Spigot 1 to 8 Logging - Spigot 1 to 8 The Logging - Spigot pages are used to select the fields to be enabled for each available spigot. To identify the application of each spigot, see Spigot use According to IPVU Output Resolution, on page 75. -
Page 93: Logging - Nmos
IPVU Installation Guide Parameter Description OUTPUT_N_TYPE= Valid values are: • SD SDI • HD SDI • HD/SD/3G SDI OUTPUT_N_STANDARD PAL/NTSC/625 Mono/525 Mono OUTPUT_N_MAKE_BREA Logs how changes to an output’s destination will be made. • MBB: Make before Break causes the new destination to buffer data before connection to the previous destination is broken;... - Page 94 IPVU Commissioning and Configuration Logging - NMOS Parameter Description NMOS_STATUS= The current IPVU’s NMOS registry connection status. When the NMOS node registers successfully to NMOS registry service, the status shows a message indicating that it has registered to the IP address, registry port number, and query port number of that NMOS registry service.
-
Page 95: Logging - Card Diagnostics
IPVU Installation Guide Logging - Card Diagnostics Information on several parameters can be made available to a logging device connected to the RollCall network. Logging must be configured and enabled; see Logging - Configuration, on page 79. Figure 4 - 27: Logging - Card Diagnostics Page The logging page comprises three columns: Logging Page Column... - Page 96 IPVU Commissioning and Configuration Logging - Card Diagnostics Parameter Description PWRSAFE_MEMORY_RESTORE Logs where system memory was restored from. Valid values are: • FAT32 - restored from FAT32. • OK - restored from QNX6 PowerSafe. • FAIL - memory restoration failed. PMIC_VERSION= Logs name of the on-board power management chip.
-
Page 97: Setup
IPVU Installation Guide Setup The Setup page displays basic information about the IPVU, such as the serial number and software version. Use the functions on the page to restart the IPVU or to return all settings to their factory or default settings. Fig. -
Page 98: Defaults
IPVU Commissioning and Configuration Defaults Defaults Provides options to reset the IPVU to its defaults. Parameter Description Default settings All controls are reset to their default values, except for network configuration and IP addresses. Factory defaults All controls are reset to their default values, including network configuration and IP addresses. -
Page 99: Interop
IPVU Installation Guide Interop The Interop page allows certain parameters to be changed in order to improve interoperability with third-party equipment. Fig. 4-30: Interop Page Parameter Description Stream Synchronization Audio: Controls • Extended Headers - Enable to use extended headers in the RTP audio stream. -
Page 100: Sfp Configuration
IPVU Commissioning and Configuration SFP Configuration SFP Configuration The SFP Configuration page allows various SFP parameters to be adjusted, if required. Fig. 4-31: SFP Configuration Page The majority of SFPs will operate correctly with IPVU without any need for adjustment. Some, however, may need to have IPVU parameters set a little differently. -
Page 101: Maintenance & Troubleshooting
Maintenance & Troubleshooting This chapter shows you the various maintenance operations and corrective actions that maybe required to be performed during system commissioning and over the IPVU’s lifetime. Maintenance Power Cycling an IPVU When power cycling the IPVU, disconnect the power from the IPVU for at least 5 seconds before reconnecting power again. -
Page 102: Upgrading The Ipvu's Firmware
Maintenance & Troubleshooting Upgrading the IPVU’s Firmware Upgrading the IPVU’s Firmware The following is required to proceed: • A Microsoft Windows PC that: • has Internet connectivity. • has network connectivity with the IPVU. • has RollCall software installed. • IPVU firmware files. A firmware upgrade package is supplied by Grass Valley Support and comprises a set of data and installer files. - Page 103 IPVU Installation Guide 3 Click the Import Upgrade Package button. Fig. 5-4: Select Upgrade Package 4 Browse to the folder containing the upgrade package. 5 Select the upgrade package and click OK. When the package has been imported, it is added to the list of available upgrades, and units may be upgraded accordingly.
- Page 104 Maintenance & Troubleshooting Upgrading the IPVU’s Firmware 2 Click on Unit Upgrade from the unit menu. The Unit Upgrade dialog displays. Fig. 5-6: Unit Upgrade Dialog The following parameters and options are available: • Unit - This panel displays the unit address, serial number, and hardware version (if available).
- Page 105 IPVU Installation Guide main toolbar. See To add/import the upgrade package to RollCall Control Panel, on page 102. • Release Notes - If release notes are available, clicking this button displays them. If release notes are not available, this button is not displayed. •...
-
Page 106: Troubleshooting
Maintenance & Troubleshooting Troubleshooting 1 In RollCall, right-click IPVU and select Delete Cache. Fig. 5-7: IPVU Menu 2 Close and restart RollCall. Troubleshooting Following a methodical process of elimination, try the following steps. 1 Are you using the latest IPVU firmware? To upgrade an IPVU’s firmware, see Firmware Upgrade, on page 53. -
Page 107: Keep Fiber Connections Clean
IPVU Installation Guide Further troubleshooting. Problem Possible solutions… Screen is not displayed, but Make sure the monitor supports the resolution used by the status LED is green IPVU. If your monitor supports it, turn the automatic resolution detection on. Make sure the display is turned on. Test the monitor by feeding it a signal from another source. - Page 108 Maintenance & Troubleshooting Keep Fiber Connections Clean There are a variety of cleaning solutions available to help the fiber user maintain good fiber network performance. For best results, it should be possible for the user to perform a visual inspection of the fiber ends to verify cleanliness. Grass Valley strongly urges all users to select a cleaning method that meets their needs, and to use it rigorously and consistently.
-
Page 109: Specifications
Specifications Status LEDs Electrical Connections, Reset Pushbutton, and Status Indicators, on page 29. Inputs & Outputs MEDIA 1 & 2 Ports 2 SFP28 Ethernet cartridge slots Physical Supported SFP28 Supported MEDIA Port SFP28 Cartridges, on page 20 cartridges Speed 10 or 25 GbE Ethernet IEEE 802.3-2008 10 GigE... -
Page 110: Ip Channel Inputs
Specifications IP Channel Inputs IP Channel Inputs Channels Video 2160p59.94, 2160p50 2-SI quad flow 2160p59.94, 2160p50 SDQS quad flow 2160p59.94, 2160p50 single raster 1080p59.94, 1080p50 1080i59.94, 1080i50 720p59.94, 720p50 Audio Single stream per MEDIA output connection Up to 32 channels, only the first 8 are available for use per MEDIA output connection, 125us to 4ms Processing delay <... -
Page 111: Status Indicators
IPVU Installation Guide Maximum 60 VA Current 0.6 to 0.25 Amps Socket IEC 60320 C14 Power cord connector IEC 60320 C13 Power cord length 6 foot (1.8M) cable Status Indicators Status Indicator Interpretation, on page 30. Environmental Weight IPVU 2.0lb (930g) Dimensions IPVU Mechanical Dimensions, on page 22... - Page 112 Specifications Compliance...
-
Page 113: Appendix A Installing The Sfp Ethernet Module
Installing the SFP Ethernet Module Introduction Installing and removing the SFP output interface cartridge requires special care. This annex describes the process. Rear panels incorporate one or two SFP interface(s). The interface consists of two parts: • A socket on the rear panel into which an SFP interface module is plugged •... -
Page 114: Connecting The Fiber Optic Cables
Installing the SFP Ethernet Module Connecting the fiber optic cables 3 Slide the module straight into the socket, and push gently until it clicks into position. Connecting the fiber optic cables 1 Remove the dust plug from the SFP module if present 2 Verify that the exposed end of the optical fiber in the LC connector is clean •... - Page 115 KMX-4911 / KMX-4921 Installation & Service Manual Bale Clasp 2 Grasp the SFP module between your thumb and forefinger, and pull it straight out of the slot. • Do NOT pull on the bale clasp lever to remove the module, as it is easily damaged. •...
- Page 116 Contact Us Grass Valley Technical Support For technical assistance, contact our international support center, at 1-800-547-8949 (US and Canada) or +1 530 478 4148. To obtain a local phone number for the support center nearest you, please consult the Contact Us section of Grass Valley’s website ( www.grassvalley.com ). An online form for e-mail contact is also available from the website.
