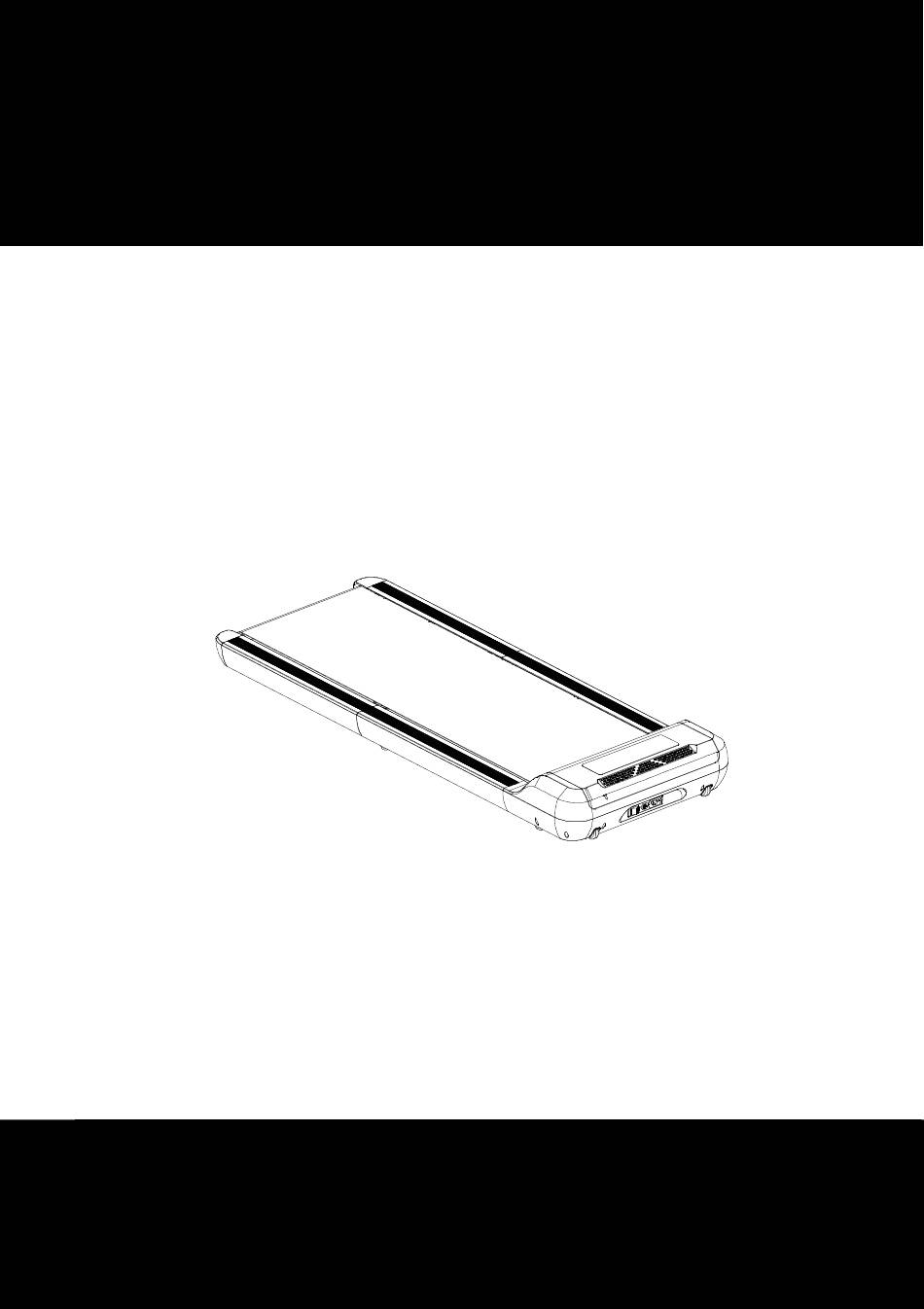

- Page 1 Owner’s Manual Retain this owner’s manual for future reference Read and follow all instructions in this owner’s manual Version A...
-
Page 2: Safety Precaution
THANKYOU Thanks for purchasing this product .The product will help you keep fitter, healthier and better in a very easy way. User Guide 1. Always connect the power plug to a socket with a grounded circuit and the socket must have a special circuit to avoid sharing with other electrical equipment. - Page 3 ◆ Stop running if any discomfort and consult the doctor. ◆ Reserve the silicon bottle to some place that children can not reach, to avoid serious mistake. ◆ Prohibit the user jumping off the treadmill directly after use. ◆ Pull out the power plug gently from the socket. ◆...
- Page 4 professional doctor. （1）The person with backache or used to get hurt in the leg ,waist ,neck . Those with numbness of legs, waist, neck and hands ( those with chronic diseases such as inter-vertebral disc protrusion, spinal slip, cervical vertebra protrusion, etc. ) （2）The patient with deformational arthritis , rheumatism or gout .
- Page 5 ◆ stop use this product when the cover cracked (inner parts come out) or welded parts drop off. -may cause danger or injury. ◆ Do not jump up or down from the treadmill when running. - may fall down and get injury. ◆...
- Page 6 unspecific users. - may cause injury. ◆ Do not use the product while you are having meals or doing other activities. ◆ Do not use the product when you feel the body become slow after drink. - may cause accident or injury. ◆...
- Page 7 ◆ the product must have grounded connection. The grounded connection can provide a channel with least resistance for the current when the product is malfunction, thus can reduce the danger of electric shock. ◆ the product is equipped with electric wire for grounding conductor and grounding plug.
-
Page 8: Exploded Drawing
Exploded drawing... -
Page 9: Spare Part List
Spare part list Description Description Base frame(front) Cross groove screw ST4×10 Motor Hex self-locking nut M8 Front roller Flat washer D10 Belt Spring washer D10 Magnetic ring Spring washer D5 Wheel Cross groove screw ST4×30 Running deck sticker 个 Power cord (red) PVC washer 个... - Page 10 Inner hexagon bolt M8×15 Cross - groove bolt M4×10 Cross groove screw ST4×15 Cross groove screw ST3×10 Treadmill brief instruction Cover Side rail Running belt Monitor Motor cover (top) Motor cover (bottom) Technical information Fold: 910*625*165 Dimension Unfold: 1515*625*165 1300*440 Running surface 0.5-6km/h Speed...
-
Page 11: Packing List
Packing list Treadmill User T shape manual Remote control wrench Silicone bottle... - Page 12 ASSEMBLYINSTRUCTION Step 1：Take out the machine from box and put it on the flat floor (as shown). Remove all PE bags and tapes wrapped on the machine.
-
Page 13: General Fitness Tips
Step 2：Lift the upright post and console frame bar as A direction, then adjust the 8 feet pads of the machine to keep it flat and not suspended. Step 3: observe the position indicated by arrow (1) and (2) from the figure above. Then check whether the running belt is centered in the middle of the roller under stationary state. -
Page 14: User Instruction
In order to protect the digestive system, one hour after meals before exercise, training should be at least half an hour before eating, exercise less water, especially drinking water, so as not to increase the heart, kidney burden Warm-up/stretching exercises No matter how fast you walk, it's best to do stretching exercises first. - Page 15 The system has protection function to avoid overload, over current, explosion and anti-electromagnetic interference, etc. System regular check, warning prompt of abnormal information are also included. Safety guidelines Insert the power cord plug into the 8A power socket with safety grounding, turn on the power switch, the electronic watch screen is fully displayed with a prompt sound, and then identify the safety lock;...
- Page 16 “DIS” window: Display the distance value. “CAL” window: Display the calories value “TIME” window: Display the time value. “PULSE” window: Display the pulse value “SPEED” window: Display the speed value. ”STEP” window: Display the step value. 1. Function button: START/PAUSE, STOP, TIME, SPEED, SPEED. 2.
-
Page 17: Display Range
Display range Default value Setting range Default Display range Time (min:sec) 0:00 0:00~99:59 Speed (km/hr) 0.5-6.0 0.0-6.0 Distance (km) 0.0－99.9 0－999 Calorie (kilocalorie) Shut down The treadmill can be shut down anytime by turning off the switch and will not cause any damages to the treadmill. - Page 18 electrician or maintenance personnel. Please do not change the plug attached to this product without authorization. If the plug is inconsistent with the socket, let a qualified electrician install a suitable socket. It should be under 220-240V and matches with this kind of socket as shown. Treadmill instruction 1.
- Page 19 6. Use of default mode Turn on the power, turn on the power switch, after the display is normal, press the "select" button to select one of the automatic running modes as the current running mode, press the "start" button to start the treadmill, and the treadmill starts to run automatically according to the selected mode.
- Page 20 factor of increase the lifetime for treadmill is proper lubrication. The way of checking whether the running belt need lubrication is, lift the side soft the treadmill and feel the central back of the belt, as far as possible. If traces of silicon spray are found, lubrication is not necessary.
-
Page 21: Belt Adjustment
Tight Tight Loose Loose Such as left deviation of running belt. Such as right deviation of running belt. Adjust the left screw clockwise or the right Adjust the right screw clockwise or the left screw anti-clockwise. screw anti-clockwise. Running belt deviation is not covered by the warranty, and is mainly maintained by users according to the instructions. - Page 22 Common failures and processing method Problem Possible cause Maintenance A. no power Plug into socket B. broken circuit signal Treadmill didn’t system Check the controller input and signal wire work C. switch off Place the power switch in the “NO”position. D.
- Page 23 Service commitment The treadmills can provide free on-site repair or accessories for users under normal operating conditions within warranty period. After the expiry of warranty, OMA can provide spare parts at a low price without labour costs. Please refer to the warranty card for details. Important information This warranty card comes with each product and is filled out by the dealer.
