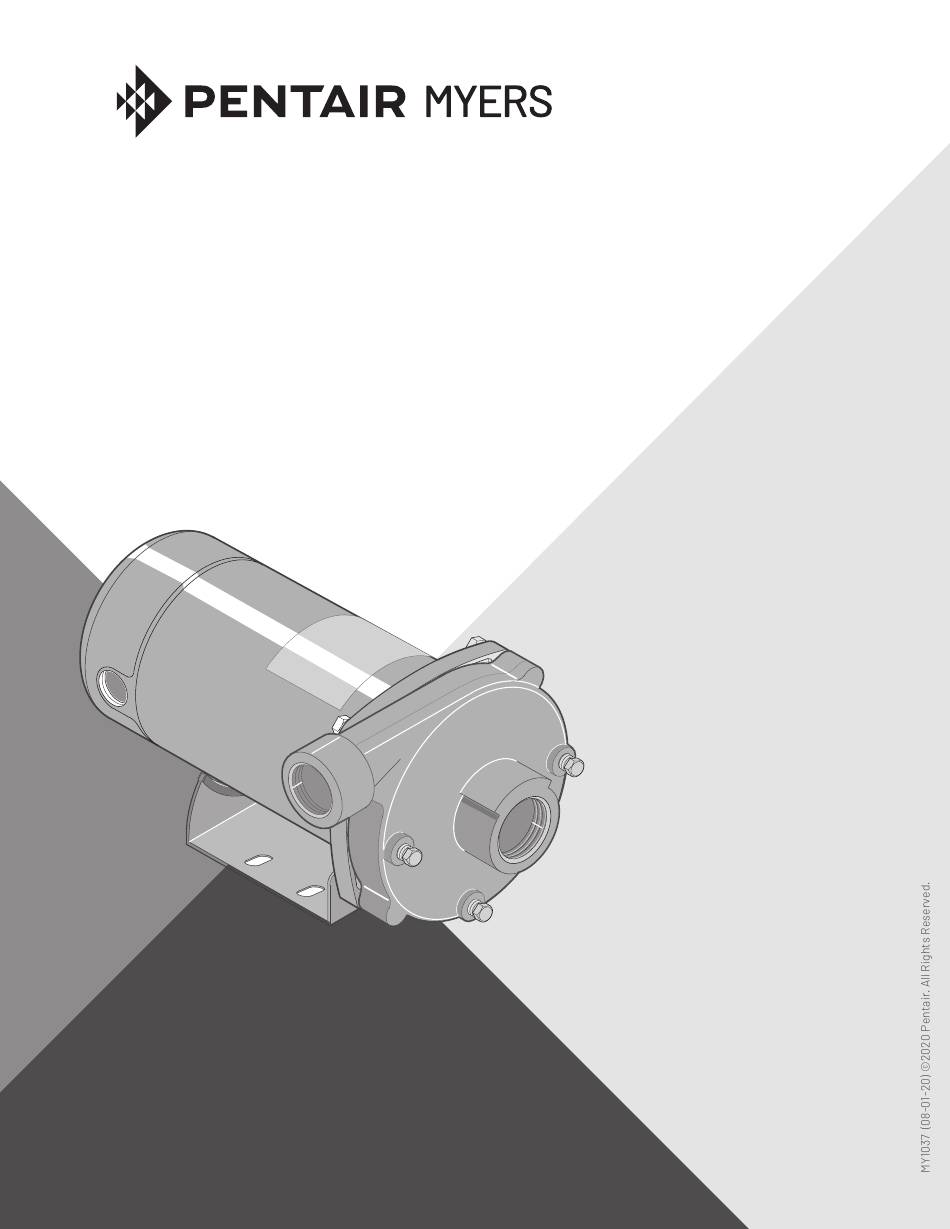

- Page 1 60 CYCLE CT SERIES CENTRIFUGAL PUMP 671 0294 INSTALLATION AND OPERATION MANUAL pentair.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ....................................3 Installation ......................................4-6 Maintenance ......................................7 Repair Parts List ....................................8-9 Troubleshooting ....................................10 Warranty .........................................11 MY1037 (08-01-20) -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS GENERAL SAFETY SAVE THESE INSTRUCTIONS: For optimal performance and Risk of explosion. The pump body may explode if operation, read these instructions carefully before installing used to boost pressure above the pressures noted on Page your new pump. -
Page 4: Installation
INSTALLATION Short length of straight pipe after reducer Tee and Short length of Priming Plug straight pipe after reducer Tee and Important: Priming Priming Plug All connections must Plug be air tight Important: Discharge Street Elbow Priming All connections must to service Support suction pipe Eccentric... - Page 5 INSTALLATION PIPING - GENERAL Figure 2 depicts conditions that are NOT DESIRABLE on the suction side of a centrifugal pump and may cause problems in Support both suction and discharge piping independently at flow rate and priming. Please look this illustration over carefully a point near the pump to avoid putting a strain on the pump before choosing pipe and fittings for your suction connection.
- Page 6 INSTALLATION THE MOTOR IS SET FOR 230 VOLTS WHEN SHIPPED. MODELS To change the motor to use 115 volts: CTJ05B CTJ05B3 CTJ05 CTJ053 Turn off power CTJ07B CTJ07B3 CTJ07 CTJ073 Remove the back motor cover. CTJ10B CTJ10B3 CTJ10 CTJ103 Use a 1/2” wrench and turn the voltage selector dial counterclockwise until 115 shows in the dial opening.
-
Page 7: Maintenance
MAINTENANCE PUMP SERVICE INSTALLATION OF FLOATING SEAT (Figure 5C) This centrifugal pump requires little or no service other than Clean polished surface of floating seat with clean cloth. reasonable care and periodic cleaning. Occasionally, however, Turn seal plate over so seal cavity is up, clean cavity a shaft seal may become damaged and must be replaced. -
Page 8: Repair Parts List
REPAIR PARTS LIST Repair Parts List - CT Series 801 0217 GEN MOTOR AND HORSEPOWER PART CTJ05 CTJ07 CTJ10 CTJ15 CTJ20 CTJ25 DESCRIPTION USED CTJ053 CTJ073 CTJ103 CTJ153 CTJ203 CTJ253 1/2 HP 3/4 HP 1 HP 1 -1/2 HP 2 HP 2 -1/2 HP Motor, 115/230V, Single Phase J218-582APKG J218-590PKG J218-596PKG J218-601PKG J218-883APKG J218-628APKG... - Page 9 REPAIR PARTS LIST Repair Parts List - CTB Series 2407 0217 MOTOR AND HORSEPOWER PART CTJ05B CTJ07B CTJ10B CTJ15B CTJ20B CTJ25B DESCRIPTION USED CTJ05B3 CTJ07B3 CTJ10B3 CTJ15B3 CTJ20B3 CTJ25B3 1/2 HP 3/4 HP 1 HP 1 -1/2 HP 2 HP 2 -1/2 HP Motor, 115/230V, Single Phase J218-582APKG...
-
Page 10: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Make sure pump casing and suction line are Failure to pump: Pump not properly primed. full of water. See priming instructions. Air pockets or leaks in suction line. Check suction piping. Reduced capacity and/or head: Clogged impeller. -
Page 11: Warranty
WARRANTY Limited Warranty Myers warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from ® defects in material and workmanship for the Warranty Period shown below. Warranty Period Product whichever occurs first: Jet pumps, small centrifugal pumps, submersible pumps and 12 months from date of original installation, related accessories... - Page 12 ORDERS FAX: 888-606-5484 Pentair trademarks and logos are owned by Pentair or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer.
