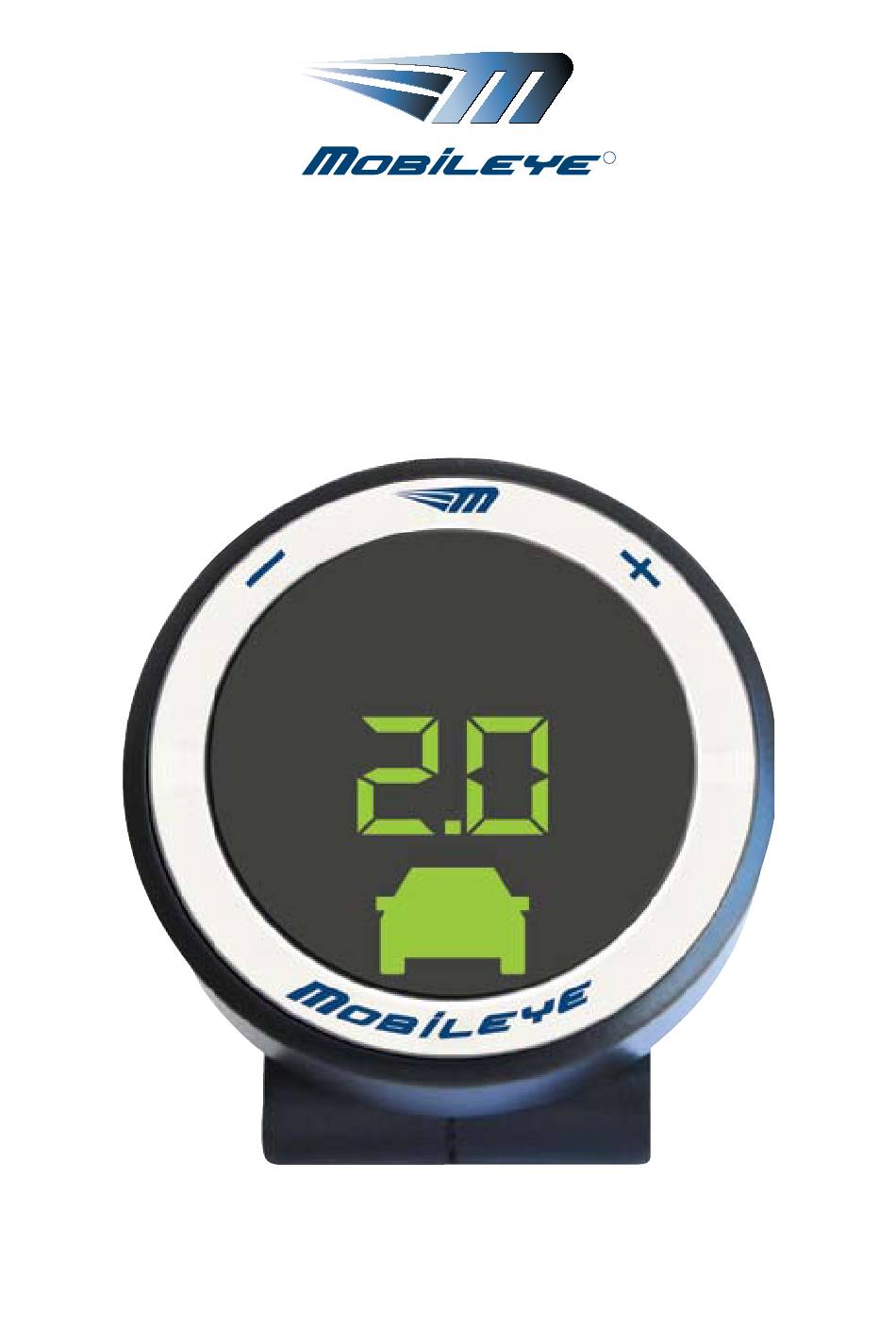

- Page 1 C2-270 Collision Prevention System User Manual...
- Page 2 C2-270 efore sing oBileye Before installing or using the Mobileye® C2 carefully read this User Manual and the important safety instructions and warnings it contains. iCensing and arranty Please read Sections 12 in this User Manual for licensing and warranty issues. Please return the warranty card, located at the end of the manual, to activate your original purchaser warranty.
-
Page 3: Table Of Contents
2.3. Display and Control Unit Not Generated? Section 3 8.7. Changing the Timing of the Headway Getting Started Audio Alert 3.1. Turning on Mobileye C2-270 Section 9 Section 4 Display Unit Forward Collision Warning (FCW) 9.1. Left/Right Deviation Alert 4.1. What is FCW? 9.2. -
Page 4: Warnings
Mobileye C2 is not an automated driving system and it does not act as a substitute for any aspect of driver vehicle control or safe driving practices. Drivers are strongly... -
Page 5: Installation And Safety Instructions
The Mobileye C2 should only be operated with 12VDC~24VDC power. Do not cover or obstruct the Camera Unit or Mobileye C2 Display and Control Unit. Do not use Mobileye C2 system for any purpose other than described in this User... -
Page 6: System Components
Front View 2.1 Camera/Buzzer Unit The Camera/Buzzer Unit contains the camera, the main processor and the warning buzzer of the Mobileye C2-270 system. The Camera/Buzzer Unit: Identifies lane markings Identifies vehicles and Pedestrians that are ahead of you Processes the video data for potentially dangerous situations Instructs the system display unit as to which alert to display The Camera Unit is attached to the front windshield by a Windshield Mount –... -
Page 7: Display And Control Unit

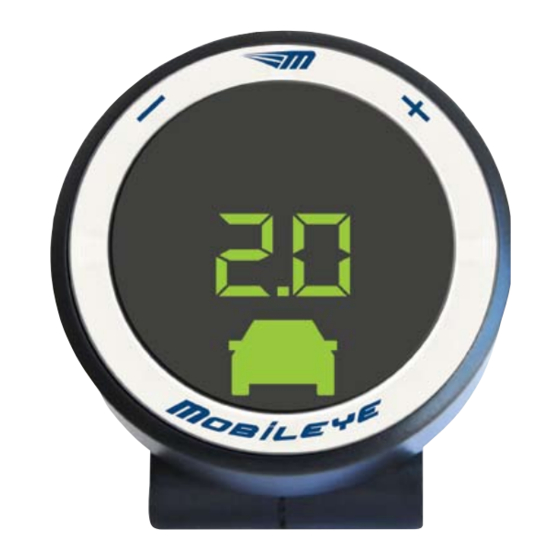

Windshield Mount and Camera Unit attached to the front windshield Windshield Mount Rear View Mirror Power Indication Light 2.3 Display and Control Unit The Display and Control Unit provides you with: Visual alerts (for example, visual indication of your current driving distance from the vehicle ahead). -
Page 8: Getting Started
The Mobileye C2-270 is fully operational and requires no additional setup by the driver. Should the need arise to change the C2-270 configuration, please refer to section 8 of this manual before trying to use the Mobileye C2-270 control panel. Careless changes in system settings may result in undesirable behavior. -
Page 9: Forward Collision Warning (Fcw)
The Forward Collision Warning alerts you to the danger of an impending collision with the vehicle ahead. The Mobileye C2-270 calculates the expected Time to Collision (TTC) with the vehicle in front and when the TTC drops to a dangerous threshold, it immediately generates an FCW alert. -
Page 10: Pedestrian Collision Warning (Pcw)
The Pedestrian Collision Warning alerts you to the danger of an impending colli- sion with a Pedestrian ahead. The Mobileye C2-270 calculates the expected Time to Collision (TTC) with the Pedestrian in front and when the TTC drops to a dangerous threshold, it immediately generates an PCW alert. -
Page 11: Lane Departure Warning (Ldw)
6.1. What is LDW? The Mobileye C2-270 provides a Lane Departure Warning (LDW) to alert you when you are about to unintentionally swerve outside of the lane you are driving in. 6.2. LDW is Generated When… LDW alerts you when the car begins to swerve from the driving lane. The system generates an LDW alert up to 0.5 seconds before the vehicle crosses the lane marking. -
Page 12: Intelligent High-Beam Control (Ihc)
The High-beam indicator will light on the EyeWatch Display. IHC Indication IHC visual alert IMPORTanT nOTe: This feature is available only on certain Mobileye C2-270 models. This feature is available only if activated during the system Installation This feature is available only on certain geographical areas. -
Page 13: Headway Monitoring And Warning (Hmw)
Headway is measured in seconds, and not physical distance. The headway is the number of seconds it would take for your vehicle to reach the current position of the vehicle ahead. Mobileye C2-270 continuously calculates your headway and displays it numerically on the Display Unit. A two- second headway, in clear weather, is usually considered a safe distance. -
Page 14: Hmw Audio Alert
HMW will not issue audio warnings when: You drive at speeds below 30 km/h (19 mph). The Mobileye C2-270 volume level has been set to "0" or the System has been ‘muted’. nOTeS: When a passing vehicle cuts in front of you in your lane and drives away, a HMW alert is not generated. -
Page 15: Changing The Timing Of The Headway Audio Alert
Setting the timing of the headway alert to a low value will activate the alert when vehicles are very close. You are always solely responsible for maintaining a safe driving distance from vehicles ahead, regardless of Mobileye C2-270 warnings or lack of them. -
Page 16: Display Unit
Section 9 isPlay A composite illustration, showing all C2-270 Display Unit icons, is presented in the following figure. 9.1. Left/Right Deviation alert When a Lane Departure Warning is sounded, the Left or Right Deviation Alert indicator will flash for 0.7 seconds. -
Page 17: Low Visibility Indication
Dimming of the Seven Segment (headway distance meter). Displayed during low visibility conditions (bad weather, direct sunlight, dirt on windshield, etc.) The Mobileye C2-270 continues to work but there may be degradation in detection ability. If low visibility persists, check for possible camera obstructions (dirt, humidity, etc.). -
Page 18: Control Buttons
When the Mobileye C2-270 is turned OFF, no warnings will be issued. 10.1.2. Setting the Brightness Level The Brightness level of the Mobileye C2-270 display unit can be modified by pressing on the ( ) button once. By pressing the (+) (-) buttons you can decrease or increase... - Page 19 The Mobileye C2-270 identifies day and night conditions and automatically switches between ‘Day’ and ‘Night’ modes. Each mode has its own independent luminance level that can be configured separately. The system saves the latest luminance settings for both ‘Day’ and ‘Night’ modes until they are changed, or until reset to factory defaults.
- Page 20 Level 2 is the default. Reducing sensitivity to level 1 will delay the LDW alerts, and setting the system to "0" will turn off LDW alerts. WaRnInG! Do not change Mobileye C2-270 settings while driving. To set the LDW sensitivity level perform the following steps: 1. Press the ( ) button three times.
-
Page 21: Increase/Decrease Volume
To set the PCW sensitivity level perform the following steps: 1. Press the ( ) button four times. This will change the system mode into “PCW Sensitivity” configuration mode. The red “Pedestrian” icon will flash at a very slow phase (dim inn and dim out) and the PCW level should be displayed by the right digit of seven segments. -
Page 22: Mute
Muting will disable the HMW and LDW audio alerts. Mute and OFF conditions are not saved by the system. Each time the vehicle is restarted, the Mobileye C2-270 is ON, and NOT muted. 10.4. Urban FCW Sensitivity To change the Virtual Bumper sensitivity Press and hold the (+) button and then immediately press on the (-) button for 1.5 sec. -
Page 23: Troubleshooting
Section 11 roUBlesHooting The following section provides possible solutions to situations that may occur when using the Mobileye C2-270. Should this section fail in providing the required solution, please contact technical support for assistance. WaRnInG! Do not perform any maintenance activities on the Mobileye C2-270... - Page 24 4. Turn off the hazard signal 4. The Hazard signal is on “_._” continuously appears in Missing speed indication Contact your C2-270 service center the Headway Meter Restart the system by turning the ignition off and Error Malfunction during startup then back on.
-
Page 25: License And Warranties
Mobileye with respect to the Mobileye C2. No warranty of any kind or nature is made by Mobileye beyond those expressly stated herein. In no event shall Mobileye be liable for any... -
Page 26: If Warranty Service Is Needed
Mobileye C2. 12.4. If Warranty Service Is needed The following procedure is to be followed if a problem arises with the Mobileye C2: 1. Contact the dealer, if the Mobileye C2 was purchased from distributor. -
Page 27: Technical Support
UPPort In the event that you encounter a technical problem with Mobileye C2, please refer to the troubleshooting chapter in this User Manual. It is intended to assist you in resolving some technical difficulties. For additional support, please contact your local Mobileye... - Page 28 User agreement The following form should be signed and returned to your local Mobileye C2 distributor. I have read and understood the safety instructions and operating manual before using Mobileye C2, including 1 of this user manual "Warnings" and “License and Warranties”.
- Page 29 © 2007-2010 Mobileye Technologies Limited. All Rights Reserved. Mobileye, Mobileye C2, and the Mobileye logo are registered trademarks of Mobileye Technologies Ltd.
