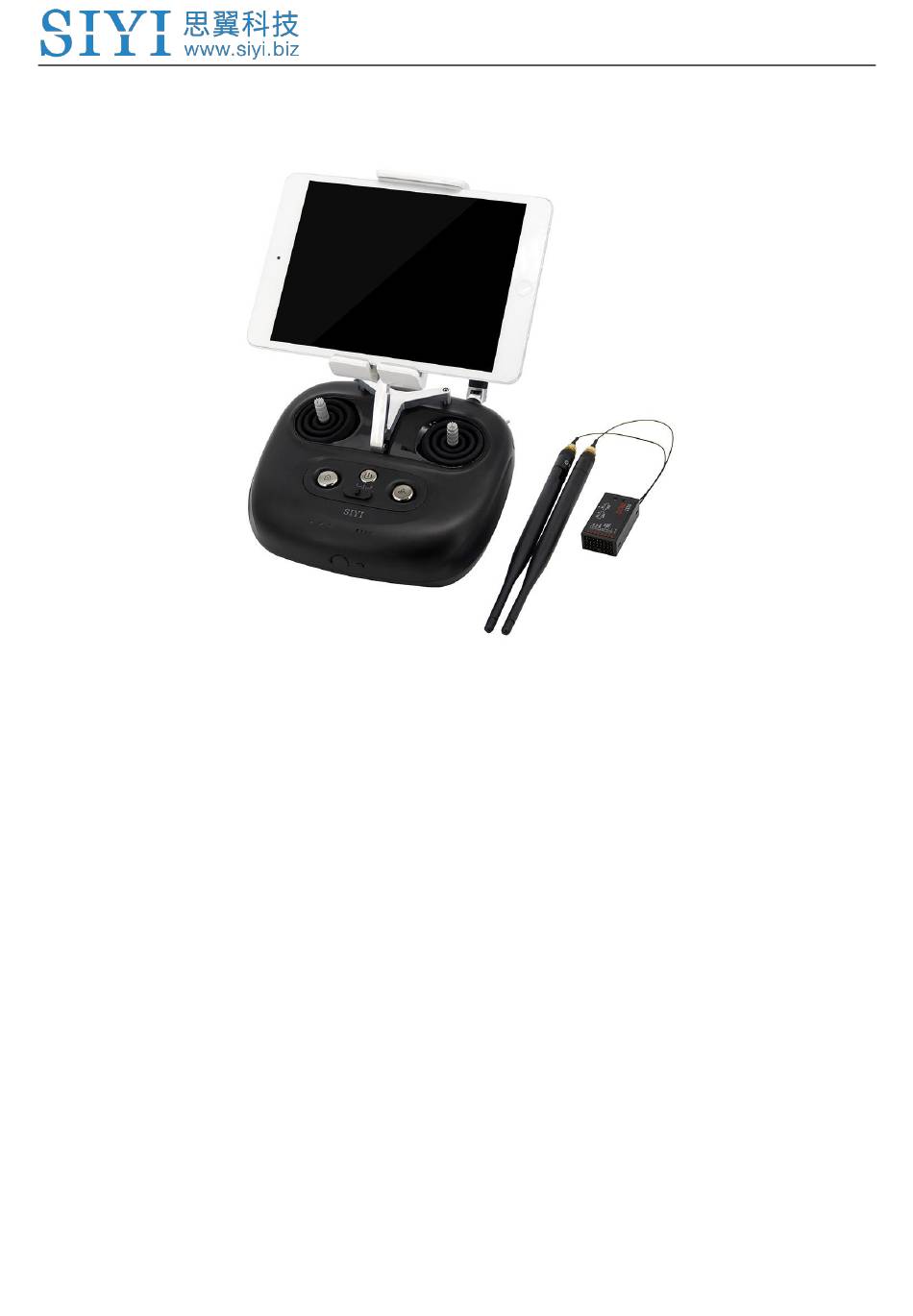

DK30 Transmitter User Manual V1.2
DK30 TRANSMITTER USER MANUAL
Thank you for purchasing SIYI Technology's product. DK30 is a powerful and affordable radio
transmitting and receiving system integrated with 2.4G datalink, applied with upgraded SHTT
digital frequency hopping technology. DK30 supports maximum 10-kilometer effective
transmission distance and 15 independent digital channel output, perfectly compatible with all
major commercial flight controller in markets. DK30 also supports parameter adjustment through
mobile device, easy and convenient. To maintain a safe and orderly public space and to ensure
you a good using experience of DK32 transmitter, please read this manual carefully. If you have
any issue using the product, please consult the manual or check online pages of DK30 on SIYI
Technology's official website (http://www.siyi.biz). You can also inquire our after-sale service
coordinator (support@siyi.biz).
1
2018 SIYI Technology Copyright
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIYI DK30
Summary of Contents for SIYI DK30
- Page 1 DK32 transmitter, please read this manual carefully. If you have any issue using the product, please consult the manual or check online pages of DK30 on SIYI Technology’s official website (http://www.siyi.biz). You can also inquire our after-sale service coordinator (support@siyi.biz).
-
Page 2: Table Of Contents
1.4 Technical Specifications........................... 7 2 GET READY TO USE DK30........................... 8 2.1 Flight Safety .............................. 8 2.2 How to Charge DK30 Transmitter ......................10 2.3 DK30 Transmitter Indicator Definition ....................11 3 SKY STATION ............................... 12 3.1 How to Connect Sky Station under SBUS/PPM Mode ................ 13 3.2 How to Connect Datalink........................ -
Page 3: Product Introduction
DK30 transmitter fits user’s palm perfectly by applying a fashionably streamlined and compact industrial design. 15-Channel Fast-response Mode DK30 transmitter is equipped with a various type of buttons, dials and switches. 15 channels support all requirement of major farming drones in market. * 5ms fast-response mode... - Page 4 DK30 transmitter is equipped with a 3000mAh Li-Po 1S rechargeable battery, reliable and easy to maintain. Through standard Micro-USB port you can charge DK30 transmitter, and it continuously works for more than 25 hours after a full charging. You’ll never have to worry about long-time flight in outdoor.
-
Page 5: At A Glance
DK30 Transmitter User Manual V1.2 Parameter Adjustment on PC and Android APP It’s an obviously better experience to adjust parameter on personal computers than through LED screen, also more enjoyable owning continuous service of upgrading firmware and updating new features. -
Page 6: Switch, Button & Channel
DK30 Transmitter User Manual V1.2 1.3 Switch, Button & Channel DK30 transmitter has 15 channels in total, each channel controlled by an independent switch or button. DK30 Transmitter Channel Function & Switch Definition Channel No. Switch Definition Aileron Joystick Elevator Joystick... -
Page 7: Technical Specifications
DK30 Transmitter User Manual V1.2 Self-reset Button S4 Self-reset Button S5 Self-reset Button S6 DK30 transmitter supports customized channel mapping as well, please refer to “SIYI Tx” application chapter in this manual. 1.4 Technical Specifications Channels 15 Physical Channels, 16 Receiver Output Channels... -
Page 8: Get Ready To Use Dk30
2 GET READY TO USE DK30 2.1 Flight Safety DK30 transmitting and receiving system is designed for professional application in specific industries, users who approaches to the device should have at least basic ability manipulating it. Any irregular or irresponsible manipulations of the device may cause damages and lead to property loss or human injuries. - Page 9 Prohibited Mandatory Do not use DK30 transmitter to control aircraft in places of intensive crowd (squares, parks), places of many obstructions (streets, parking lots), fields of strong magnetic or interference (power/radar stations, railways) or any other fields that may cause property loss or human injuries.
-
Page 10: How To Charge Dk30 Transmitter
75% battery level remaining Battery level is full Press power button twice and hold for 3 seconds to power on DK30 transmitter. Power on USB charger, connect charging cable to DK30 transmitter’s Micro-USB port. DK30 is on charging while charging indicator is solid red; charging is finished... -
Page 11: Dk30 Transmitter Indicator Definition
Charging current should not exceed 2A, otherwise it may bring battery damage. 2.3 DK30 Transmitter Indicator Definition On DK30 transmitter there are 3 LED indicators with different definition. Transmitter in charging Solid red... -
Page 12: Sky Station
Solid green Normal transmitting 3 SKY STATION DK30 and DK32 transmitter shares the same sky station, receiver integrated with datalink, equipped with two 5dBi omnidirectional antennas, the maximum effective transmission distance is test to be 10 kilometers in unobstructed, free of interference areas. -
Page 13: How To Connect Sky Station Under Sbus/Ppm Mode
DK30 Transmitter User Manual V1.2 3.1 How to Connect Sky Station under SBUS/PPM Mode Please follow the legend below to connect signal control cable with DK30 sky station, and pay an attention to its direction, wrong direction may block transmitting signal to flight controller. -
Page 14: Linking
Press and hold S5, S6 buttons on the back of DK30 transmitter, then toggled down LD and RD at the same time, DK30 will beep an urgent “DiDiDi…”; then toggle up LD and RD, the urgent “DiDiDi…” turns to a slow and rhythmic “Di-Di-Di”, and link indicator blinks red quickly. -
Page 15: Siyi Tx App
Steps to Connect Mobile Device 1. Please visit SIYI Technology’s official website (http://www.siyi.biz). 2. In DK30 transmitter product description page, tap on “Downloads”; 3. Select “SIYI TX” software, tap on “Download” and install it to your mobile device; 2018 SIYI Technology Copyright... -
Page 16: Sky Station
Bluetooth SSID which is also marked in the back plate of transmitter (0AXXXXXXXX); tap on Bluetooth to connect. Default password is 1234. 5. Or open SIYI TX APP, tap on “Disconnected” up on the right corner; find DK30 transmitter Bluetooth SSID in popped out Bluetooth list. -
Page 17: Channel
DK30 Transmitter User Manual V1.2 Signal Mode Set different signal mode according to XR32 receivers three different output mode, SBUS, PPM and PWM. Auto Linking When datalink sky station is powered on, the automatic linking function is turned on, and receives no signal from datalink ground station in 20 seconds, datalink sky station starts linking to ground station automatically. - Page 18 Tap on the channel reverse button in your target channel to set channel reverse or reset. Channel Mapping DK30 transmitter supports customize channel function control switch from default joysticks, dials and buttons. Steps to Set Channel Mapping 2018 SIYI Technology Copyright...
-
Page 19: Datalink
Steps to Connect Datalink DK30 transmitter supports A-USB (USB port), Micro-USB port and Bluetooth for data communication. If you need Bluetooth for data communication, please choose Micro-USB in SIYI Tx APP, then quit APP before connect transmitter with mobile device. Flight Controllers Select your required flight controller in list. -
Page 20: System
Tap on baud rate, select your target baud rate for your required flight controller. 4.4 System DK30 transmitter’s system settings: linking, language, throttle type and joystick type. Linking Please refer to the legend below to link DK30 ground station with sky station. 2018 SIYI Technology Copyright... - Page 21 DK30 Transmitter User Manual V1.2 Tap on “Start Linking”, DK30 ground station beeps “DiDiDi…”, transmitter is ready for linking; then press and hold linking button for 3 seconds, linking is finished. Language Tap on language to switch DK30 transmitter operating language between Chinese and English.
- Page 22 DK30 Transmitter User Manual V1.2 5 VIDEO TRANSMISSION MODULE (DK30 PLUS ONLY) 5.1 At a Glance DK30 Plus Video Transmission Module Introduction Camera: 600tvl analog camera Video Transmitting Module: Maximum power 28dBm and maximum transmitting distance 2018 SIYI Technology Copyright...
-
Page 23: To-Be-Repair Procedure
(http://www.siyi.biz/). Steps to Check Video Transmission through SIYI FPV APP 1. Use male to male A-USB cable and OTG connector cable to connect DK30 Plus transmitter’s A-USB port with mobile device. In some mobile device the OTG function is disabled in default, enable it before connection. - Page 24 DK30 Transmitter User Manual V1.2 3. In APP it pops up the information of your camera device, tap on “confirm” to connect. 2018 SIYI Technology Copyright...
-
Page 25: Firmware Upgrading
5. When installation is finished, use an USB cable, connect its one end to the Micro-USB port on DK30 transmitter, another end to computer; 6. Open SIYI Assistant, check transmitter’s current firmware version; if it was not the latest version, tap on “Upgrade” to firmware upgrading menu;... -
Page 26: To-Be-Repair Procedure
3. Find after-sale service center or technical support staff information and consult them with your product issue; 4. If the issue stays unsolved after confirming with SIYI Tech, then please refer to our after-service for filling in a “To-be-repair” form (personal repair form for individuals, distributor repair form for distributors);... -
Page 27: After-Sale Policy
DK30 Transmitter User Manual V1.2 6. If the product is confirmed damaged or defected by SIYI Technology, it goes in repair procedure. Product will be returned to you after repairing. 7.2 After-sale Policy SIYI Technology guarantees that, subject to the following conditions, Return &... - Page 28 It is requested beyond seven (7) calendar days of receiving a product. A product sent to SIYI for Return & Refund Service does not include all original accessories, attachments or packaging, or any item is not in new or like-new condition, i.e.
-
Page 29: 15-Day Replacement
Legal proof-of-purchase, receipts, or invoices are not provided, or are reasonably believed to have been forged or tampered with. A product sent to SIYI for replacement does not include all original accessories, attachments and packaging, or contains items damaged by user error. -
Page 30: 1-Year Warranty Repair
You can request warranty repair service: If a product does not function as warranted during the warranty period, you may obtain after-sales service by contacting SIYI’s service center. You will need to provide a valid proof-of-purchase, receipt or order number for the warranty service. - Page 31 DK30 Transmitter User Manual V1.2 Please note that the warranty service is only available in the respective SIYI service regions where you purchased your SIYI product. Warranty Repair service will not be provided where: Crashes or fire damage caused by non-manufacturing factors, including but not limited to pilot errors.
- Page 32 DK30 Transmitter User Manual V1.2 Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.e. transmitter, video-downlink, Wi-Fi signals, etc.) Damage caused by reliability or compatibility issues when using unauthorized third-party parts. Damage caused by operating the unit with a low-charged or defective battery.
