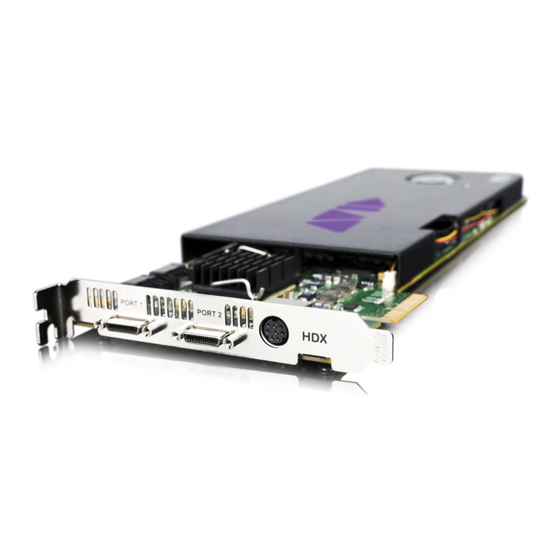

HDX-192 Cooling Kit Installation
The HDX-192 Cooling Kit must be installed on HDX-192 DSP
cards. Installation is simple using the included parts.
Installing a Cooling Kit consists of the following steps:

• Removing the E6L engine core

• Removing all HDX-192 DSP cards
• Installing a Fan assembly on each HDX-192 card
• Re-installing the HDX-192 cards into the E6L Engine
• Re-connecting the HDX TDM cable between HDX cards
(if more than one card are present)
• Replacing hardware
• Confirming Installation
Required Materials
What's Included
• HDX-192 Cooling Kit package, which includes:
• (1) HDX-192 Fan assembly (fan and shroud)
• Fasteners (4x 4-40 plastic screws)
• 1x Phillips #1 screwdriver
• 1x tube of adhesive (not needed on all E6L engines)
Required but Not Included
• Anti-Static wrist strap (not included)
• Phillips #2 screwdriver (not included)
• Table or other clean, flat work surface
• VENUE software version 5.7 or higher
Make sure you have already installed VENUE software
version 5.7 or higher before installing the Cooling Kit on
your HDX-192 card(s).
© 2018 Avid Technology, Inc
Removing the E6L Engine Core
HDX cards are installed in the E6L engine core, which slides out
of the E6L chassis.
To remove the E6L engine core
Put on your anti-static wrist band and configure according to
1
its instructions.
Shut down your system, and disconnect any cables connected
2
to your E6L engine.
Place your E6L on a table or other flat surface that provides
3
enough room for the E6L engine core to be removed comfort-
ably. Make sure your surface is clear of any debris.
On the back of the E6L, loosen the four thumbscrews that se-
4
cure the core to the engine chassis.

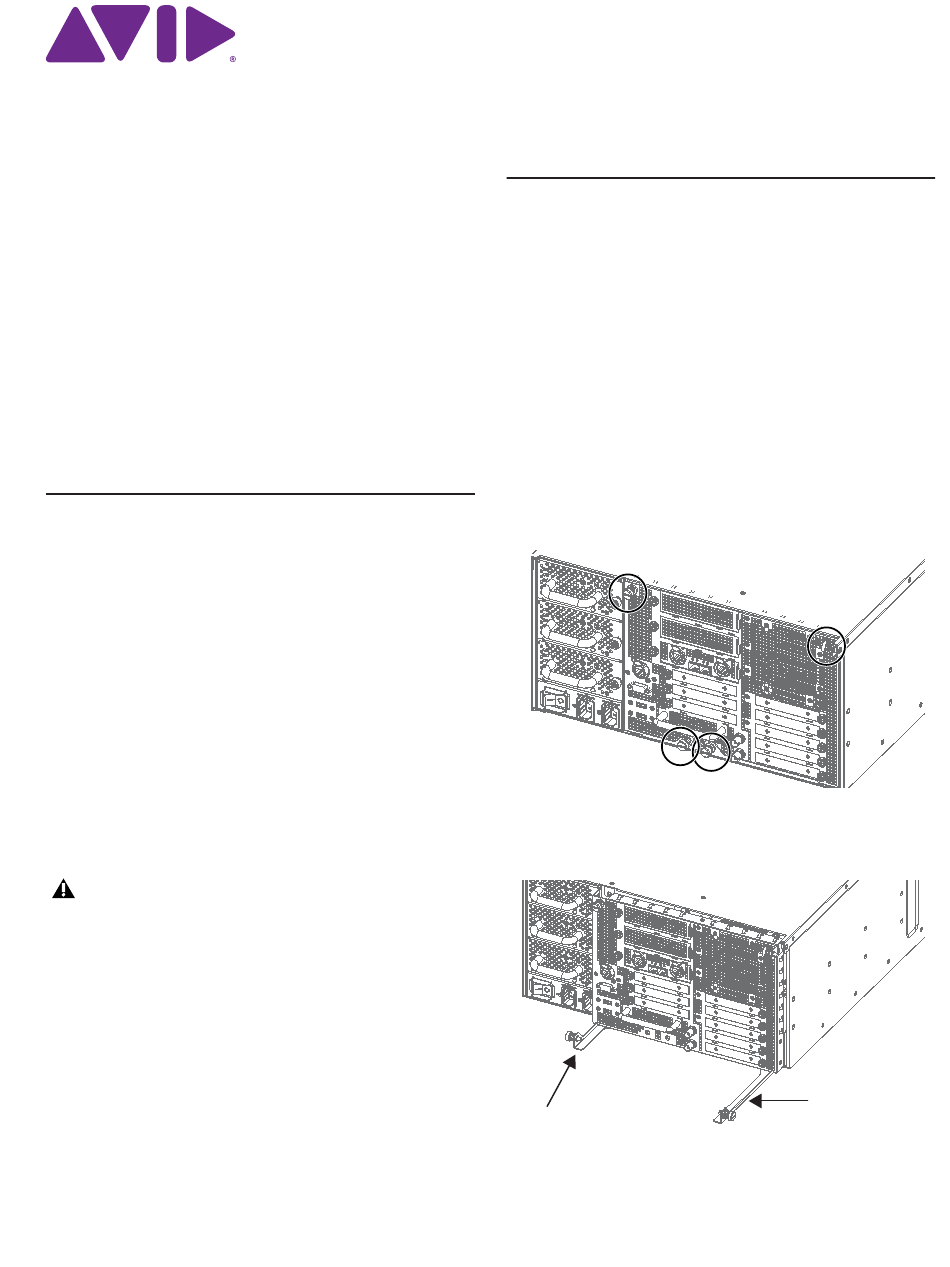

Figure 1. Four thumbscrews on the back of the E6L
Simultaneously pull the two bottom thumbscrews outward so
5
their latches are fully extended, as shown in Figure 2.
Figure 2. Latches fully extended
