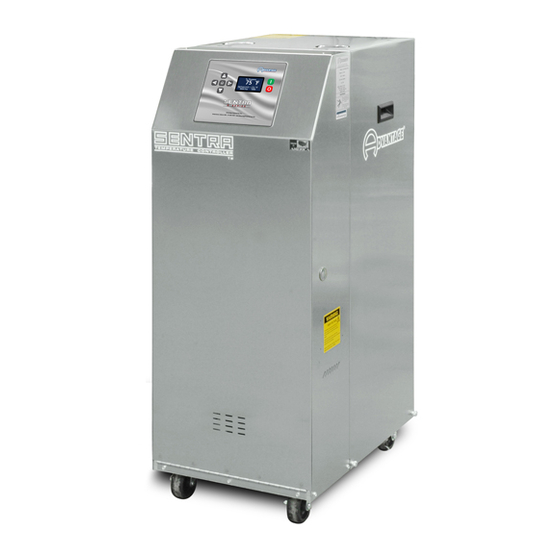

Sentra SK Series with G Control Instrument
REFERENCE GUIDE
INSTALLATION • OPERATION • TROUBLESHOOTING
BEFORE INSTALLING OR OPERATING
1. A complete manual is available online at
Sentra-G-Manual
document. Download and read the manual before starting installation.
2. This unit is designed to be used with water as the circulating fluid.
The quality of fluid used in your temperature control unit will greatly
effect its short and long-term operation. Lack of as well as improper
water treatment can damage the temperature control unit by causing
scale build-up, excessive corrosion and/or bacterial contamination. It
is the equipment owner's responsibility to prevent damage caused by
poor water quality. The services of a water treatment professional is
recommended.
2. Before installing and operating the unit, be aware of and follow any
local laws and codes that apply to the installation.
3. When contacting the Service Department always have the unit Model
and Serial number from the data tag located on the side of the unit.
This reference guide covers standard Advantage temperature control units with the G Series
Control Instrument. This guide may be used for customized units using the G Series Control
Instrument even when the unit may not be physically the same as the units depicted in the
included photos.
SERVICE DEPARTMENT: 317-887-6352
or by scanning the QR code on the back of this
*Reference the manual for requirements for 250°F set point.
Maximum Setpoint : 250°F*
www.advantageengineering/
Advertisement
Table of Contents
Related Manuals for Advantage Sentra SK-G Series
Summary of Contents for Advantage Sentra SK-G Series
- Page 1 Serial number from the data tag located on the side of the unit. This reference guide covers standard Advantage temperature control units with the G Series Control Instrument. This guide may be used for customized units using the G Series Control Instrument even when the unit may not be physically the same as the units depicted in the included photos.
- Page 2 Installation Refer to the Manual for complete details on Installation. 1. Electrical: Be certain all electrical connections are tight in the unit. Install unit power cord (when supplied) to power disconnect switch. Applied power must be equal to the unit voltage and amps listed on the unit data tag.
- Page 3 Connect Unit drain to plant’s open drain, tower water system return or chilled water system return. The factory recommends a minimum of 20 psi pressure differential between the water supply and drain line. A larger differential may be required for larger cooling needs. Connect Unit water supply to plant’s city water or well water source or tower water supply or chilled water supply.
- Page 4 6. The unit is ready to start when no errors are shown on the screen and pump rotation is correct. Press the green start button. The unit will auto vent if the fluid temperature is below 100°F or as programmed in the features menu.
- Page 5 Controller Basic Controller use is shown. Refer to the Manual for full information. The instrument has 5 soft keyed buttons. 1. The Home button shows the Home screen. 2. The Up button will add one unit of value or will scroll up through a menu.
- Page 6 If you have any questions regarding this Reference Guide, the Sentra G Series Operations Manual, installation, operation or servicing of the unit, please call the Advantage Service Department. 317-887-0729 525 East Stop 18 Road, Greenwood, IN 46143 phone: 317-887-0729 fax: 317-881-1277 Web site: www.AdvantageEngineering.com Email: service@AdvantageEngineering.com...
