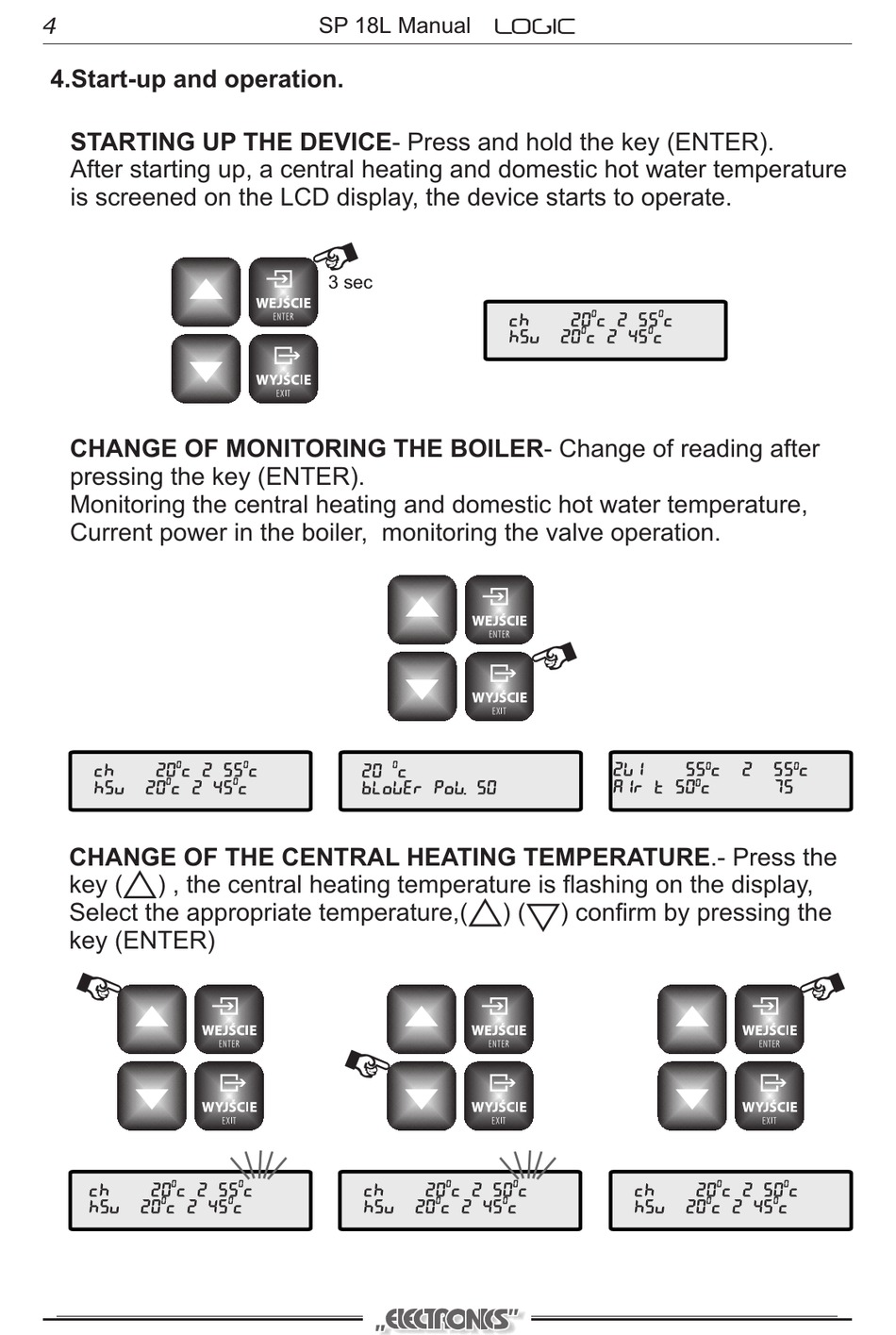

Logic SP-18L Service Manual page 4

4
4.Start-up and operation.
STARTING UP THE DEVICE- Press and hold the key (ENTER).
After starting up, a central heating and domestic hot water temperature
is screened on the LCD display, the device starts to operate.
CHANGE OF MONITORING THE BOILER- Change of reading after
pressing the key (ENTER).
Monitoring the central heating and domestic hot water temperature,
Current power in the boiler, monitoring the valve operation.
0
CH 20 C z 55 C
0
HSV 20 C z 45 C
CHANGE OF THE CENTRAL HEATING TEMPERATURE.- Press the
key ( ) , the central heating temperature is flashing on the display,
Select the appropriate temperature,(
key (ENTER)
0
CH 20 C z 55 C
0
HSV 20 C z 45 C
SP 18L Manual
3 sec
0 0
20 C
0
BLOWER POW. 50%
0
CH
0
HSV
CH 20 C z 55 C
0
HSV 20 C z 45 C
) ( ) confirm by pressing the
0 0
20 C z 50 C
0 0
20 C z 45 C
0 0
0
Zw1 55 C 0 z
AIR T 50 C 0
0
CH 20 C z 50 C
0
HSV 20 C z 45 C
55 C 0
75%
0
0
