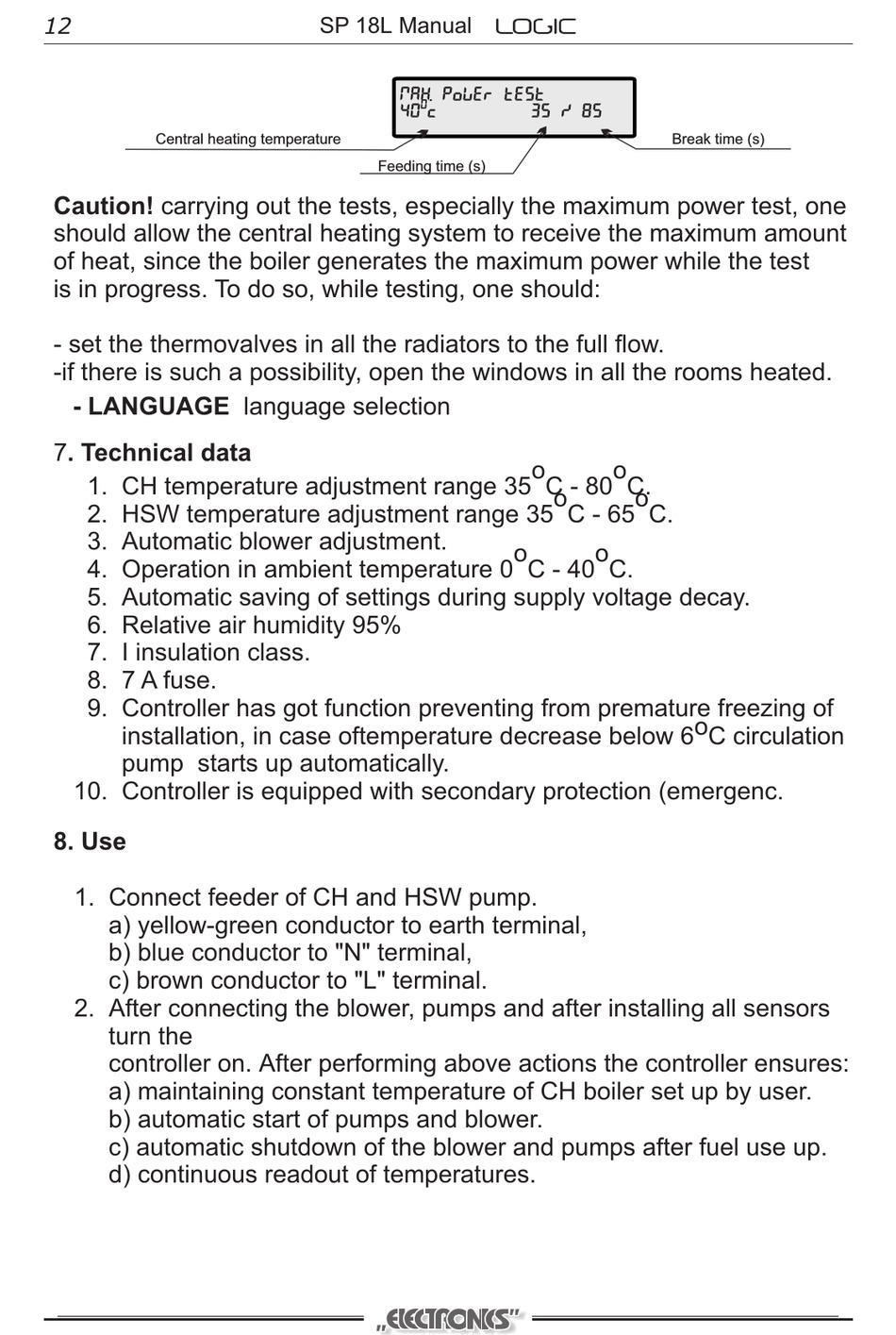

Logic SP-18L Service Manual page 12

12
Central heating temperature
Caution! carrying out the tests, especially the maximum power test, one
should allow the central heating system to receive the maximum amount
of heat, since the boiler generates the maximum power while the test
is in progress. To do so, while testing, one should:
- set the thermovalves in all the radiators to the full flow.
-if there is such a possibility, open the windows in all the rooms heated.
- LANGUAGE language selection
7. Technical data
1. CH temperature adjustment range 35 C - 80 C.
2. HSW temperature adjustment range 35 C - 65 C.
3. Automatic blower adjustment.
4. Operation in ambient temperature 0 C - 40 C.
5. Automatic saving of settings during supply voltage decay.
6. Relative air humidity 95%
7. I insulation class.
8. 7 A fuse.
9. Controller has got function preventing from premature freezing of
installation, in case oftemperature decrease below 6 C circulation
pump starts up automatically.
10. Controller is equipped with secondary protection (emergenc.
8. Use
1. Connect feeder of CH and HSW pump.
a) yellow-green conductor to earth terminal,
b) blue conductor to "N" terminal,
c) brown conductor to "L" terminal.
2. After connecting the blower, pumps and after installing all sensors
turn the
controller on. After performing above actions the controller ensures:
a) maintaining constant temperature of CH boiler set up by user.
b) automatic start of pumps and blower.
c) automatic shutdown of the blower and pumps after fuel use up.
d) continuous readout of temperatures.
SP 18L Manual
MAX. POWER TEST
0
40 C
Feeding time (s)
35 / 85
Break time (s)
o o
o o
o o
o
