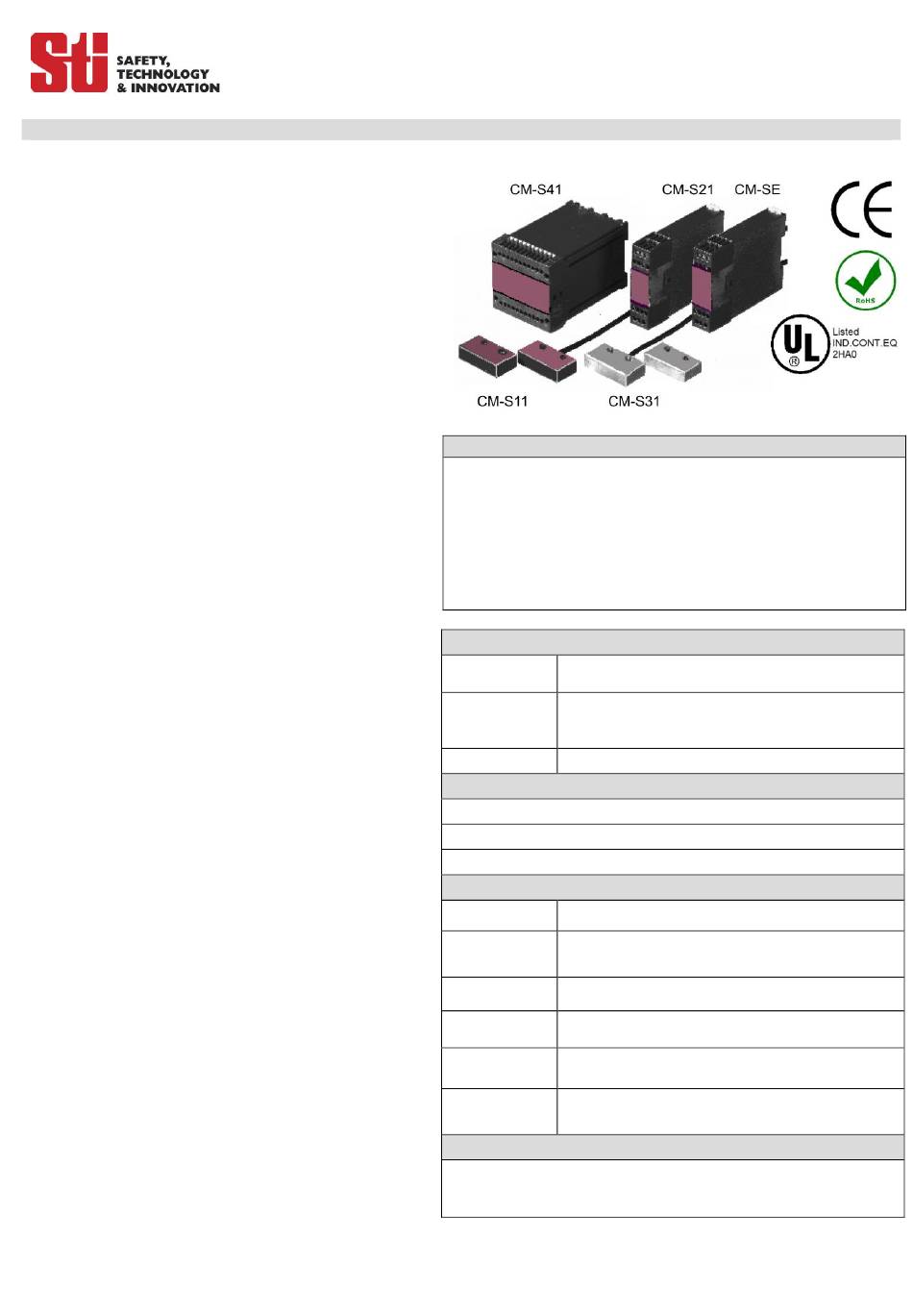

Operating Instructions for CM-Series Safety System
Description:
The CM Series is a tamper resistant non-contact safety
switch system, suitable for use in most types of machine
guarding applications where guard locking is not required.
The system consists of a control unit and 1 or more safety
switches and actuators.
The CM Series non-contact safety switches are easy to
install, tolerant to misalignment and suitable for use in
harsh or wet environments.
The 2-wire connection to each safety switch is
monitored by the control unit, detecting both open
and short circuit faults immediately and returning the
control unit to the off state even if the gate is not
operated.
CM-S41 Control Unit
The CM-S41 is a combined Safety Switch and E-Stop
control unit. Along with the ability to monitor up to four
CM Series safety switches it can also monitor the
normally closed contacts of emergency stop buttons or
mechanical safety switches in dual channel control
circuits. The CM-S41 has 2 normally open safety contact
outputs and 1 normally closed auxiliary output, an
external re-set/proving circuit and LED indication for
'Power', 'Run' and the status of each activated gate
switch.
CM-S21 Control Unit
The CM-S21 control unit is a 24V ac/dc system that can
monitor up to 2 CM Series safety switches. The CM-S21
has 2 normally open safety contact outputs and 1
normally closed auxiliary output, an external re-
set/proving circuit and LED indication for 'Power', 'Run'
and the status of each activated gate switch.
CM-SE Extender Module
The CM-SE Extender module is a 24V ac/dc unit that
can be added to either the CM-S41 or CM-S21 to
monitor an additional 5 CM Series safety switches.
Connection to the main control unit is by a simple 2-wire
bus connection. The status of each guard switch is
shown by the YELLOW LEDs. Additional CMS-E
extender modules can be added to monitor larger
systems.
Safety Switches
The CM Series safety switches are non-contact, tamper
resistant safety switches. Resin encapsulated into an
ABS or Stainless Steel case providing environmental
protection to IP67, the switches can withstand most
conditions including: water, dust and high pressure hose
cleaning.
CM Series safety switches are also available with the
quick disconnect feature.
CM-Series Safety System
CAUTION
(KEEP THIS GUIDE FOR FUTURE REFERENCE)
The information is designed to help suitably qualified personnel
install and operate Omron Robotics and Safety Technologies, Inc.
safety equipment. Before using this product, read this guide
thoroughly along with any relevant European and/or National
Standards E.g. Machinery Directive 2006/42/EC and its
Amendments, Provision and Use of Work Equipment Regulations.
Declaration of conformity and further product information can
be obtained from Omron Robotics and Safety Technologies,
Inc.
APPROVALS
Complies with the relevant sections of the CE marking
CE
directive.
Tested by the Underwriters Laboratories, USA, to
UL
comply with the relevant USA and Canadian
requirements. UL 508 Industrial Control
INTERNATIONAL DIRECTIVES
Machinery Directive 2006/42/EC, Low Voltage Directive 2006/95/EC
Electromagnetic Compatibility Directive 2014/30/EU
RoHS Directive 2011/65/EC
INTERNATIONAL STANDARDS
Safety of Machinery
EN ISO 13849-1
Safety related parts of controls systems.
Safety of Machinery
EN ISO 62061
Functional safety of safety related electrical, electronic
and programmable electronic controls systems.
Safety of Machinery
EN 60204
Electrical equipment of machines
EN 14119
Interlocking devices associated with guards.
EN 60947-5-1
Low voltage switchgear and control gear.
Safety of Machinery
EN 60947-5-3
Specification for low voltage switchgear and control
gear.
CERTIFICATE OF CONFORMITY
A certificate of conformity can be obtained from the STI Web Site
WWW.STI.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for STI CM Series

  • Page 1 The CM Series safety switches are non-contact, tamper CERTIFICATE OF CONFORMITY resistant safety switches. Resin encapsulated into an A certificate of conformity can be obtained from the STI Web Site ABS or Stainless Steel case providing environmental WWW.STI.COM protection to IP67, the switches can withstand most conditions including: water, dust and high pressure hose cleaning.
  • Page 2: System Installation

    PRODUCT IDENTIFICATION AND TERMINAL LAYOUT SYSTEM INSTALLATION This installation guide is to help trained personnel to install the CM-Series non- contact safety switch system. The CM-Series system is suitable for most types of machine guarding applications where guard locking is not required. The safety switches can be fitted to sliding, hinged or removable machine guards.
  • Page 3: Installing The Control Unit

    INSTALLING THE CONTROL UNIT The CM-Series control units are designed to fit standard 35mm symmetric DIN rail. TO FIT: Hook the unit onto the DIN rail (1) and gently push into place (2). The catch should hold the unit securely in place. TO REMOVE: Place the tip of a small screwdriver into the white catch at the bottom of the box (1) and gently lever out.
  • Page 4 CM-S41 CONNECTIONS POWER SUPPLY: 24Vac/dc; 110Vac or 230Vac POWER SUPPLY FUSING: Internal resettable fuse with 2 second delay after fault removal. INDICATION: RED - Power On, GREEN - Run, YELLOW - Guard Status, GREEN - Guard Selected status. GUARD SELECTION: See CM-S41 switch table.
  • Page 5: Operation

    CM-S21 CONNECTIONS POWER SUPPLY: 24V ac/dc POWER SUPPLY FUSING: Internal resettable fuse with 2 second delay after fault removal. INDICATION: RED - Power On, GREEN - Run, YELLOW - Guard Status, GREEN - Guard Selected status. GUARD SELECTION: See CM-S41 switch table. RE-SET &...
  • Page 6 CM-SE CONNECTIONS POWER SUPPLY: 24Vac/dc POWER SUPPLY FUSING: Internal resettable fuse with 2 second delay after fault removal. INDICATION: RED - Power On. YELLOW - guard status indicators. GUARD SELECTION: See CM-SE Guard selection chart. CONNECTION TO MAIN CONTROL UNIT: The CM-SE can be connected to any active guard switch input on a CM-S21 or CM-S41.
  • Page 7 Dimensions CM-S41 (ALL VOLTAGES) Dimensions CM-S41 (mm/inches) 75 / 2.95 74 / 2.91 119 / 4.68 CM-S21 / CM-SE Dimensions CM-S21 & CM-SE (mm/inches) 22.5 / 0.88 84 / 3.3 119 / 4.68 CM-SERIES SAFETY SWITCHES...
  • Page 8 Technical Specification CONTROL UNITS SAFETY SWITCHES Technical Specifications CM-S41 CM-S21 CM-SE CM-S11 CM-S31 24Vac/dc Supply nominal voltage 24Vac/dc 24Vac/dc 110 or 230Vac Nominal power consumption Safety contacts 2 x N/O Auxiliary contact 1 x N/C Output contact rating (max) 4A/230Vac; 2A/24Vdc(Res)@Cos=1 Output contact rating (min) 10V/10mA Output contact fuse rating...
