OWNER'S MANUAL

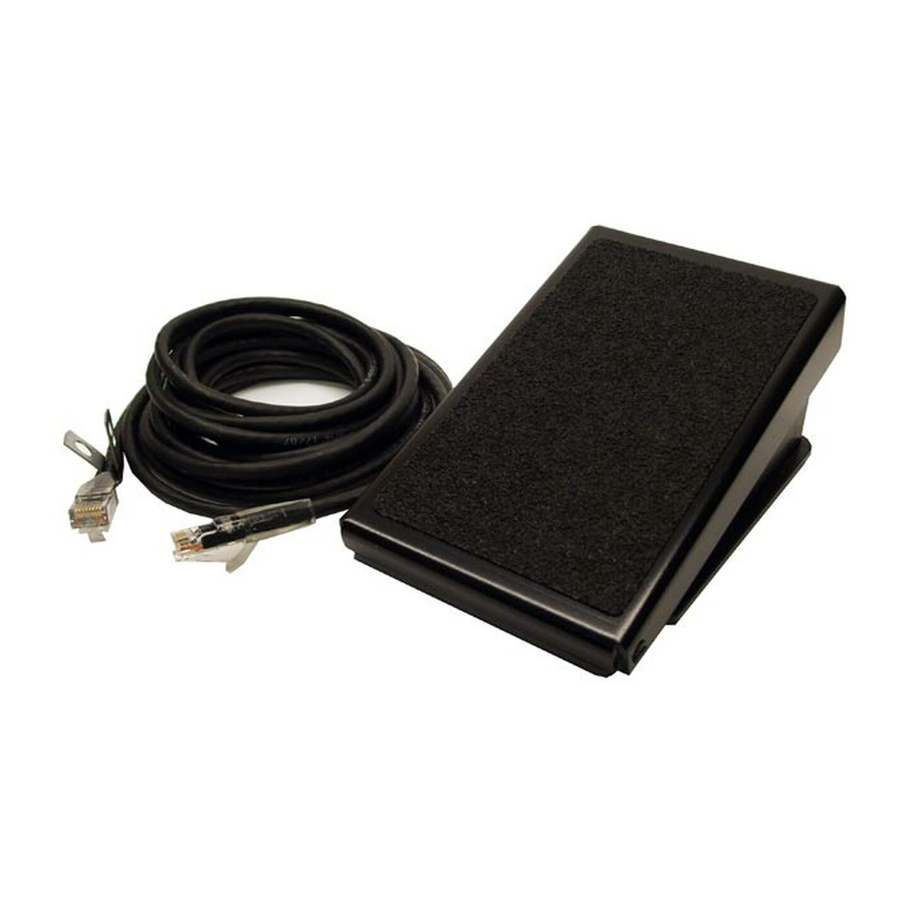

RFCS - RJ45 Foot Control
1.

Safety

Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible ha-
zards are shown in the adjoining symbols or explained in
the text.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible ha-
zards are shown in the adjoining symbols or explained in
the text.
NOTICE Indicates statements not related to personal injury.
Indicates special instructions.
Beware of electric shock from welding electrode or wiring.
Touching the electrode while in contact with the work or
ground can cause electric shock. Always wear dry
gloves. Keep all panels and covers closed.
2.

Typical Connections And Operation

2
3
1
OM-245 021C
2012−05
Breathing welding fumes and gases can harm your
health. Welding requires good ventilation. If ventilation is
impossible, such as when welding in a confined space,
use an air-supplied respirator.
Welding sparks can cause fire or explosion. Move flam-
mables away. Do not weld on closed tanks or barrels −
they can explode. Clean tanks or barrels properly.
Arc rays can burn eyes and skin − wear a welding helmet
with correct filter, and cover exposed skin with nonflam-
mable clothing.
Wear safety glasses with side shields.
4
1
Welding Power Source Foot
Control Receptacle
2
Strain Relief (Optional
Installation)
3
Cord
4
Foot Control
If desired, route cord through strain
relief. Remove screw, as shown,
from welding power source, and
use screw to secure strain relief.
Plug one end of cord into receptacle
on welding power source.
OPERATION:
Press pedal lightly to turn weld
output and gas flow on. Press pedal
further to increase weld output.
Raise pedal to reduce amperage,
crater-out, and turn off weld output
and gas flow.
.
See welding power source
Owner's Manual for additional
information.
Tools Needed:
Torx T25
805 465-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFCS-RJ45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Miller RFCS-RJ45

  • Page 1 OWNER’S MANUAL OM-245 021C 2012−05 RFCS - RJ45 Foot Control Safety Indicates a hazardous situation which, if not avoided, Breathing welding fumes and gases can harm your could result in death or serious injury. The possible ha- health. Welding requires good ventilation. If ventilation is zards are shown in the adjoining symbols or explained in impossible, such as when welding in a confined space, the text.
  • Page 2 Cord Replacement For Models Without External Connector Unplug foot control cable from power source before starting replacement cable. Removing Existing Cord. Phillips Head Screws Squeeze pedal and base together, and remove the two Phillips head screws as shown in Figures 1 and After screws are removed, lift pedal off base.
  • Page 3 Troubleshooting Trouble Remedy No weld output Be sure foot control cord is plugged into matching receptacles on welding power source and inside of the foot control. Not enough weld amperage Set weld amperage to highest desired value on welding power source Material Thickness/Amperage control.
