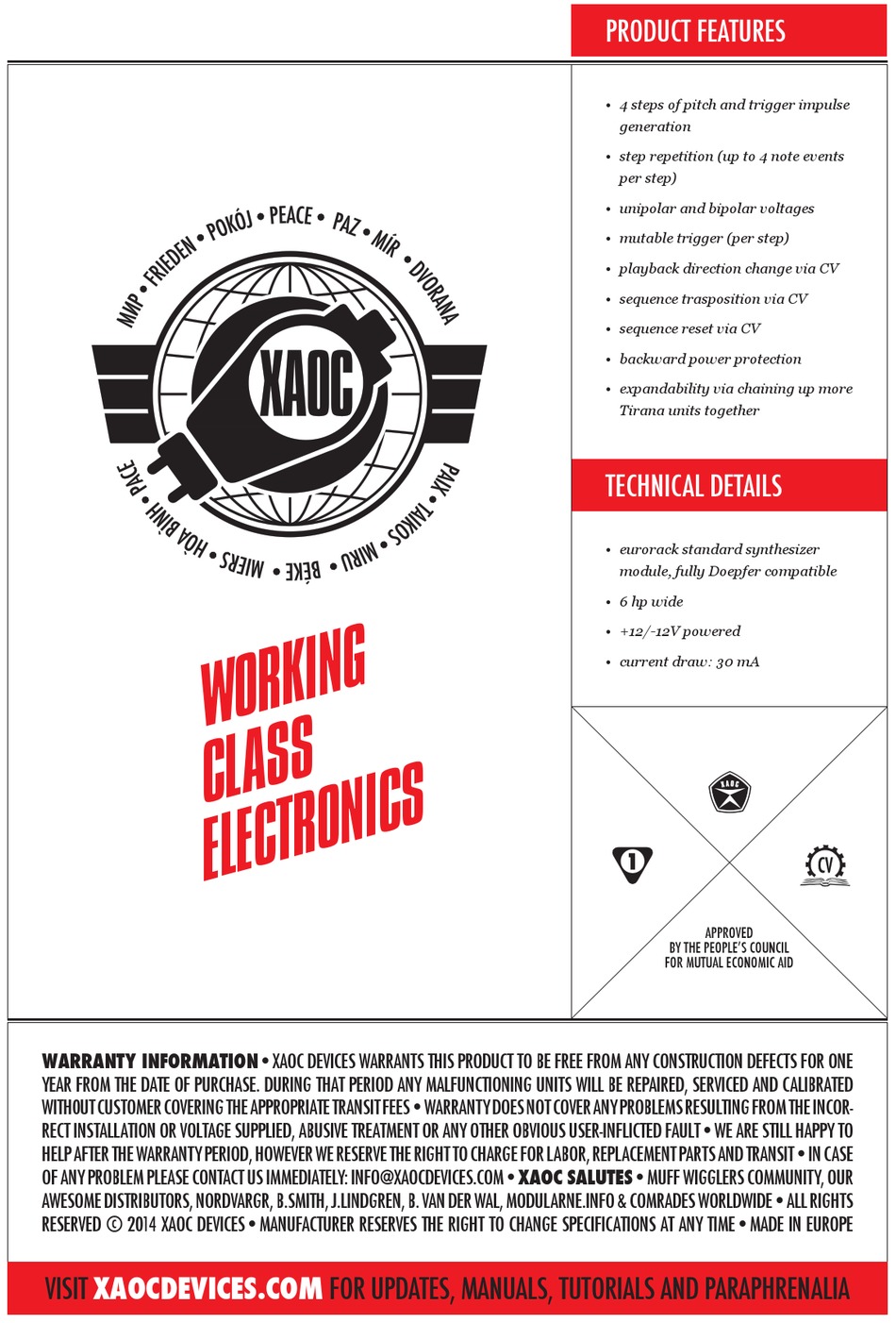

Xaoc Devices Tirana Operator's Manual page 4

W O R K I N G
C L A S S
E L E C T R O N
WARRANTY INFORMATION•xaOC dEviCES warranTS THiS PrOduCT TO BE frEE frOm anY COnSTruCTiOn dEfECTS fOr OnE
YEar frOm THE daTE Of PurCHaSE. during THaT PEriOd anY maLfunCTiOning uniTS wiLL BE rEPairEd, SErviCEd and CaLiBraTEd
wiTH0uT CuSTOmEr COvEring THE aPPrOPriaTE TranSiT fEES•warranTY dOES nOT COvEr anY PrOBLEmS rESuLTing frOm THE inCOr-
rECT inSTaLLaTiOn Or vOLTagE SuPPLiEd, aBuSivE TrEaTmEnT Or anY OTHEr OBviOuS uSEr-infLiCTEd fauLT•wE arE STiLL HaPPY TO
HELP afTEr THE warranTY PEriOd, HOwEvEr wE rESErvE THE rigHT TO CHargE fOr LaBOr, rEPLaCEmEnT ParTS and TranSiT•in CaSE
Of anY PrOBLEm PLEaSE COnTaCT uS immEdiaTELY: infO@xaOCdEviCES.COm•XAOC SALUTES•muff wiggLErS COmmuniTY, Our
awESOmE diSTriBuTOrS, nOrdvargr, B.SmiTH, j.LindgrEn, B. van dEr waL, mOduLarnE.infO & COmradES wOrLdwidE•aLL rigHTS
rESErvEd © 2014 xaOC dEviCES•manufaCTurEr rESErvES THE rigHT TO CHangE SPECifiCaTiOnS aT anY TimE•madE in EurOPE
XAOCDEVICES.COM
VISIT
I C S
fOr uPdaTES, manuaLS, TuTOriaLS and ParaPHrEnaLia
PRODUCT FEATURES
• 4 steps of pitch and trigger impulse
generation
• step repetition (up to 4 note events
per step)
• unipolar and bipolar voltages
• mutable trigger (per step)
• playback direction change via CV
• sequence trasposition via CV
• sequence reset via CV
• backward power protection
• expandability via chaining up more
Tirana units together
TECHNICAL DETAILS
• eurorack standard synthesizer
module, fully Doepfer compatible
• 6 hp wide
• +12/-12V powered
• current draw: 30 mA
APPROVED
BY THE PEOPLE'S COunCiL
FOR MUTUAL ECONOMIC AID
