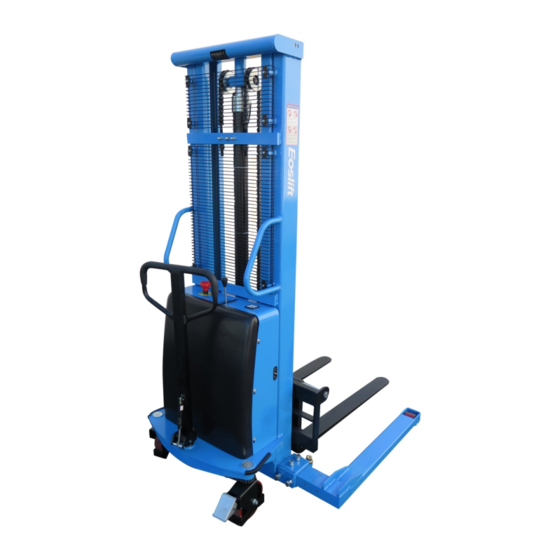

Semi-Electric Stacker
Operating Instructions
S15J
BEFORE YOU BEGIN
Welcome to use our electric stacker. Your stacker is made of high quality steel and SPED mast and was
designed to give a durable, reliable and easy to use product. For your safety and correct operation, please
carefully read this instruction book and warnings on the stacker before using it.This Operation Instruction of
the stacker is edited for you to completely acquire and master the safety operation of the stacker.
All of the information reported herein is based on data available at the moment of printing. We reserve the
right to modify our own products at any moment without notice and incurring in any sanction. So, it is
suggested to always verify possible updates.
S15J
Eoslift Automation Technology Corp.
No.99, Yanjia Road, Yuantong Town, Haiyan, Zhejiang
6
Advertisement
Table of Contents
Related Manuals for Eoslift S15J
Summary of Contents for Eoslift S15J
- Page 1 All of the information reported herein is based on data available at the moment of printing. We reserve the right to modify our own products at any moment without notice and incurring in any sanction. So, it is suggested to always verify possible updates. S15J Eoslift Automation Technology Corp. No.99, Yanjia Road, Yuantong Town, Haiyan, Zhejiang...
-
Page 2: Table Of Contents
CONTENTS 1.1 Technical Specifications KJ(Door frame) 1 Technical Specifications Page 1 Model S15J 2 Installation & Adjustment Page 3 Manufacture EOSLIFT 3 Safety Guidance Page 4 Load Capacity 3300 Inner Width of Legs 33-49 4 Maintenance Page 4 B1(in) Outer Width of Legs... -
Page 3: Installation & Adjustment
1.2 Residual Capacity at different load centre with Lift height 118in. KJ(Door frame) Capacity Chart Capacity (LB) 4000 3500 3000 2500 2000 1500 1000 Raisde to 118 in. Load Centre(in.) 2. Installation & Adjustment 2.1 Adjust the screws on the mast guard to removing and re-attaching it. The screws are always remaining on the guard. -
Page 4: Safety Guidance
3. Safety Guidance Battery Power System 5.1 12V/120AH lead-acid storage battery is used in this series stacker. 3.1 Operator should read all warning signs and instructions here and on the stacker before using it. 5.2 The storage battery should be put in the special anti-spilling case which should be fixed with bolts. 3.2 Do not operate a stacker unless you are familiar with it and have been trained or authorized to do so. -
Page 5: Transportation, Loading, Commission & Storage
8. Transportation, Loading, Commissioning And Storage 9. Troubles Shooting If the truck has to be transported for a long distance, it should be packed in the container in order to avoid collision during transportation. 8.1 The truck is packed properly in a container and transported by hoisting apparatus. Lifting points are on both sides of the stacker, which are identified as the below picture. -
Page 6: Electric Wires Diagram
10. Electric Wires Diagram 11. Hydraulic Flow Diagram Circuit Diagram GB 12V 160AH... -
Page 7: Parts List
12 Parts List Universal wheel with brake Universal wheel with brake Stock Number Description Qty. WC 02000237 steering wheel frame with brake,black WC02000234 steering axle sleeve 1 WC02000243 chain wheel WC02000244 backing ring WC02000245 wheel cap WC02000240 pressure spring WC02000238 brake plate,galvanized WC02000241 brake pedal... - Page 8 Universal wheel without brake Universal wheel without brake Stock Number Description Qty. WC 02000246 guide pulley seat,black GB276,deep groove ball bearing6204， WC02000022 two-side dusty cover WC02000234 steering axle sleeve 1 iron core PU wheelφ180×50,PU red, WC02000226 iron coreblack WC02000285 nylon wheelφ180×50(flower shape wheel) WC02000235 steering axle sleeve2 GB70.1 Hex socket screw M10×100,...
- Page 9 Handle assembly Handle assembly Stock Number Description Qty. WC 02000252 handle assembly WC02000248 gas spring WE07000008 GB894.1 Circlip for Shaft 10,black WC02000249 axle 2,galvanized WC02000247 handle seat,black WC02000242 brak pedal axis WC02000251 axle 3,galvanized WC02000250 axle sleeve,galvanized WE07000009 GB894.1 Circlip for Shaft 12,black GB276,deep groove ball bearing6205，...
- Page 10 Motor Box Motor Box Stock Number Description Qty. WC 02000253 Electrical Cabinet,5012 WC02000269 hydraulic pumpDC12160 12V 160KW WC04000022 fuse connect seat RQD-1 220V 800A WC04000020 The abrupt stop switch ZJK250A WC04000013 nstrument JY-99 20V WE03000006 GB818 Screw M5×12,galvanized WC01000014 charger socket line GB70.1 Hex socket screw M6×25, WE03000015 galvanized...
- Page 11 Cylinder assembly Cylinder assembly Stock Number Description Qty. WC 01000017 Black cylinder assembly WC02000303 oil cylinderseaming part,black WC02000275 guide sleeve WC02000272 hood,galvanized WC02000304 piston rod WC02000274 gasket,galvanized WC02000273 piston WC02000279 GB3452.1,O-ringφ26.2×2.4 WE05000011 GB93 Spring washer 24,galvanized WE04000018 GB6171 Hex nut M24×1.5,galvanized WC02000278 ZS50 guild ring 50×55×14.8 WC02000276...
- Page 12 Plate link chain Chain Stock Number Description Qty. WC 02000325 Leaf chain WJ11900012 Leaf chain WJ11900006 LH1223 Long end joint Stock Number Description Qty. WJ11900005 Spherical nut WC 02000219 chain WJ11900004 GB6171,nut M14×1.5×12.8 WC02000263 screw(right) WJ11900003 GB91,Cotter pin 2×16 WC02000262 screw sleeve WJ11900002 GB91,Cotter pin 2×32...
- Page 13 Mast assy - outer Mast assy - outer Stock Number Description Qty. inner mast,5012 WC 02000299 GB893.1 Cieclip for hole 47,black WE07000006 GB276,deep groove ball bearing6204， WC02000022 two-side dusty cover WE07000004 GB894.1 Circlip for Shaft 20,black WC02000317 chain wheel（Leaf chain） Gb77 Hexagon flat set screw M12×20, WE03000019 galvanized...
- Page 14 Oil tube Front wheel assembly Stock Number Description Qty. The right fork leg welded,5012 WC 02000713 The left fork leg welded,5012 WC02000712 Stock Number Description Qty. deep groove ball bearing6204 fuel injection pipe WC02000022 WC 02000266 Circlip for Shaft 20,black oil return pipe WE07000004 WC02000301...
- Page 15 Mast assy - inner Mast assy - inner Stock Number Description Qty. outer mast,5012 WC 02000832 GB6170 Hex nut M5,galvanized WE04000005 GB95 Plain washer 5,galvanized WE05000004 GB70.1 Hex socket screw M5×16, WE03000016 galvanized gauze pad,black WC02000292 gauze pad,black WC02000302 WE04000013 GB802 Cap Nut M10,galvanized WE04000014 GB802 Cap Nut M8,galvanized...
- Page 16 Forks Stock Number Description Qty. fork guide plate,black WC 02000323 axle (830),galvanized WC02000283 adjustable bolt,galvanized WC02000284 telescope-feed fork,black WC02000711 WE07000011 GB894.1 Circlip for Shaft 32,black Gb77 Hexagon flat set screw M12×20, WE03000019 galvanized WC02000232 steel wheel cap WC02000231 steel wheel GB276,deep groove ball bearing6205，...
