HDMI-HDBT Extender - 4K60 PoC Rx
HDBase-T kompatibler 4K HDMI Empfänger mit IR und RS232
HDBase-T compatible 4K HDMI receiver with IR and RS232
7488000129
Art.-Nr.
7488000129
Ref.-No.
Inbetriebnahme- und Bedienungsanleitung
Commissioning and operating instructions
D
GB
07.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4K60 PoC Rx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kindermann 4K60 PoC Rx

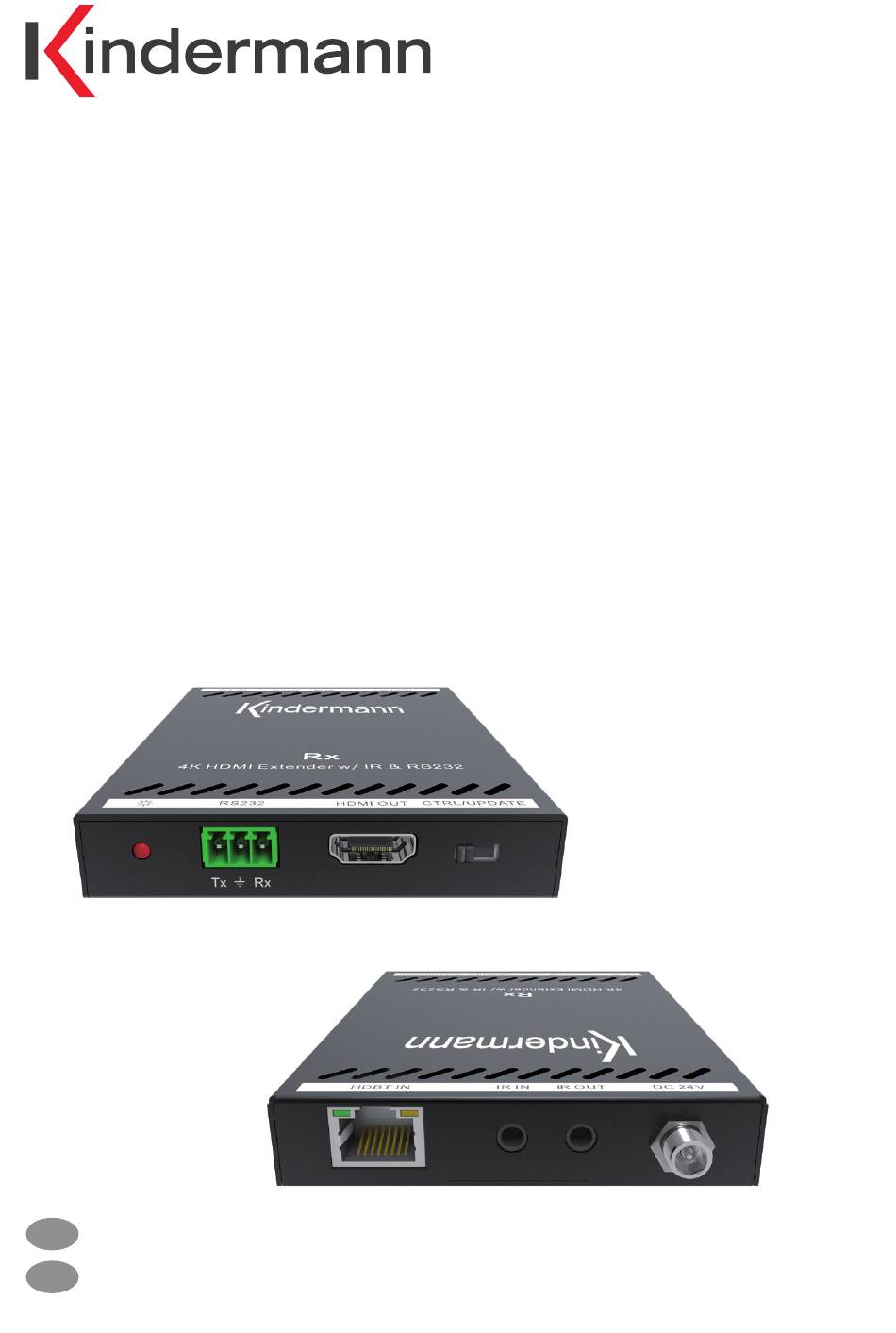

  • Page 1 HDMI-HDBT Extender - 4K60 PoC Rx HDBase-T kompatibler 4K HDMI Empfänger mit IR und RS232 HDBase-T compatible 4K HDMI receiver with IR and RS232 7488000129 Art.-Nr. 7488000129 Ref.-No. Inbetriebnahme- und Bedienungsanleitung Commissioning and operating instructions 07.2020...
  • Page 2: Table Of Contents

    Inhaltsverzeichnis Vorwort .............................. 3 Sicherheitshinweise und Vorsichtsmaßnahmen ................3 Gerätebeschreibung / Bestimmungsgemäße Verwendung ............. 4 3.1. Eigenschaften ..........................4 3.2. Lieferumfang .......................... 4 Anschlussschema .......................... 5 Bedien- und Anzeigekomponenten .................... 6 Anschließen ............................6 Technische Daten .......................... 7 RS232-Belegung ..........................7 CE-Konformitätserklärung ........................ 8 10. Verfügbares Zubehör ........................8 Table of contents Foreword ............................9 Safety Instructions and precautions ....................9 Device description / Intended use ....................10 3.1. Features ............................. 10 3.2. Scope of delivery ........................ 10 Connection diagram .......................... 11 Operating and display components ....................12 Installation ............................12 Technical data ........................... 13 RS232-assignment ..........................13 CE declaration of conformity ......................14 10. Available accessories ........................14...
  • Page 3: Vorwort

    Unterstützung bei der Wartung zu erhalten. Im ständigen Bemühen, das Produkt zu verbessern, behalten wir uns das Recht vor, Funktionen oder Parameter ohne vorherige Ankündigung oder Verpflichtung zu ändern. Die neuesten Informationen erhalten Sie von Ihrem Kindermann Fachhändler. Sicherheitshinweise und Vorsichtsmaßnahmen •...
  • Page 4: Gerätebeschreibung / Bestimmungsgemäße Verwendung

    3. Gerätebeschreibung / Bestimmungsgemäße Verwendung Der HDMI-HDBT Extender - 4K60 PoC Rx ist ein HDBaseT kompatibler Empfänger mit PoC Unterstützung, der Signale aus bis zu 70 m Entfernung per CAT-6/7-Kabel empfängt und in HDMI zurückwandelt. Die Durchleitung von IR- und RS232 Signalen zur Steuerung lokaler Quellgeräte ist möglich.
  • Page 5: Anschlussschema

    4. Anschlussschema HDMI: RS232: HDBaseT: ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ▼ ◀ ▼ ▼ 1080P 70 m ▼ 4K@60Hz 4:2:0 40 m ▼ ▼ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Receiver Emitter Emitter Receiver � � � �...
  • Page 6: Bedien- Und Anzeigekomponenten

    5. Bedien- und Anzeigekomponenten Vorderseite Rückseite Name Beschreibung Power LED Leuchtet rot wenn Spannung anliegt RS232 Euroblock/Phoenix Buchse zum Einspeisen von RS232 Steuerbefehlen HDMI OUT HDMI-Anschluss für den Anschluss des Ausgabegerätes (z. B. Display/Projektor) Schalter zum Defi nieren der RS232-Verbindung •...
  • Page 7: Technische Daten

    7. Technische Daten Ein- und Ausgänge Eingang HDBT Eingang Ausgang HDMI Ausgang Steuerung IR Eingang, IR Ausgang, RS232 Allgemein Max. Videoauflösung 4K×2K@60Hz 4:2:0, 1080p@60Hz Übertragungsstandard HDBaseT Übertragungsdistanz 1080p Signale bis 70 m, 4K Signale bis 40 m Bandbreite 10.2Gbps Video Standard HDMI 1.4 mit HDCP 2.2, abwärtskompatibel Leistungsaufnahme 10 W max.
  • Page 8: Ce-Konformitätserklärung

    Die aktuell gültige CE-Erklärung kann unter folgender URL eingesehen und heruntergeladen werden: https://shop.kindermann.de/erp/KCO/avs/7/7488/7488000129/12_Zertifizierungen/CE7488000128-9.pdf 10. Verfügbares Zubehör • Passender HDBT Empfänger HDMI-HDBT Extender - 4K60 PoC Rx (7488 000128) • Netzteil (24V DC, 1,25A) (7488 000132) • IR Receiver/Emitter für HDMI Extender (7488000026) •...
  • Page 9: Foreword

    This manual is for reference only. Contact your local dealer for maintenance assistance. In a constant effort to improve the product, we reserve the right to change functions or parameters without prior notice or obligation. For the latest information, please contact your local Kindermann dealer. Safety Instructions and precautions •...
  • Page 10: Device Description / Intended Use

    3. Device description / Intended use The HDMI-HDBT Extender - 4K60 PoC Rx is an HDBaseT compatile receiver with PoC support which converts HDMI signals transmitted via up to 70 m CAT-6/CAT-7 cable back to HDMI and allows IR and RS232 passage to control local source devices.
  • Page 11: Connection Diagram

    4. Connection diagram HDMI: RS232: HDBaseT: ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ▼ ◀ ▼ ▼ 1080P 70 m ▼ 4K@60Hz 4:2:0 40 m ▼ ▼ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Receiver Emitter Emitter Receiver � � �...
  • Page 12: Operating And Display Components

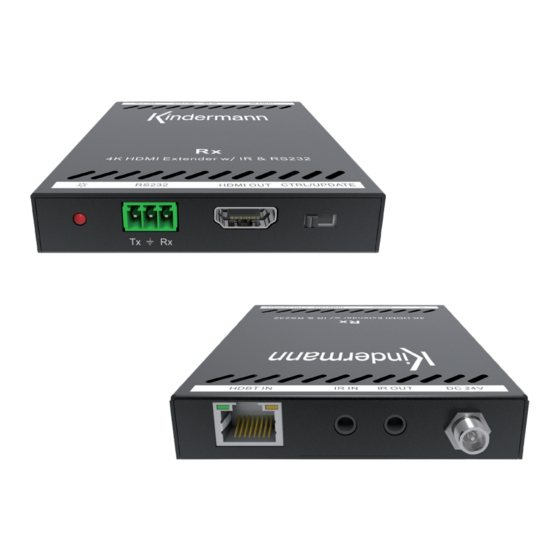

    5. Operating and display components Front side Rear side Name Description Power LED Lights red when voltage is applied RS232 Euroblock/Phoenix socket for sending / receiving commands HDMI OUT HDMI connector for connecting an output device (e. g. display / projector) Switch to defi ne the RS232 connection •...
  • Page 13: Technical Data

    7. Technical data Inputs and Outputs Input HDBT input Output HDMI output Control IR input, IR output, RS232 General Max. Video resolution 4K×2K@60Hz 4:2:0, 1080p@60Hz Transmission standard HDBaseT Transmission distance 1080p signals up to 70 m, 4K signals up to 40 m Bandwidth 10.2Gbps Video standard...
  • Page 14: Ce Declaration Of Conformity

    The currently valid CE declaration can be viewed and downloaded at the following URL: https://shop.kindermann.de/erp/KCO/avs/7/7488/7488000129/12_Zertifizierungen/CE7488000128-9.pdf 10. Available accessories • Suitable HDBT receiver HDMI-HDBT extender - 4K60 PoC Rx (7488 000128) • Power supply unit (24V DC, 1.25A)(7488000132) • Compatible IR Receiver/Emitter for HDMI Extender (7488 000026) •...
