Page 1

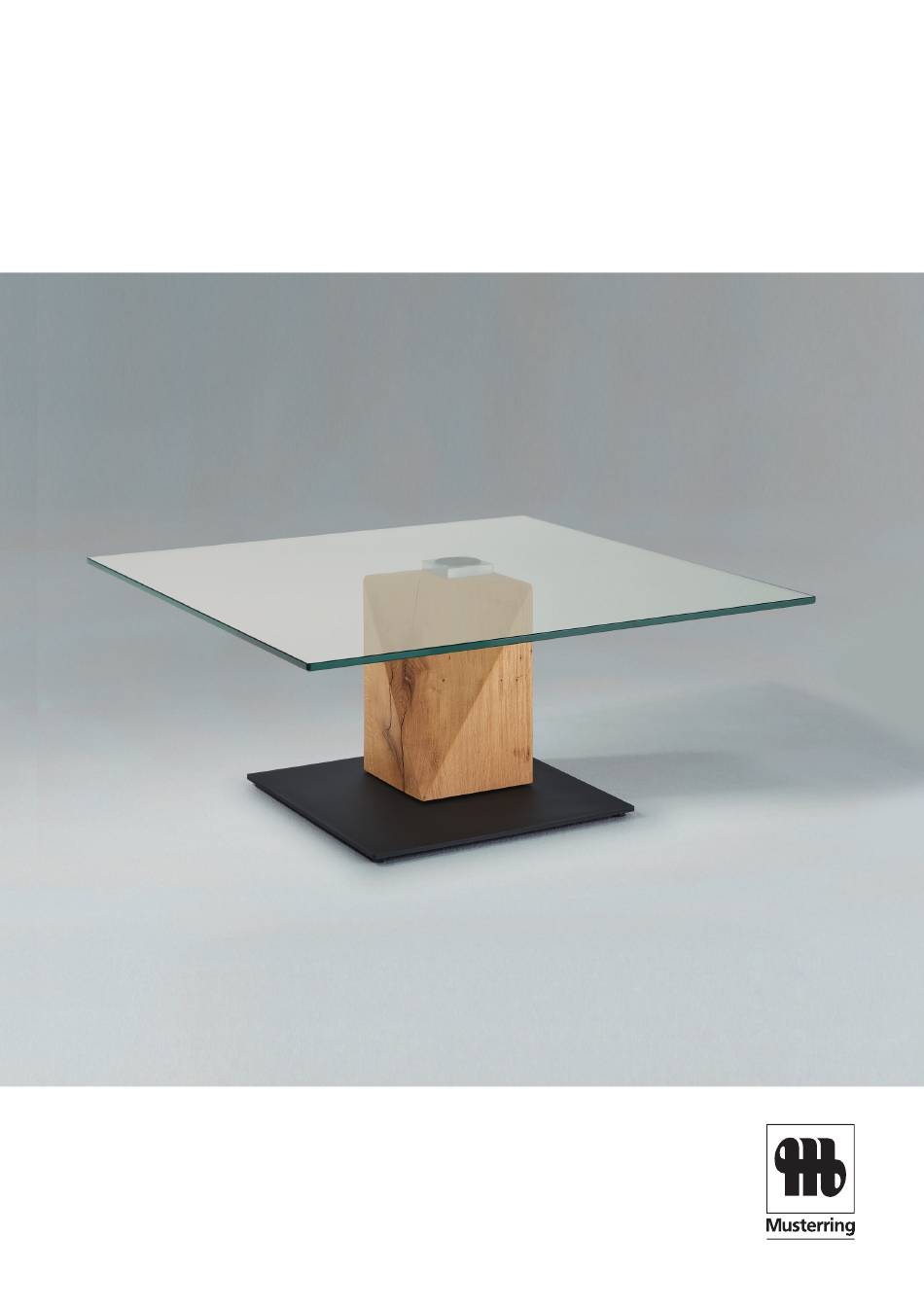

Musterring L A R E N A Aufbauanweisung (Bitte aufbewahren) (Stand 16.10.2020)
Page 2
Auf Musterring Möbel ist Verlass. Die Garantiebestimmungen, Gebrauchs- und Pflegean- a h r e a r a n t i e weisungen sind im Musterring Möbel-Gütepass geregelt. gemäß Gütepass Service-Information Sie erreichen uns per E-Mail oder über das Servicetelefon zu den üblichen Geschäftszeiten.
Page 3
Aufbauanleitung / assembly instructions mod. M150 - M152 + M180 - M181 (Platte: rund / top: round) 2. Die Platte auspacken und mittig auf das 1. Das Gestell auspacken und aufstellen. Gestell legen. 1. Unpack the metal base. 2. Unpack the slap and put it onto the middle of the base.
Page 4
Aufbauanleitung / assembly instructions mod. M153 - M155 + M183 - M184 (Platte: rund / top: round) 8x M6 x 25 1.Montagematerial. 2. Mit Hilfe eines Innensechskant-Schrauben- schlüssels mit je 2 Schrauben die Zargen 2. Fitting material. miteinander verschrauben. 2. Use a hex-wrench to screw the frames together.
Page 5
Aufbauanleitung / assembly instructions mod. M168 M10 x 70 M10 x 16 1. Montagematerial 2. Die Glasplatte auf gepolsterten Montageböcken ablegen. 1. fitting material 2. Lay the glass onto padded assembling trestles. M10 x 70 3. Die Gewindestifte in beide Klebeteile 4.
Page 6
M10 x 16 5. Die Wange rechtwinklig zur Längsachse 6. Den Bolzen in die untere Wange einstecken. ausrichten und dann auf beide Gewindestifte je 6. Stick the bolt of the upper string board into the eine Mutter aufrehen. hole of the lower string board. 5.
Page 7
Aufbauanleitung / assembly instructions mod. M171 M10 x 16 M10 x 355 1. Montagematerial 2. Die Glasplatte auf gepolsterten Montageböcken ablegen. 1. fitting material 2. Lay the glass onto padded assembling trestles. M10 x 355 3. Die Gewindestange in das Klebeteil eindrehen. 4.
Page 8
Verdrehschutz anti-twist device 5. Das graue Verdrehschutz-Pad auflegen. 6. Die Gewindestange der Glasplatte in die Bohrung des Unterbaus einstecken. 5. Put the grey anti-twisting device onto the metal of the base. 6. Stick the threaded bolt of the glass into the hole of the base.
Page 9
9. Fertiger Couchtisch. Sollte die Glasplatte einseitig etwas hängen, kann dies durch Herausdrehen der schwarzen Stellschrauben, welche sich unter der Bodenplatte befinden, korrigiert werden. 9. Ready. If the glas ist not horizontal, please adjust the black screws, which are located beneth the ground plate. Bitte beachten: Die Risse im Holzklotz sind gewollt und unvermeidlich.
