Rf Connections - Triad RF Systems Microhard IPnDDL Integration Manual

3.2

RF Connections

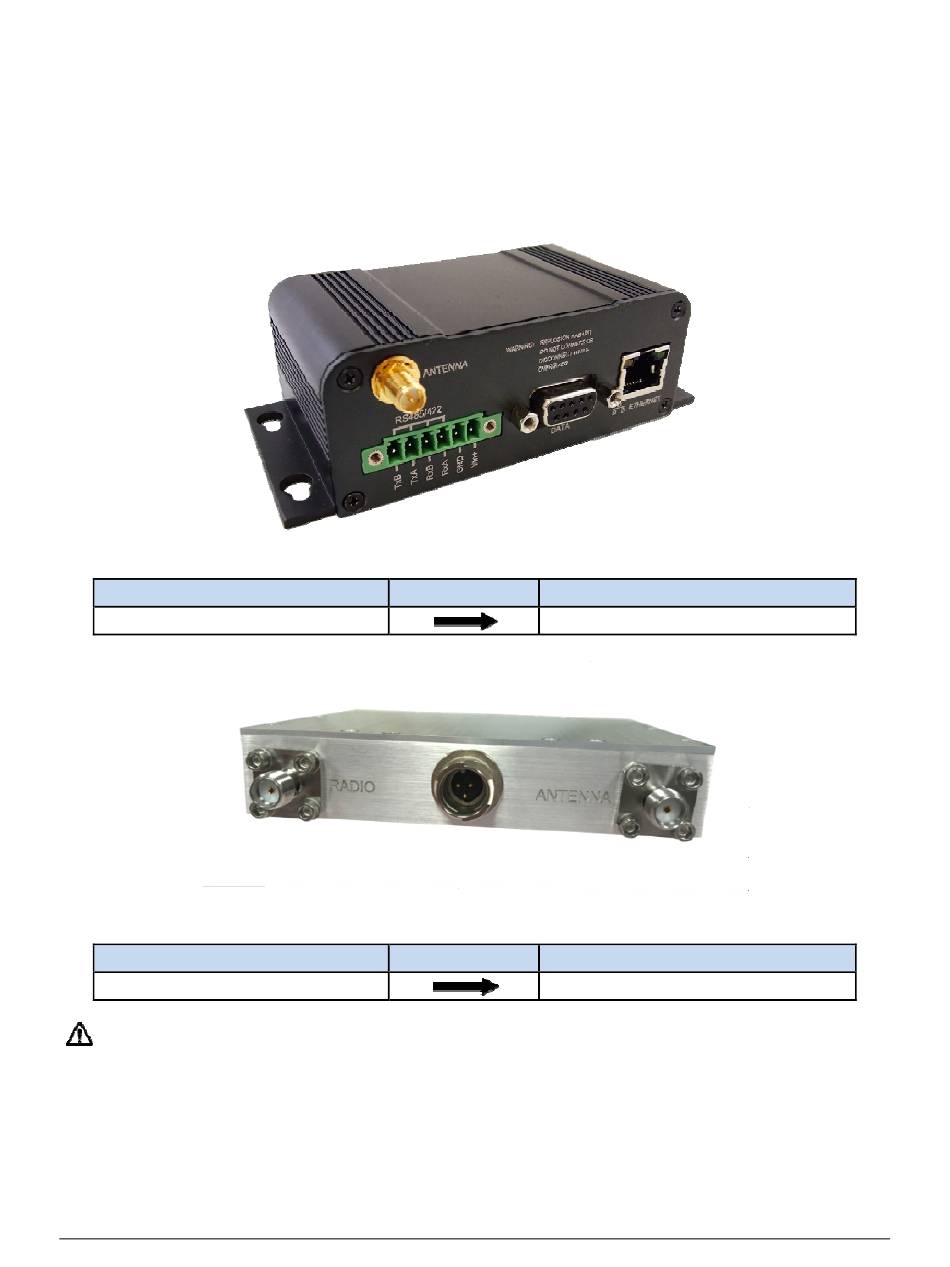

Below is a visual representation of the IPnDDL and Triad BDA RF Connections, as well as a
table of the required connections between the IPnDDL, Triad BDA, and Antennae.
MicroHard IPnDDL
ANTENNA
Visual representation only. Please consult specification sheet for RF connections
Triad BDA
ANTENNA
Triad RF products are unconditionally stable and can operate into an open
circuit up to a certain power output level. Refer to the specification sheet for
those limits. However, it is good practice to avoid operating the amplifier into
an open circuit for an extended period of time.
Triad RF Systems, Inc. Confidential
Connect to
Connect to
Triad BDA
RADIO
Your Equipment
Antenna
Page 6
