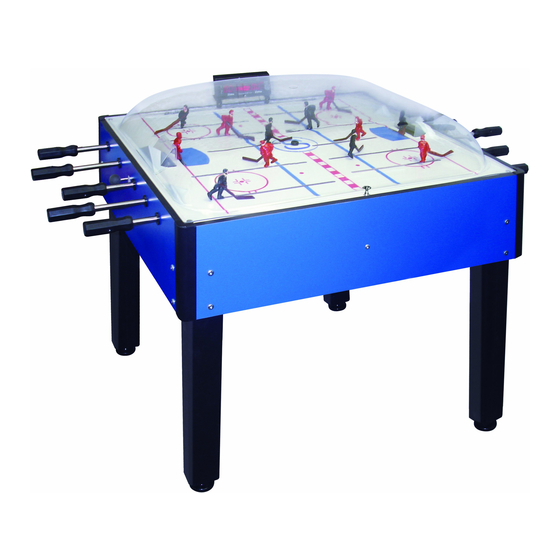

Shelti Blue Line Hockey Breakout Assembly Instructions

Thank you for purchasing a Shelti product. All of us at Shelti want you to be completely satis ed with your
Breakout Dome Hockey game, so feel free to contact us for help with the assembly of your product, Shelti parts,
or other information you may require
Tools Required:
13 mm Wrench or Socket (Included)
5 mm Hex Wrench (Included)
Phillips Head Screw Driver
Level
Step #1
• Lift dome hockey cabinet out of the box and lay it on its side on a smooth surface.
•
Remove the legs from box and locate the accessory package
Contents
Dome Hockey Cabinet
Universal Leg Assembly
Accessory Package
Assembly Instructions
Accessory Package Contents
5½" Carriage Leg Bolt
4¾" Carriage Leg Bolt
Leg Washer
Leg Nut
Hex Wrench - 5 mm
Hex Wrench - 4 mm
13 mm Wrench
8 mm Wrench
Electronic Scoring Unit
Power Supply Adaptor 6v
Flat Head Screw - Phillips Head M3x14 mm
9/16 Washer - M6
Nut - M5
Rounded Head Screw - Phillips Head M3x14mm
Washer - M5
Dome Hockey Puck (1" dia.)
Assembly Instructions
Part Number
EM-DPA-0
EM-ULA-0
EM-ASA-0
210-0154-0
Part Number
301-0074-0
301-0073-0
303-0035-0
203-0023-0
205-0068-0
205-0057-0
210-0180-0
210-0183-0
301-0044-0
303-0026-0
302-0016-0
301-0045-0
303-0027-0
201-0018-0
Quantity
1
4
1
1
Quantity
4
4
8
8
1
1
1
1
1
1
2
2
2
1
1
3
