Tajfun Planina EGV 45AHK Operating Instructions Manual page 6

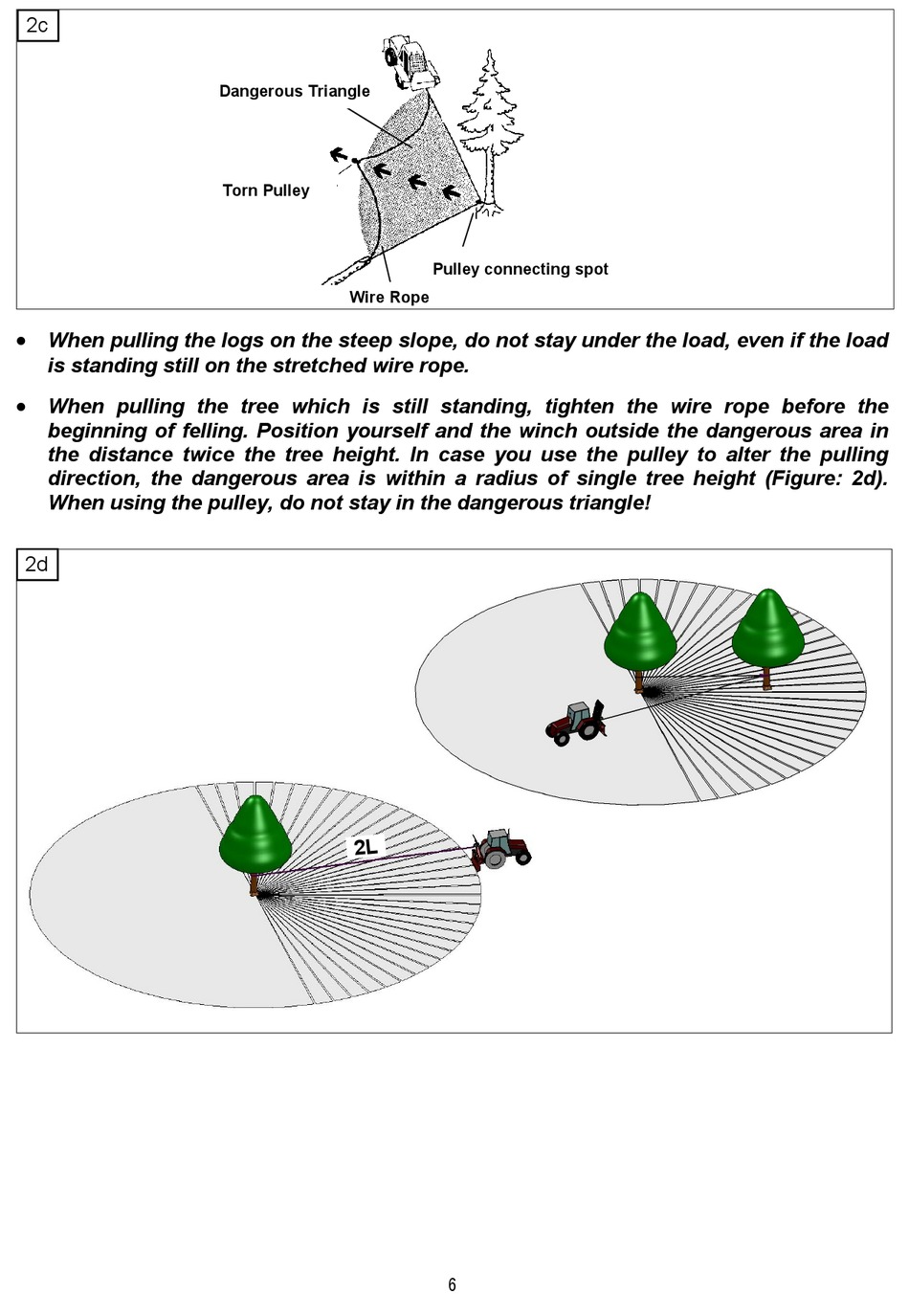

2c

When pulling the logs on the steep slope, do not stay under the load, even if the load
is standing still on the stretched wire rope.

When pulling the tree which is still standing, tighten the wire rope before the
beginning of felling. Position yourself and the winch outside the dangerous area in
the distance twice the tree height. In case you use the pulley to alter the pulling
direction, the dangerous area is within a radius of single tree height (Figure: 2d).
When using the pulley, do not stay in the dangerous triangle!
2d
nevarni trikotnik
Dangerous Triangle
odtrgani škripec
Torn Pulley
Wire Rope
vlečna vrv
mesto pritrditve škripca
Pulley connecting spot
6
