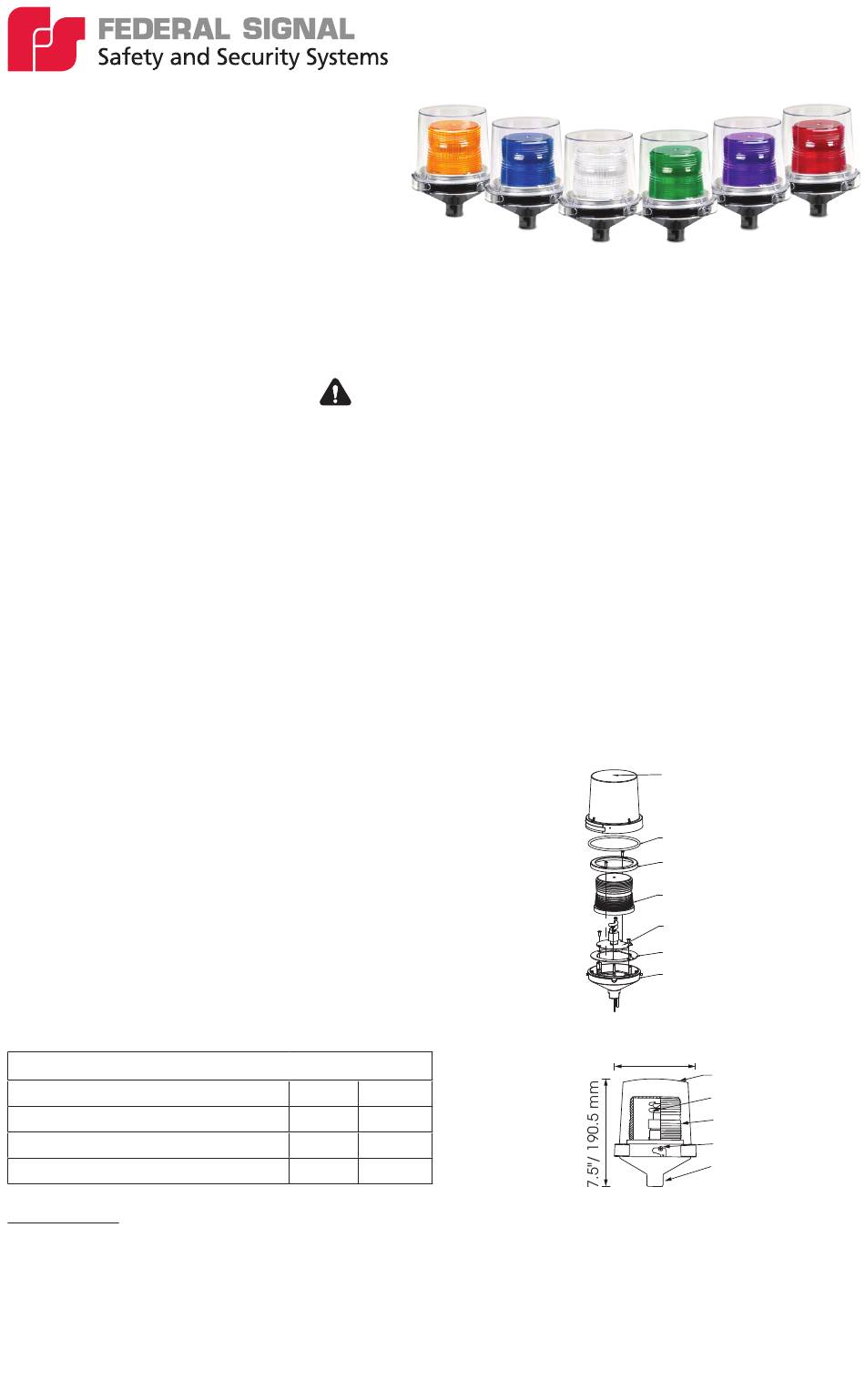

Models 224XST, 225XST,
225XST-I and 225XST-N

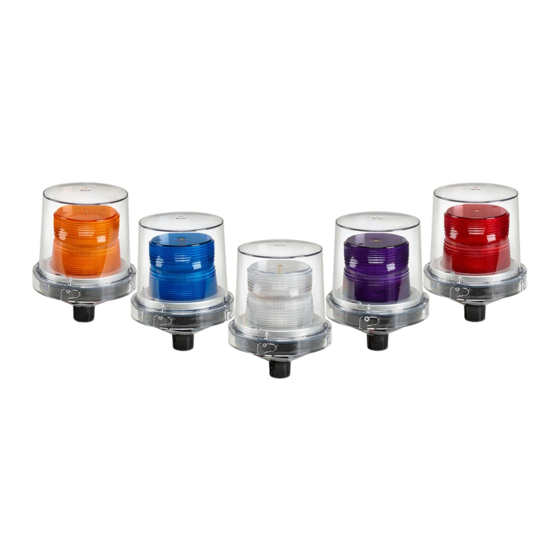

Electraray Hazardous Location Strobe Lights
®
Installation and Maintenance Instructions
Limited Warranty: Product's warranty can be found at www.fedsig.com/SSG-Warranty.

Safety Messages to Installers and Users

safety instructions. Failure to do so may result in property damage, serious injury, or death.
• HIGH VOLTAGE SHOCK HAZARD: Wait 5 minutes after removing power before removing dome. Do not connect
wires when circuits are energized.
• To be an effective warning device, this product produces bright light that could be hazardous to eyesight. Do not
stare directly at the light. Rapid flashing could induce photosensitive epilepsy.
• Never alter the unit in any manner. Safety in hazardous locations may be endangered if additional openings or
alternations are made.
• WARNING - EXPLOSION HAZARD: Disconnect the fixture from the supply circuit before opening. Keep tightly
closed when in operation. Do not disconnect while circuit is live. Substitution of components may impair suitability
for CIass I, Division 2. Do not install in a hazardous location if the operating temperature. exceeds the atmosphere's
ignition temperature.
Overview of 224XST, 225XST, 225XST-I, 225XST-N: Models 225XST and 225XST-N are available in
12-24VDC, 120VAC (50/60 Hz) or 240VAC (50/60 Hz). Models 224XST and 225XST-I are available in 24VDC. These
hazardous location strobe warning lights produce 80 FPM.

Certifications and Ratings

• UL and cUL Listed for Class I, Division 2, Groups A, B, C and D;
Class II,Division 2, Groups F and G; Class III; or non-hazardous
locations.
• Type 4X, IP66 enclosure. Indoor or outdoor use.
• IP69K Compliant
• CSA Certified
• Model 225XST-N is NSF Certified (dome-up) for Splash Zones
and Non-food Zones to NSF/ANSI 2: Food Equipment.
• Model 224XST is CSFM Approved.
• Electrical ratings: 0.70 A (24VDC), 1.70-0.70 A (12-24VDC), 0.20 A
(120VAC, 240VAC)
• Certified Operating Temperature: -40°F to 104°F (-40°C to 40°C).
T-CODE AT MAX AMBIENT TEMPERATURE, 40ºC
Hazardous Location
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
Class III

Installation

Unpacking The Device: After unpacking the device, examine it for damage and verify parts. Unit comes with: (1)
assembled unit with flying leads. If a part is missing or damaged do not attempt to install and contact Federal Signal
Customer Support.
WARNING - SHOCK/FIRE HAZARD: For 4-wire models, all wires must be terminated. Failure to terminate both sets of
wires (black/red) will result in a shock or fire hazard.
:
Product should be installed by a licensed electrician and follow all
UL CSA
T2A T3A
T5 T6
T5 T6
Elliptical Outer Dome
(12" Curvature Radius)
Silicone Gasket
Retaining Ring
Fresnel Lens
PCBA
Base Plate
Zinc Alloy
E-coated Base
5.5"/ 139.7 mm
Outer Dome
Strobe Tube
Inner Fresnel Lens
Retaining Screw
1/2" NPT
Pipe Mount
