WAREMA EWFS Inside PL Operating And Installation Instructions

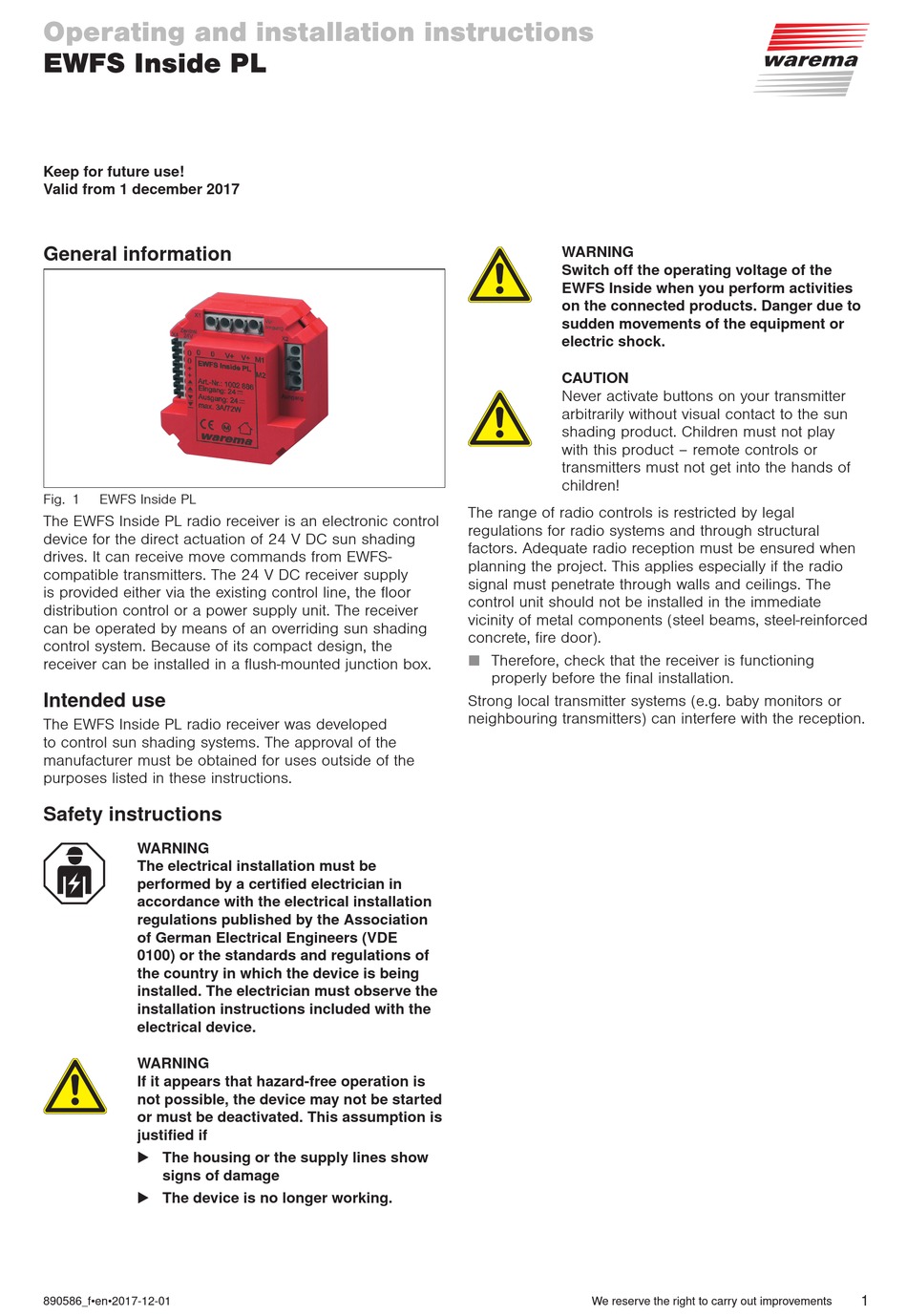

Operating and installation instructions
EWFS Inside PL
Keep for future use!
Valid from 1 december 2017
General information

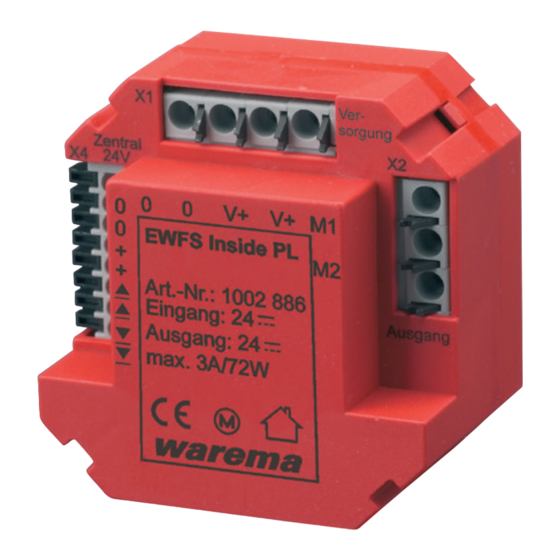

Fig. 1 EWFS Inside PL
The EWFS Inside PL radio receiver is an electronic control
device for the direct actuation of 24 V DC sun shading
drives. It can receive move commands from EWFS-
compatible transmitters. The 24 V DC receiver supply
is provided either via the existing control line, the floor
distribution control or a power supply unit. The receiver
can be operated by means of an overriding sun shading
control system. Because of its compact design, the
receiver can be installed in a flush-mounted junction box.
Intended use
The EWFS Inside PL radio receiver was developed
to control sun shading systems. The approval of the
manufacturer must be obtained for uses outside of the
purposes listed in these instructions.
Safety instructions
W WARIRG
The electrical installation must be
performed by a certified electrician in
accordance with the electrical installation
regulations published by the Wssociation
of German Electrical Engineers (VDE
0100) or the standards and regulations of
the country in which the device is being
installed. The electrician must observe the
installation instructions included with the
electrical device.
W WARIRG
If it appears that hazard-free operation is
not possible, the device may not be started
or must be deactivated. This assumption is
justified if
 The housing or the supply lines show
signs of damage
 The device is no longer working.
890586_f•en•2017-12-01
W WARIRG
Switch off the operating voltage of the
EWFS Inside when you perform activities
on the connected products. Danger due to
sudden movements of the equipment or
electric shock.
C WATIIR
Never activate buttons on your transmitter
arbitrarily without visual contact to the sun
shading product. Children must not play
with this product – remote controls or
transmitters must not get into the hands of
children!
The range of radio controls is restricted by legal
regulations for radio systems and through structural
factors. Adequate radio reception must be ensured when
planning the project. This applies especially if the radio
signal must penetrate through walls and ceilings. The
control unit should not be installed in the immediate
vicinity of metal components (steel beams, steel-reinforced
concrete, fire door).
Therefore, check that the receiver is functioning
properly before the final installation.
Strong local transmitter systems (e.g. baby monitors or
neighbouring transmitters) can interfere with the reception.
We reserve the right to carry out improvements
