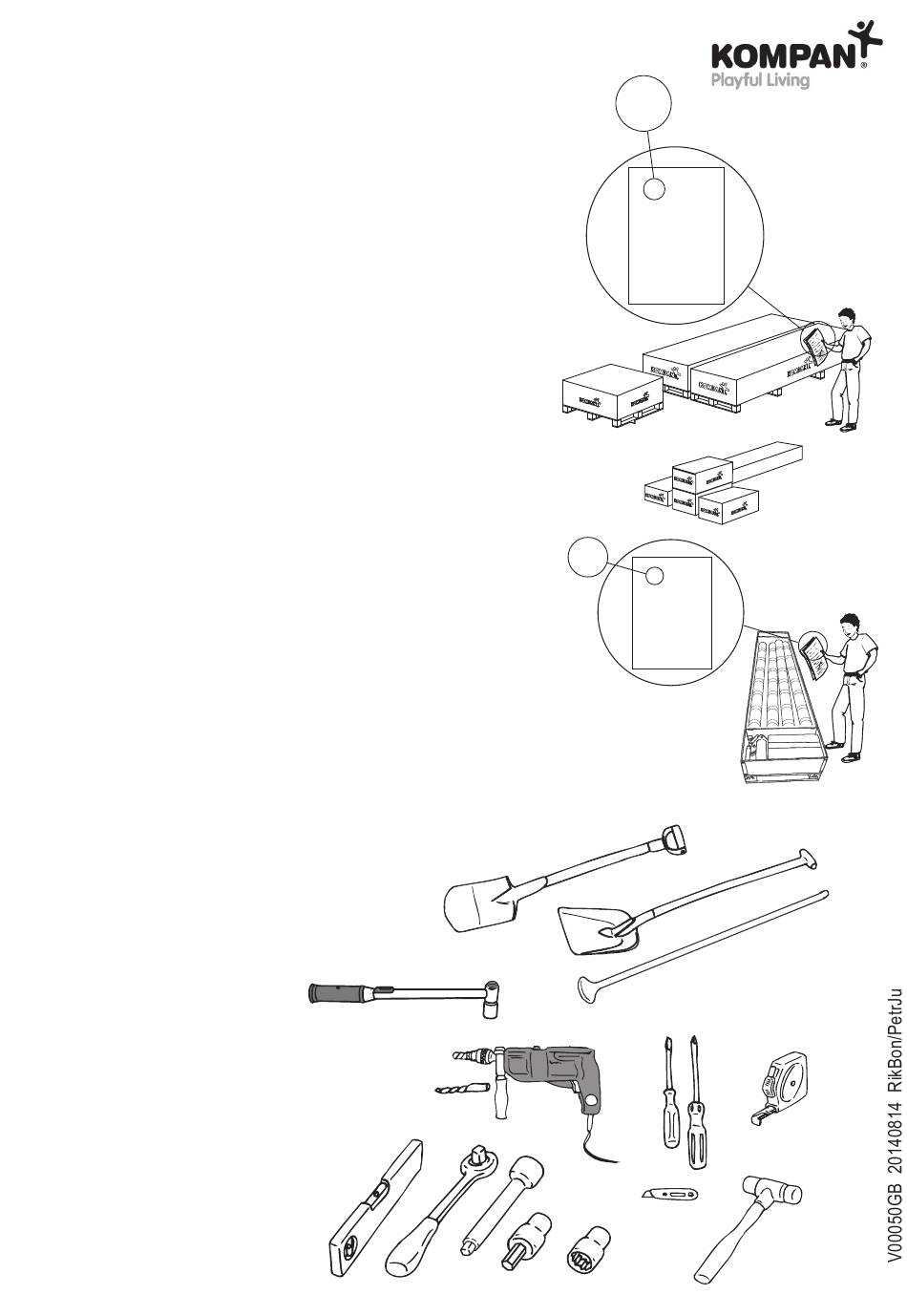

PLAY360 How to get started ill. 1 Start by locating the footings and check that the necessary space, including the safety zone, is available. Make sure to allow for the recommended use zones around all play activities on the structure, please see Safety Zone Plan Drawing (ill.
601020-A2 Assembly of post footing for surface installation (ill. 7) The KOMPAN ELEMENTS surface footing consists of a steel footing profile with 3 wedge grooves, 3 long aluminium wedges with 3 holes, 3 short aluminium wedges with 2 holes, A400295-128 and a flange unit.
Page 4
PLAY360 Preparing the installation (continued) Post assembly When installing structures with platform heights of 240 cm or more, it is necessary to combine 2 posts into one longer post. Use A400115-9906 as extension, which is provided with 6 holes with 12 mm diameter for assembly of the footing A400xxx and the connector unit A400316-51.
Page 5
Straps and secondary connectors along with the rubber-coated posts and the floor frames are the fundamental components of the KOMPAN ELEMENTS system. To save time and effort later it is very important to install each strap in the correct location with the correct number of secondary connectors.
Page 6
Preparing the installation (continued) PLAY360 The Post and Floor Layout Drawing at the end of the Instruction Manual assigns each post with a unique identification number, for example P8, ill. 9-2 referring to the Post Preparation Sheet (ill. 9-2). A sheet of self-adhesive numbers has been provided with each structure...
PLAY360 Assembly order Getting started Post / floor frame assembly (ill. 12) Floors come in various shapes and sizes, see the diagram on the last page. Choose a fixed starting point when you begin assembling the floors. This could be any floor, but we recommend that you choose either the highest or the lowest floor.
Page 8
Assembly order (continued) PLAY360 Assembly order for tall FUNKY ELEMENTS structures - First attach the two tallest posts to the floor frame in the longitudinal direction. Then raise the assembled unit to an upright position and prop it up. Attach the next two posts to the floor frame.
Page 9
PLAY360 Assembly order (continued) - Repeat the steps above until all posts are attached to the floor frame. Make sure that all straps remain in their correct positions on the posts. - The assembled unit of posts and floor frame may be picked up and placed into the correct footing holes, or, in case of surface installation, in the correct position.
Page 10
Assembly order (continued) PLAY360 Installing floors to frames - Place the floor onto the floor frame. - Install the floor cover that fits the size of the floor corner. - Please note that threaded bushings are already installed in the upper part of the floor frame. The 8 mm bolts are to be installed either in these, see ill.
Page 11
Assembly order (continued) PLAY360 Installing infill panels - The infill panel, which is to be installed between platforms at different levels, is crucial to the stability and strength of the structure. Consequently it is of the utmost importance to install this component, using all the specified fasteners and ensuring careful tightening.
Page 12
PLAY360 Assembly order (continued) ill. 19 Installing wall panels First install the wall brackets onto the posts: For secondary connectors: M8x30 (black) Installation of wall brackets: Wall brackets may 210100408030 be attached to a strap or to a secondary connector, see ill.
Page 13
PLAY360 Assembly order (continued) ill. 21 For secondary connectors: Installing steel panels First install the wall brackets onto the posts. M8x30 (BLACK) 210100408030 Installation of wall brackets: Wall brackets may be attached to a strap or to a secondary connector, see ill. 21 which bolts to use.
Page 14
PLAY360 Assembly order (continued) ill. 23 For straps: Installing wall panels A400426-66 First install the wall brackets onto the posts: A400508-06 Installation of wall brackets: Wall brackets may be attached to a strap or to a secondary connector, see ill. 23 which bolts to use.
PLAY360 Final procedures Final assembly check - The entire play structure is tightened securely and panels and play activities double-checked for correct installation. - Make sure that the entire structure is plumb and level. Footing - The footing holes for posts and activities should be back-filled with compacted soil or concrete as specified in the play activity instructions.
Page 17
PLAY360 Final procedures (continued) Do-Nut cap installation Finish the installation by removing all labels and install all Do-Nut caps and protective covers. Make sure they snap into place. Two special marking Do-Nuts with transparent caps are supplied with the structure together with a sheet of labels with addresses of the supplier of each country.
PLAY360 Overview of main components Panel 2 Panel 3 Panel 4 A400002 A400003 A400004 827,3 mm Large floor 90° Panel 11 Floor: B400001 A400011 Frame: A400459 827,3 mm 827,3 mm Large floor 90° arc Floor step Floor: B400003 Floor: B400144...
Page 19
PLAY360 Overview of main components (continued) Post (height) Product number 400 mm A400100-9906 600 mm A400101-9906 800 mm A400102-9906 1000 mm A400103-9906 1200 mm A400104-9906 1400 mm A400105-9906 1600 mm A400106-9906 1800 mm A400107-9906 2000 mm A400108-9906 2200 mm A400109-9906...
