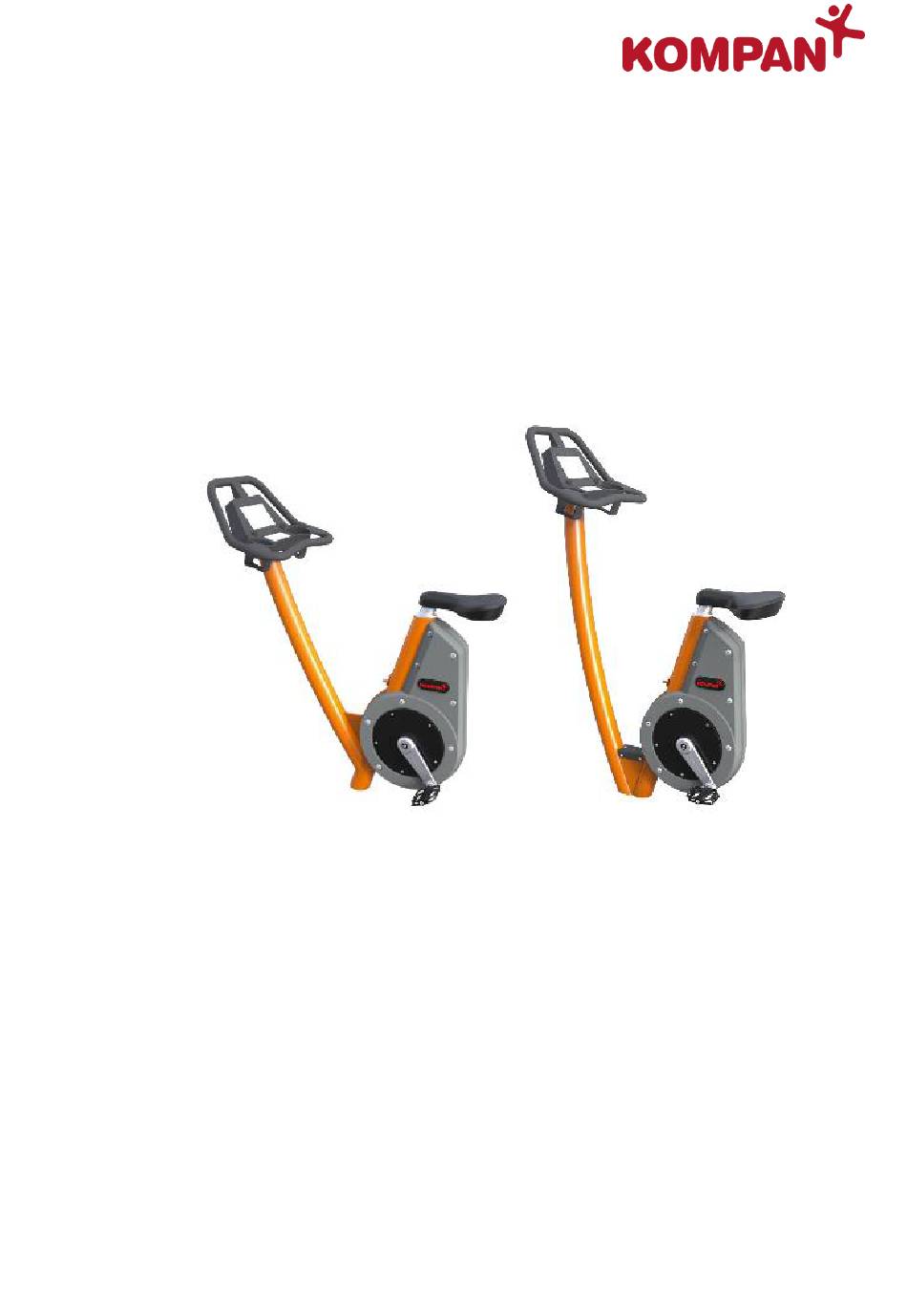

FAZ5010X-XXXX
User Manual
FAZ5020X-XXXX
www.KOMPAN.com
Copyright © KOMPAN A/S 201903

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAZ5010 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for KOMPAN FAZ5010 Series

  • Page 1 FAZ5010X-XXXX User Manual FAZ5020X-XXXX www.KOMPAN.com Copyright © KOMPAN A/S 201903...
  • Page 2: Table Of Contents

    Bluetooth connection of smartphone and use of app ..............7 Technical Specifications ..........................8 Sport bike..............................8 City bike ..............................8 General dimensions ..........................9 Resistance ..............................9 LCD touch display ............................ 9 Pedal arms (pedals) ..........................10 User-maintenance instructions....................... 10 Copyright©KOMPAN A/S 201903 2/10...
  • Page 3: Installation Instructions

    Installation instructions Find the installation instructions for the current cardio product on KOMPAN homepage: www.kompanmaster.com/kompanmaster Important safety instructions When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this exercise equipment...
  • Page 4: Operating Instructions

    Operating instructions Description of equipment 1. Handlebar with bottleholders 2. Touch screen or instruction sign 3. Seat 4. Seat adjustment knob 5. Pedals Copyright©KOMPAN A/S 201903 4/10...
  • Page 5: Description Of Display (On Bikes With Screens)

    6. Calories burned since start of the exercise session (measured in kcal) 7. Adjustable effort level scale Changing units on the display Units can be switched between km and miles by tapping the speed indication in the middle of the screen. Copyright©KOMPAN A/S 201903 5/10...
  • Page 6: Seat Adjustment

    2. Adjust the seat to desired height and release the adjustment knob. Push the saddle down and make sure it clicks into a locked position. Recommended seat position • Adjust the height of the seat to a position, where your knee is slightly bend with the pedal in the lowest position. Copyright©KOMPAN A/S 201903 6/10...
  • Page 7: Use Of Bike And Adjustment Of Workload

    3. Adjust the effort level by tapping the level scale on the display Bluetooth connection of smartphone and use of app 1. Download the KOMPAN Cardio app. This can be done by scanning the QR code on the bike or searching for “KOMPAN Cardio” in either Google Play or App Store.
  • Page 8: Technical Specifications

    Technical Specifications Sport bike  Height: 1176 mm  Width: 413 mm  Length: 1046 mm City bike  Height: 1385 mm  Width: 413 mm  Length: 920 mm Copyright©KOMPAN A/S 201903 8/10...
  • Page 9: General Dimensions

     Resolution: 800 x 480  LCD type: TFT, transmissive, anti-glare surface treatment and optical bonding  Color: 262K  Display brightness: 650 cd/m²  Vandalism proof protection glass rating: IK8  Ingress protection class: IPX5 Copyright©KOMPAN A/S 201903 9/10...
  • Page 10: Pedal Arms (Pedals)

    Pedal arms (pedals)  Standard mounting principle with 9/16” x 20 LH/RH thread to standard pedals User-maintenance instructions Find the general maintenance instructions for KOMPAN products on KOMPAN´s homepage: www.kompanmaster.com/kompanmaster Copyright©KOMPAN A/S 201903 10/10...
