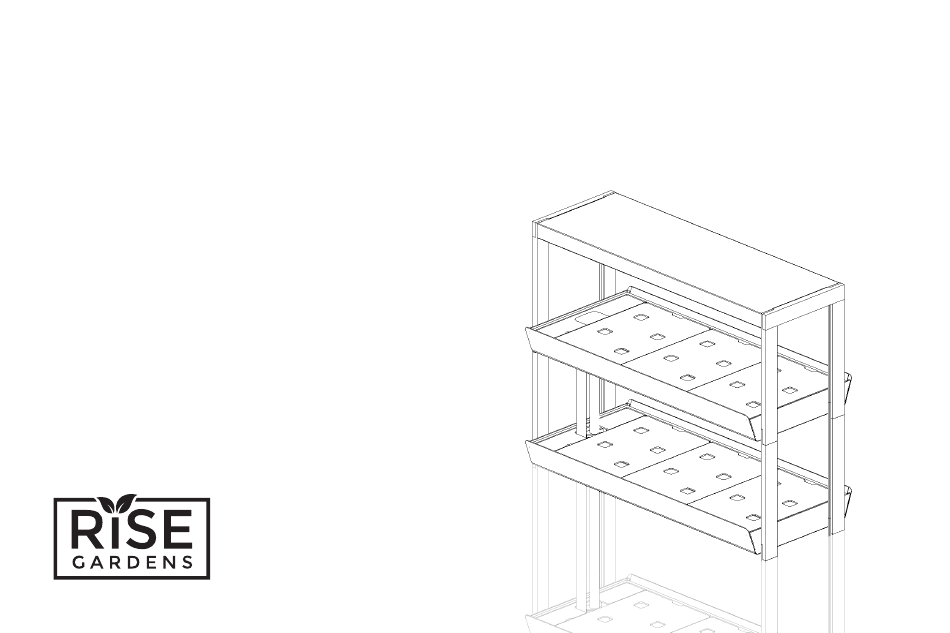

- Page 1 RISE SMART GARDEN SYSTEM LEVEL UPGRADE...
- Page 2 ONLY FOLLOW THIS MANUAL IF YOU HAVE ALREADY ASSEMBLED A GARDEN AND ARE ADDING THIS LEVEL TO IT. IF YOU ARE ASSEMBLING YOUR GARDEN FOR THE FIRST T I M E , W I T H I T S E X T E N S I O N S , F O L L O W INSTRUCTIONS FOR 1,2,3 LEVELS FOUND IN YOUR BASE GARDEN.
- Page 3 WELCOME TO THE RISE FAMILY! Rise Gardens is committed to providing the right indoor garden for your space and gardening ambitions. Our modular and versatile system provides a wide range of configurations. You can choose to build your garden (or later grow your garden) as a one-level, two-level, or three-level garden by combining the base garden with add-on modules.
-
Page 4: Before You Begin
WHAT’S IN THE BOX Components Hardware Screws Metal Tray with Lights (White) Allen Wrench Upright Wood Extensions Plastic Tray Lids Light Cable Retaining Stickers Plastic Service Door Extras Water Tray (Black) 6 Hole Covers 1/4” supply line with straight barb BEFORE YOU BEGIN 1. - Page 5 1. System Disassembly *NOTE* Unplug your Garden from the wall before continuing B. Remove the four screws and detach the Light Shelf and set A. Disconnect any Light Connectors from the control box and aside. remove from the retaining channel of the Uprights.
- Page 6 2. Install Second Level PARTS: METAL TRAY W/LIGHTS, UPRIGHT EXTENSIONS (4), SCREWS (8) C. Disconnect Pump Assembly cable from Control Box, then cut the A. Attach the Upright Extensions to the Base Uprights at the lap supply line in your Water Bin coming from your pump. Remove joint inserting the four lower screws partially (3-4 turns) leaving the Flexible Supply Line by pulling from the top Water Tray and a gap.
- Page 7 C. Insert a screw into each of the four upper holes in the Metal Tray, and tighten all 8 screws. *Make sure to hand tighten before using Allen wrench. B. Place the Metal Tray with Lights (with plumbing holes on left, matching the level below), making sure that the 4 keyholes engage with the partially installed screws.
- Page 8 3. Install Third Level (if applicable) PARTS: METAL TRAY W/LIGHTS, UPRIGHT EXTENSIONS (4), SCREWS (8) A. Attach the Upright Extensions (long or short, depending on B. Place the next Metal Tray with Lights (with plumbing holes on the height of the level you are adding) to the Base Uprights at left, matching the level below), making sure that the 4 keyholes the lap joint inserting the four lower screws partially (3-4 turns) engage with the partially installed screws.
- Page 9 4. Reattach Light Shelf PARTS: LIGHT SHELF, SCREWS (4) A. Orient the Light Shelf with the power connector on the right B. Insert 4 screws from the inside of each of these joints, then side, opposite the plumbing holes on the metal tray. While tighten all four screws.
- Page 10 5. Electrical Assembly PARTS: POWER CABLE RETAINING STICKERS (4) A. Insert Light Cables into channel in front right leg of Uprights. B. Run through the hole in Cabinet top and secure with Power Cable Retaining Stickers at top and bottom.
- Page 11 C. Inside of the Cabinet, plug the Light Shelf Cables into their corresponding level. Bottom level into “Light Connector 1” and the remaining Light cable into “Light Connector 2” and “Light Connector 3” (if applicable) on the Control Box. CONGRATS! YOU’RE HALFWAY THERE Note: Must hear a ‘Click’...
- Page 12 2. Connect Supply Line 1. Pick Out Correct Size Plumbing PARTS: 1/4” LONG FLEXIBLE SUPPLY LINE (90˚ Bend) 1/4” FLEXIBLE SUPPLY LINE EXTENSIONS PARTS: DRAIN PIPE & SUPPLY PIPE A. Locate your two 1/4” flexible Extension supply lines Pick out the correct pipe length from the extra plumbing you got in with straight barb (one for each level you are adding) your Base Garden.
- Page 13 3. Connecting Supply and Drain Line to Second Level B. Twist on the 90º Connector to the smaller of the Drain Pipes PARTS: DRAIN PIPE, SUPPLY PIPE (long or short, depending on the height of that particular level). A. Gently twist your big Supply Pipe (long or short, depending on C.
- Page 14 5. Third Level Plumbing Setup (if applicable) 4. Install Second Level Water Tray PARTS: DRAIN PIPE, SUPPLY PIPE, WATER TRAY (BLACK) PARTS: WATER TRAY (BLACK) A. Place Water Tray within Metal Tray, ensuring both downspouts are A. Gently twist your big Supply Pipe (long or short, depending on located within the Drain Pipe and Supply Pipe, and confirm Water the height of that particular level) into the front hole on bottom Tray is fully seated on the bottom of Metal Tray.
- Page 15 6. Connect Pump Assembly PARTS: WATER TANK LID, PUMP ASSEMBLY B. Place Water Tray within Metal Tray, ensuring both downspouts are A. Feed 1/4” Long Flexible Supply Line into rear hole of top Water located within the Drain Pipe and Supply Pipe, and confirm Water Tray (through the Supply Conduit) until Right-Angle Connector is Tray is fully seated on the bottom of Metal Tray.
- Page 16 E. Slide Base Pan to rear of Cabinet, and slide Water Tank to C. Place the Pump Assembly into your Water Bin. left back side. D. Slide your Water Bin Lid onto your Water Bin so that your Pump Assembly fits into the notch around it.
- Page 17 7. System Startup PARTS: WATERING CAN D. Plug Pump Assembly cable into “Pump Connector” on A. Plug your system into the wall and confirm all Lights and dimming button functioning. Control Box and start water flowing. B. Use Watering Can to add 1 gallon of cold tap water to each water tray. C.
- Page 18 Two-Level System Flow Diagram Three-Level System Flow Diagram...
- Page 19 Attach Tray Lids and Service Doors. Download the Rise Gardens app to set up WiFi and set your light schedule. You can now add plants to your Garden by placing Plant Pods into Net Cups and snapping them into your Trays!
- Page 20 REV 5.0...
