RISE SMART GARDEN SYSTEM
TWO-LEVEL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART GARDEN TWO-LEVEL and is the answer not in the manual?

Questions and answers

Related Manuals for Rise Gardens SMART GARDEN TWO-LEVEL

Summary of Contents for Rise Gardens SMART GARDEN TWO-LEVEL

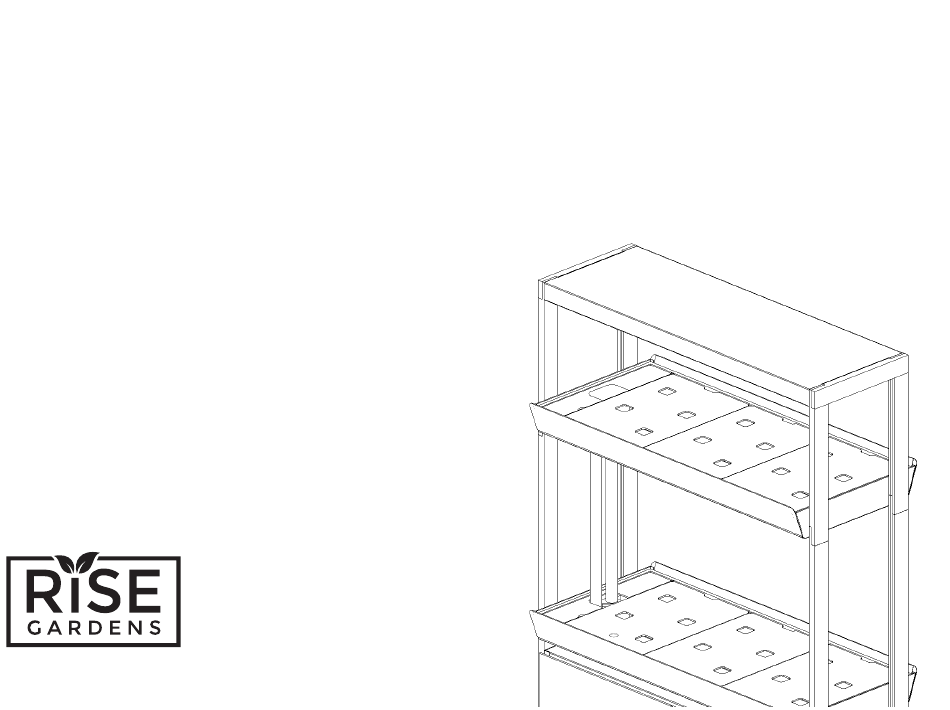

  • Page 1 RISE SMART GARDEN SYSTEM TWO-LEVEL...
  • Page 3 WELCOME TO THE RISE FAMILY! Rise Gardens is committed to providing the right indoor garden for your spaces and you gardening ambitions. Our modular and versatile system provides a wide range of configurations. You can choose to build your garden (or later grow your garden) as a one-level,
...
  • Page 4 • Light Shelf • Fill Corner • Plant Holes • Tray Lid • Nutrient Sensor Hole • Water Level Sensor
 F
 Mounted On Cabinet Ceiling • Water Level Display + G

 Light Dimming Control • Water Tank • Base Pan Nursery Kit...

  • Page 5: What's In The Box

    WHAT’S IN THE BOX Components Plumbing Accessories Cabinet Water Tank Seed Pods Base Upright Pump Assembly with Cable Net Cups Metal Tray (White) Base Pan Watering Can Metal Tray with Lights (White) Water Tray (Black) Pollination Brush Top Light Shelf Short Supply Conduit (Clear, Rigid/Flexible) Pair of scissors Tray Lid...
  • Page 6 1. Attach Uprights to Cabinet PARTS: CABINET, BASE UPRIGHTS, SCREWS (8), A. Insert the two bottom screws into the Base Uprights (2-3 turns), B. Using the large openings on the top of cabinet, lift one end of leaving a gap as shown. *Make sure to hand tighten before using the Cabinet up a few inches, place Upright so that the two screw Allen wrench.
  • Page 7 C. Repeat on the other side to attach second Upright. D. Insert an additional 4 screws from inside of the Cabinet, and tighten all 8 screws with the included Allen key. *Make sure to hand tighten before using Allen wrench.
 (Doors and top hidden for clarity).
  • Page 8 2. Install Metal Tray PARTS: METAL TRAY (WHITE), SCREWS (8) A. Insert four lower screws (one in each leg) partially (2-3 turns) into B. Place the Metal Tray (with plumbing holes on left, matching the the Base Uprights, leaving a gap. *Make sure to hand tighten base), making sure that the 4 keyholes engage with the partially before using Allen wrench.
  • Page 9 3. Install Second Level PARTS: METAL TRAY W/ LIGHTS, UPRIGHT EXTENSIONS (4), SCREWS (8) C. Insert a screw into each of the four upper holes in the Metal Tray, A. Attach the Upright Extensions (long or short, depending on and tighten all 8 screws. *Make sure to hand tighten before using the height of the level you are adding) to the Base Uprights at Allen wrench.
  • Page 10 B. Place the Metal Tray with Lights (with plumbing holes on left, C. Insert a screw into each of the four upper holes in the Metal Tray, matching the level below), making sure that the 4 keyholes and tighten all 8 screws. engage with the partially installed screws.
  • Page 11 4. Attach Light Shelf PARTS: LIGHT SHELF, SCREWS (4) A. Orient the Light Shelf with the power connector on the right B. Insert 4 screws from the inside of each of these joints, then side, opposite the plumbing holes on the metal tray. While tighten all four screws.
  • Page 12 5. Electrical Assembly PARTS: POWER CABLE RETAINING STICKERS (4) A. Insert Light Cables into channel in front right leg of Uprights. C. Inside of the Cabinet, plug the Water Level Cable connected to the black box on the right hand cabinet door (directly behind your Water Level Display) into “Display”...
  • Page 13 C. Inside of the Cabinet, plug the Light Shelf Cable into “Light Connector 2” and the remaining Light cable into “Light Connector 1”on the Control Box. CONGRATS! YOU’RE ALMOST THERE Note: Must hear a ‘Click’ when plugging in lights. If they are not fully plugged in, your lighting dimming button will not work.
  • Page 14 1. Install Water Tank and Water Conduits PARTS: BASE PAN, WATER TANK, SUPPLY CONDUIT, DRAIN CONDUIT A. Slide Base Pan out a few inches. B. Remove Water Tank Lid and insert Water Tank into Base Pan. Slide the tank all the way to the left.
  • Page 15 C. Insert the flexible end of Supply Conduit (short, clear, Rigid/ D. Repeat for Drain Conduit (Long, clear, Rigid/Flexible) using the Flexible) into the rear hole in Metal Tray. Push Supply Conduit front hole in Metal Tray. Make sure both pipes are inside the until the pipe is seated in the metal tray.
  • Page 16 2. Install Water Tray 1. Pick out correct size plumbing PARTS: WATER TRAY (BLACK) PARTS: DRAIN PIPE & SUPPLY PIPE IMPORTANT: If the Water Tray is not seated into Drain and Supply A. Pick out the correct pipe length from the extra plumbing you got Pipes your Garden may leak.
  • Page 17 3. Connecting Supply and Drain Line to Upper Level PARTS: DRAIN PIPE, SUPPLY PIPE, RUBBER GASKET (2) A. Gently twist your big Supply Pipe (long or short, depending on C. Gently twist your Drain Pipe with 90º Connector (long or short, the height of that particular level) into the front hole on bottom depending on the height of that particular level) into the front of Metal Tray and through the hole.
  • Page 18 4. Install Second Level Water Tray 5. Install Supply Line PARTS: WATER TRAY (BLACK) PARTS: 1/4” LONG FLEXIBLE SUPPLY LINE (90˚ CONNECTOR) 1/4” LONG FLEXIBLE SUPPLY LINE EXTENSIONS A. Place Water Tray within Metal Tray, ensuring both downspouts are A. Locate your 1/4” flexible supply line with straight barb. located within the Drain Pipe and Supply Pipe, and confirm Water B.
  • Page 19 6. Connect Pump Assembly PARTS: WATER TANK LID, PUMP ASSEMBLY B. Place the Pump Assembly into your Water Bin. A. Feed 1/4” Long Flexible Supply Line into rear hole of top Water Tray (through the Supply Conduit) until Right-Angle Connector is resting on Inner Tray directed toward water channel.
  • Page 20 C. Plug Pump Assembly cable into “Pump Connector” on D. Slide Base Pan to rear of Cabinet, and slide Water Tank to Control Box. left side.
  • Page 21 7. System Startup PARTS: WATERING CAN C. Place Tray Lids and Service Doors. A. Use Watering Can to add 5 gallons to the lower Water Tray service area (front left corner). Plug your Rise Smart Garden into a wall outlet. B.

  • Page 22: System Flow Diagram

    System Flow Diagram...
  • Page 24 REV 1.0...
