Summary of Contents for UTG New Gen LT-EL138

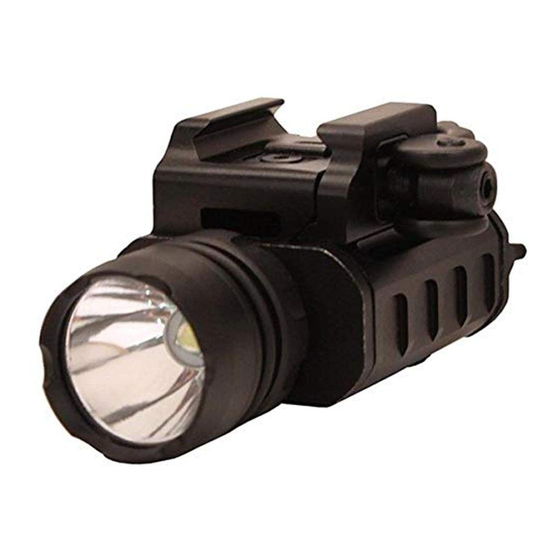

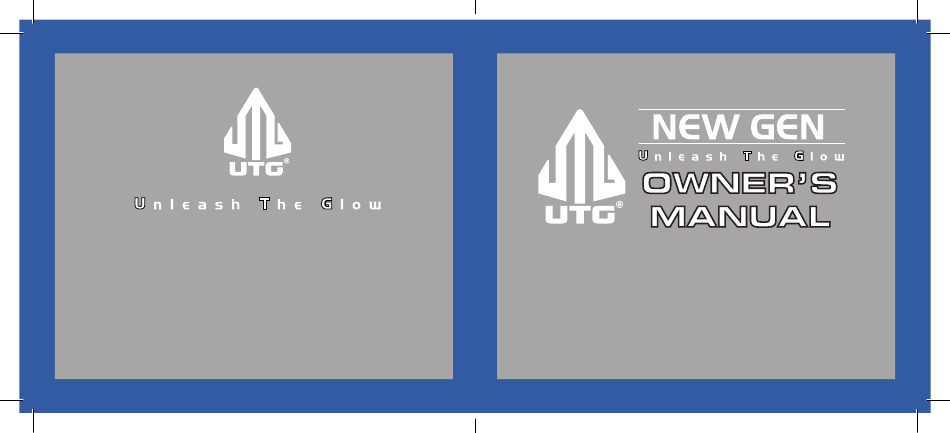

- Page 1 LT-EL138 LED Flashlight...
- Page 2 CAUTION! If you need to mount the flashlight onto a firearm, make sure firearm is not loaded before Turn off the light when not in use to conserve battery power. installation. Remove magazine and examine chamber. Use safe handling procedures at all times.
- Page 3 Component Illustration LT-EL138 EL138 (Model Number) Length 116.8mm (4.6”) AQN0040UB49U (Example Serial Number) T-6 Aircraft Aluminum Main Body Main Body Diameter 27.2mm (1.07”) Law Enforcement Rated Weight with Battery 199g (7oz) Rolling Stop Shoulder Bulb Type IRB* with Cree XML LED Voltage Max.
- Page 4 Fig.1.1 Fig.2.5 Installation & Operation Battery Installation Mounting the Flashlight Unscrew the end cap and install a CR123A lithium battery (Fig.1.1). Offset Angled Tactical Flashlight Ring Mount (RG-FL138) Fig.1.2 Fig.3.1 Replace and tighten the end cap (Fig.1.2). Remove the top half of the ring by loosening the screws and slowly backing them out (Fig.3.1).
- Page 5 RG-FL138 8. Do not attempt to lubricate any part of the flashlight. UTG Offset Angled Low Profile 9. Do not disassemble the flashlight other than replacing battery or pressure Tactical Flashlight Ring switch. Do not loosen or remove screws or parts. Any such or similar actions...
- Page 6 Leapers is pleased to offer suggestions of the use of its products, however Leapers neither Leapers, Inc. warrants that all UTG & UTG PRO products conform to published assumes responsibility for any omissions or errors nor assumes liability for any damages that specifications and are free from defects in material and workmanship.
