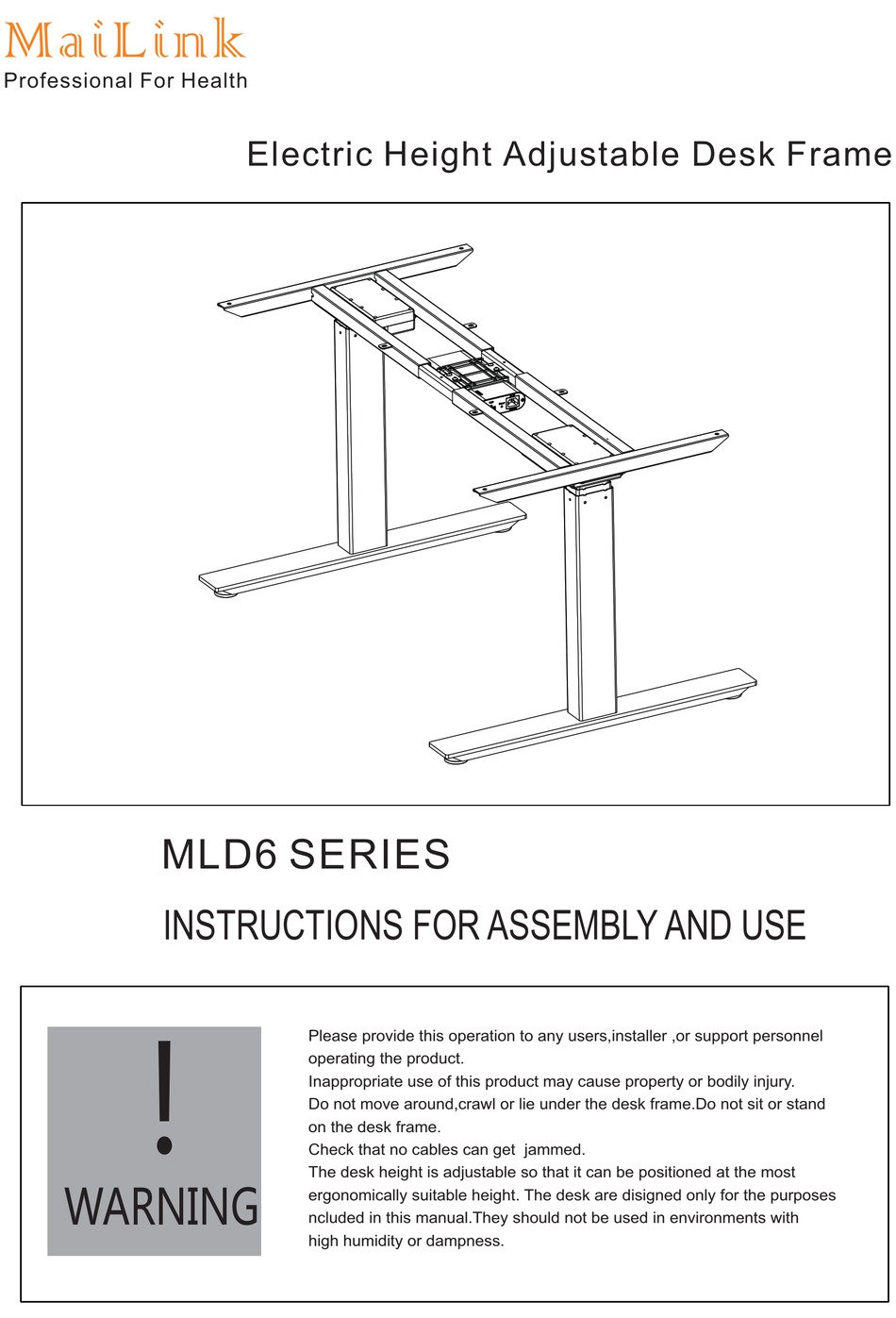

MaiLink
Professional For Health
MLD6 SERIES
INSTRUCTIONS FOR ASSEMBLY AND USE
!
WARNING
Electric Height Adjustable Desk Frame
Please provide this operation to any users,installer ,or support personnel
operating the product.
Inappropriate use of this product may cause property or bodily injury.
Do not move around,crawl or lie under the desk frame.Do not sit or stand
on the desk frame.
Check that no cables can get jammed.
The desk height is adjustable so that it can be positioned at the most
ergonomically suitable height. The desk are disigned only for the purposes
ncluded in this manual.They should not be used in environments with
high humidity or dampness.
Advertisement
Table of Contents
Related Manuals for MaiLink MLD6 Series
Summary of Contents for MaiLink MLD6 Series
- Page 1 MaiLink Professional For Health Electric Height Adjustable Desk Frame MLD6 SERIES INSTRUCTIONS FOR ASSEMBLY AND USE Please provide this operation to any users,installer ,or support personnel operating the product. Inappropriate use of this product may cause property or bodily injury.
- Page 2 MLD6 series parameter instruction Electric Control Part: Input Voltage: 100-240V can be use Output Voltage: 24V DC Duty cycle: 10%MAX 2min on 18 min off Switch power supply, low energy consumption Manual device can move and long press Desk frame part:...
- Page 3 Desk frame installation instructions The overall effect Feet 2pcs Control box 1pcs Long ube 2pcs egs pcs M8*25 8pcs M6*10 4pcs M8*10 12pcs Horizontal tube 2pcs Power cable 1 Motor wires 2pcs Handset 1pcs M6*12 8pcs...
- Page 4 Installation Guide Loose the eight screw and adjust to the target length then screw up. 1 Adjust the frame length according the desktop size Level the desk on smooth surface,put the leg up on the two horizontal frame,fix each leg to the frame with M8*10 screw(6pcs).
- Page 5 Installation Guide fasten the desk bae with M8*25 screws (4pcs per leg) 3.Install desk feet(2pcs) Firstly install, the controller bracket with M6*10 screw(4pcs) then insert the control box from one side. 4.Installation controller bracket...
- Page 6 Installation Guide Ensure can be use after plug in the power supply. 5.Motor wires(2pcs) switch wire (1pcs) power supply wire (1pcs)
- Page 7 Handset Usage Instructions MaiLink HOME SAVE The height automatically go to 720mm(28.3"). Touch the key and release. Second memory position. Press and hold the key for 5 seconds for memory 2. First memory position. Press and hold the key for 5 seconds for memory 1.
