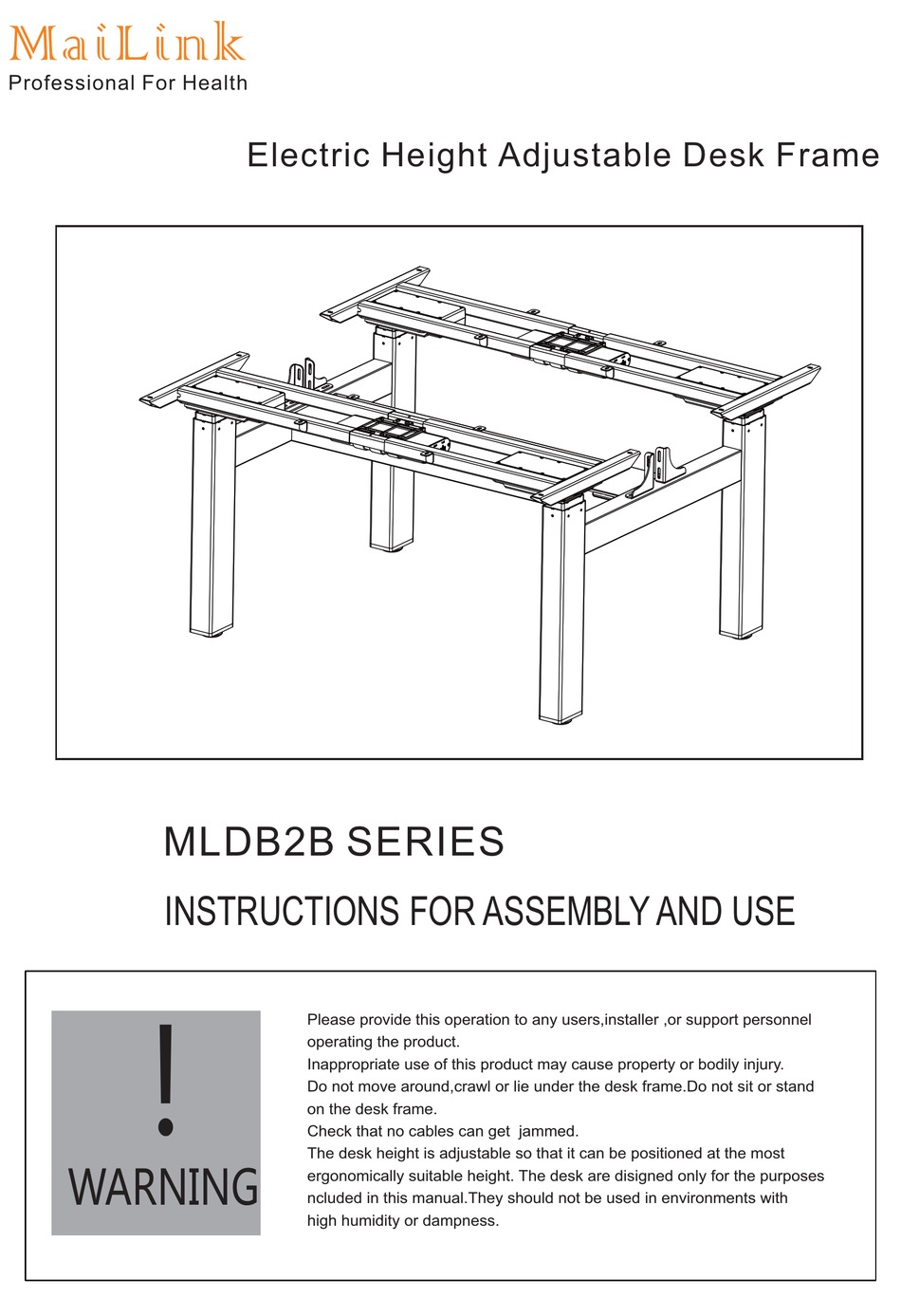

MLDB2B SERIES
INSTRUCTIONS FOR ASSEMBLY AND USE
!
WARNING
Electric Height Adjustable Desk Frame
Please provide this operation to any users,installer ,or support personnel
operating the product.
Inappropriate use of this product may cause property or bodily injury.
Do not move around,crawl or lie under the desk frame.Do not sit or stand
on the desk frame.
Check that no cables can get jammed.
The desk height is adjustable so that it can be positioned at the most
ergonomically suitable height. The desk are disigned only for the purposes
ncluded in this manual.They should not be used in environments with
high humidity or dampness.
Advertisement
Related Manuals for MaiLink MLDB2B Series
Summary of Contents for MaiLink MLDB2B Series
- Page 1 MaiLink Professional For Health Electric Height Adjustable Desk Frame MLDB2B SERIES INSTRUCTIONS FOR ASSEMBLY AND USE Please provide this operation to any users,installer ,or support personnel operating the product. Inappropriate use of this product may cause property or bodily injury.
-
Page 2: Safety And Warnings
MLDB2B series parameter instruction Electric Control Part: Input Voltage: 100-240V can be use Output Voltage: 24V DC Duty cycle: 10%MAX 2min on 18 min off Switch power supply, low energy consumption Manual device can move and long press Desk frame part:... - Page 3 Desk Frame installation instruction The overall effect Middle beam cover Rail 2pcs Tie beam 2pcs Tie beam cover Leg (4pcs) 1pcs 2pcs Motor wire 4pcs Middle beam cover Middle beam 1pcs Control box 1pcs Power connecting 2pcs bottom 1pcs Screw Screw Self-tapping screw Glides 4pcs...
- Page 4 Installation Guide Lay the rail level(image),fix the control box on the 2rails by 4pcs M6*10 Screw. M6*10 Screw(4pcs) M6*10 Screw(4pcs) 1.Control box install 1.Lay the desktop on clean surface, put 4legs and 4pcs frame parts in turn. 2.fix the legs on frame with 24 M8*10 screw glides(4pcs) 3.screw up 4pcs glides on leg end M8*10 screw...
- Page 5 Installation Guide Tie up the 2 desks by 2 tie beam connecting by M5*12 screw 8pcs M5*12 8pcs M5*12 8pcs Fix the middle beam between the 2 tie bea by M5*12 screw 4pcs 3. ie beam installation...
- Page 6 Installation Guide djust the desktop location to certain place using 16pcs of ST6.5*16 screw, screw legs part up on desktop ST6.5*16 screw 16pcs 4.Desktop ins lation First ,line up control box by 4pcs connecting cables and 2pcs Power cords. Second, locked the handset on desktop by 4 pcs ST3.3*16. M a iL in Handset 2pcs Connecting cables 4pcs...
- Page 7 Installation Guide Put 8pcs( M5*10+7) hexagonal brass nut on the tie beam. hexagonal brass nut M5*10+7 6.Install hexagonal brass nut Put the Tie beam cover on the tie beam, put the “middle beam cover bottom” on the middle beam, and put the meddle beam cover on it as picture Middle beam cover 1pcs Middle beam cover bottom 1pcs...
- Page 8 Handset Usage Instructions MaiLink HOME SAVE The height automatically go to 720mm(28.3"). Touch the key and release. Second memory position. Press and hold the key for 5 seconds for memory 2. First memory position. Press and hold the key for 5 seconds for memory 1.
