MLD7 SERIES
INSTRUCTIONS FOR ASSEMBLY AND USE
!
WARNING
Electric Height Adjustable Desk Frame
Please provide this operation to any users,installer ,or support personnel
operating the product.
Inappropriate use of this product may cause property or bodily injury.
Do not move around,crawl or lie under the desk frame.Do not sit or stand
on the desk frame.
Check that no cables can get jammed.
The desk height is adjustable so that it can be positioned at the most
ergonomically suitable height. The desk are disigned only for the purposes
ncluded in this manual.They should not be used in environments with
high humidity or dampness.
Advertisement
Table of Contents
Related Manuals for MaiLink MLD7 Series
Summary of Contents for MaiLink MLD7 Series

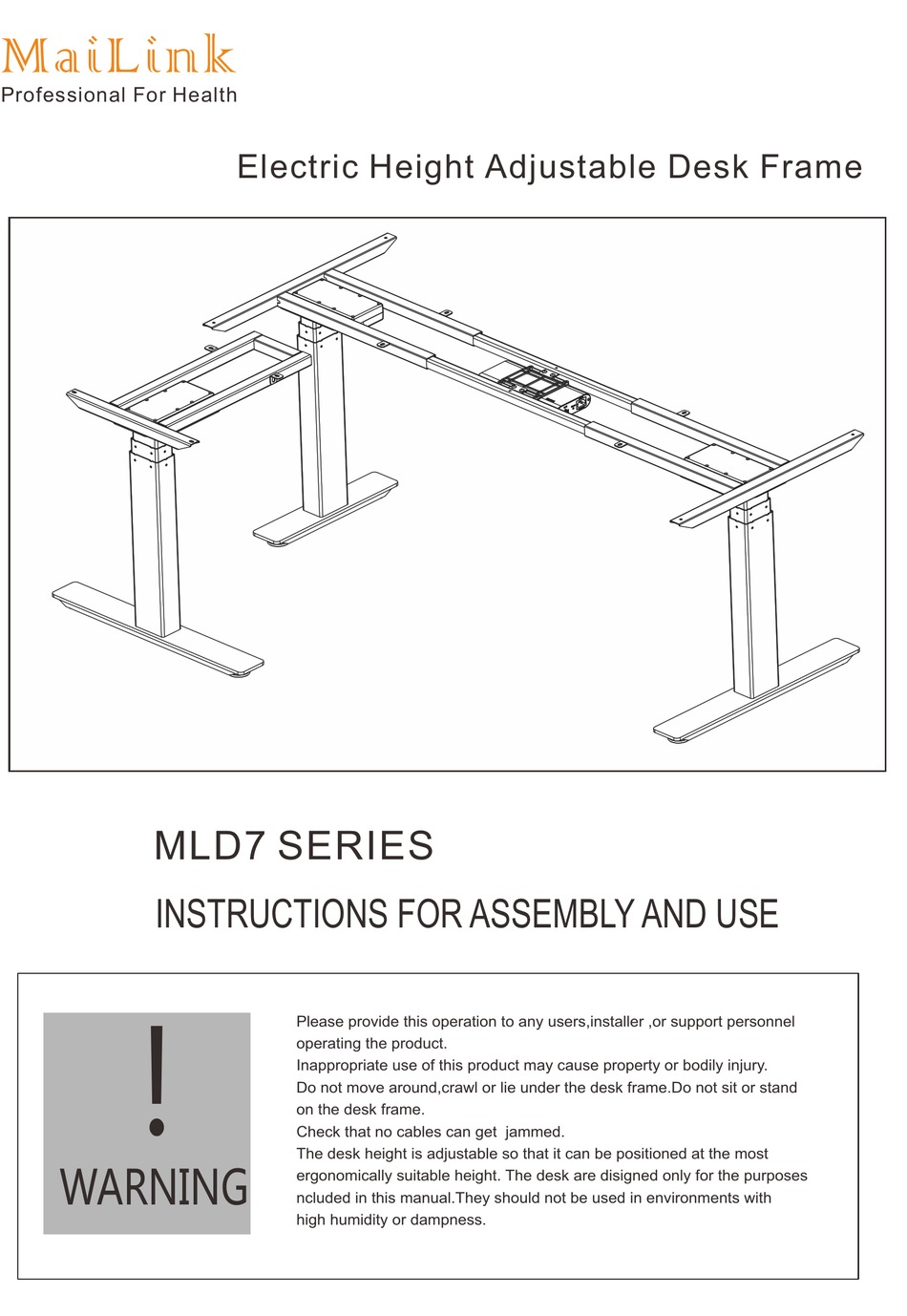

- Page 1 MaiLink Professional For Health Electric Height Adjustable Desk Frame MLD7 SERIES INSTRUCTIONS FOR ASSEMBLY AND USE Please provide this operation to any users,installer ,or support personnel operating the product. Inappropriate use of this product may cause property or bodily injury.
- Page 2 MLD7 series parameter instruction Electric Control Part: Input Voltage:100-240V can be use Output Voltage:24V DC Duty cycle:10%MAX 2min on 18 min off Switch power supply,low energy consumtion Manual device can move and long press Desk frame part: built-in limit switch...
- Page 3 Desk Frame installation instruction the overall effect ② ① ③ ④ ⑤ ⑥ Long feet crossbar end short side crossbar 2pcs Long side 2pcs legs 3pcs 1pcs bracket 1pcs bracket 2pcs ⑦ ⑩ ⑧ ⑨ ⑪ ⑫ machine screws machine screws machine screws Short foot machine screws...
- Page 4 Please count pieces before disposing of any carton or packing material.Use a padded or carpeted area for assembly to avoid damage.For ease and safety ,we recommend two people for assembly. ⑫ ③ ⑯ ③ ⑤ ② ⑩ ① ⑦ ⑧ ⑨...
- Page 5 First,Place related parts as below. Second.,insert qty 4 machine screws(part10#)through the Crossbar(part 2#)and Crossbar end (part5#)going intothe each leg(part1#).Third,insert qty 2 machine screws(part10#)through the sidebracket(Part3&part4#)into the each leg(part1#). ① ⑩ ② ③ ③ ⑤ ④ 2.Install legs(part 1)、 side bracket（part 3,part 4)and crossbar(part2&5) First,Place related parts as below.
- Page 6 Insert qty 4 Machine Screws(M6X10) through the 4 holes of crossbar(part2) going into the control box 4.Install feet(part6&7)and leveling studs(part8) Insert qty 12 Machine Screws(ST6.3X15) through the 12 holes of crossbar(part2) going into the panel 5.Install panel...
- Page 7 Insert the Conneting cables into the control box and motor,and Insert the power cord and switch �into control box. Can be used after the power supply. Connecting cables (short:2pcs,long 1pcs) Switch 1pcs Power cord 1pcs 6.Install the wire...
- Page 8 Handset Usage Instructions MaiLink HOME SAVE The height automatically go to 720mm(28.3"). Touch the key and release. Second memory position. Press and hold the key for 5 seconds for memory 2. First memory position. Press and hold the key for 5 seconds for memory 1.
