Asus ROG THOR Series Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Quick Start Guide
快速使用指南(繁體中文)
快速使用指南(簡體中文)
クイ ックスタート ガイ ド (日本語)
Guide de démarrage rapide (Français)
Schnellstartanleitung (Deutsch)
Guida rapida (Italiano)
Краткое руководство (Pyccкий)
Guia de Início Rápido (Português do Brasil)
Rychlý průvodce (Čeština)
Hurtigt i gang aktiviteter (Dansk)
)‫دليل التشغيل السريع (العربية‬
Beknopte handleiding (Nederlands)
Οδηγός γρήγορης εκκίνησης (Ελληνικά)
간단사용설명서 (한국어)
Przewodnik szybkiego startu (Polski)
Guía de inicio rápido (Español)
Snabbstartshandbok (Svenska)
Стисле керівництво для початку експлуатації (Українська)
Vodič za brzi početak rada (Hrvatski)
Hurtigstartveiledning (Norsk)
Kratko uputstvo za početak (Srpski)
Vodič za hitri začetek (Slovenščina)
Hızlı Başlangıç Kılavuzu (Türkçe)
Q15060a

Advertisement

loading

  Summary of Contents for Asus ROG THOR Series

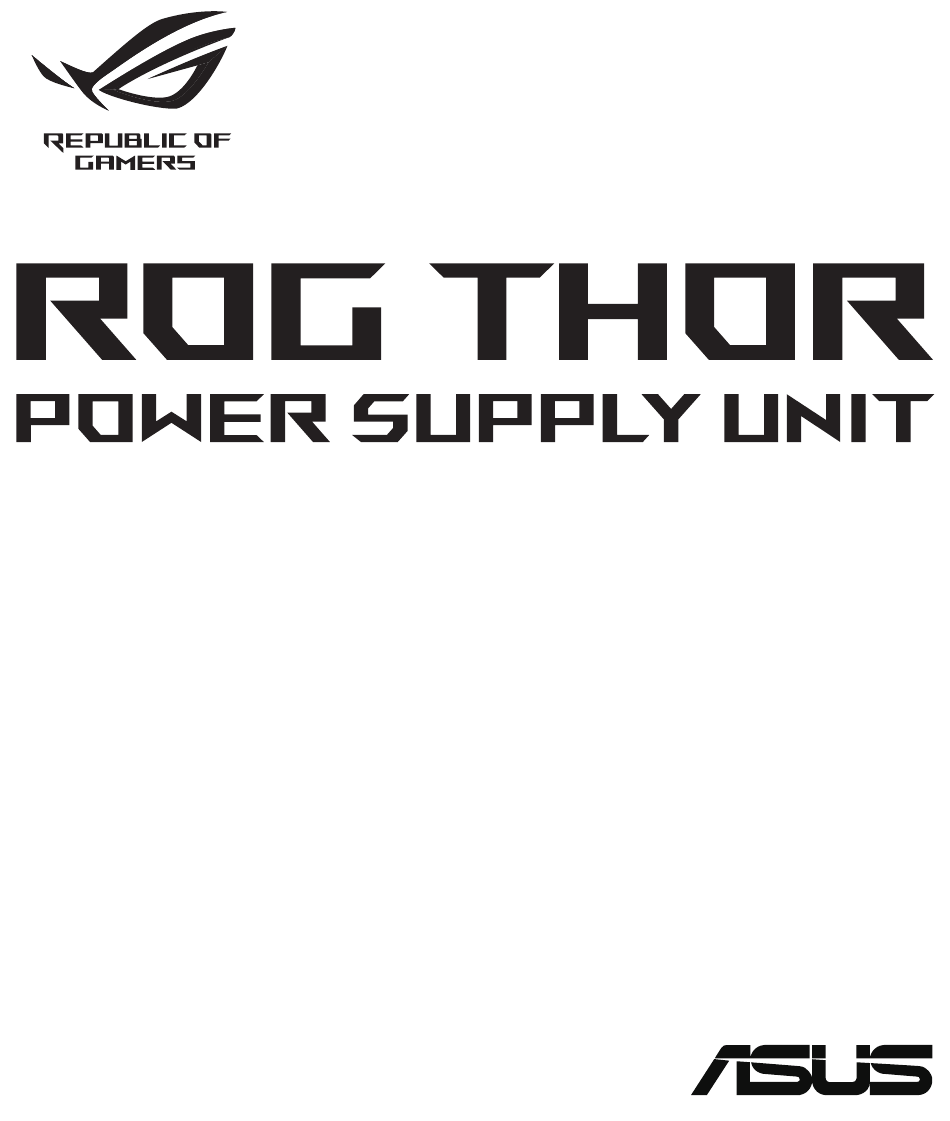

  • Page 1 Q15060a Quick Start Guide Beknopte handleiding (Nederlands) Οδηγός γρήγορης εκκίνησης (Ελληνικά) 快速使用指南(繁體中文) 간단사용설명서 (한국어) 快速使用指南(簡體中文) クイ ックスタート ガイ ド (日本語) Przewodnik szybkiego startu (Polski) Guide de démarrage rapide (Français) Guía de inicio rápido (Español) Schnellstartanleitung (Deutsch) Snabbstartshandbok (Svenska) Guida rapida (Italiano) Стисле...
  • Page 2: Package Contents

    Package contents ROG-THOR-850P ROG-THOR-1200P 1 x ROG-THOR-850P PSU 1 x ROG-THOR-1200P PSU 1 x Chassis Screws Package 1 x Chassis Screws Package 1 x ROG Sticker 1 x ROG Sticker 4 x ROG Cable Tie 6 x ROG Cable Tie 10 x Cable Tie 12 x Cable Tie 2 x Sleeved Cable Combs (6-pin)
  • Page 3: Cable Description

    Cable description Connector Cable MB Power 610mm 650mm 75mm PCIe 675mm 400mm 120mm 120mm 120mm 350mm 150mm 150mm 150mm SATA (Included in 1200W only) 450mm 120mm (Included in 850W only) SATA to peripheral 150mm 150mm (continued on the next page) ROG Thor PSU...
  • Page 4: Front View

    Connector Cable 450mm 120mm 120mm Peripheral 350mm 120mm Floppy 101mm 950mm Addressable RGB 950mm Features The illustrations in this section are for reference only and may vary between models. Front view ROG Thor PSU...
  • Page 5: Right View

    Left view O dB Fan Right view OLED power display 8-pin CPU / VGA / PCI-E connectors 0 dB Fan button* 2-pin Addressable AURA RGB connector Power switch 6-pin Peripheral-IDE / SATA / Molex connectors Power connector 10-pin and 18-pin MB connectors * Pressing this button will turn off the 0dB function, allowing the PSU fan to spin at all times.
  • Page 6: Getting Started

    Getting started The illustrations in this section are for reference only and may vary between models. Connecting the peripheral cables You may connect the SATA to Peripheral cable or Floppy cable to any of the Peripheral cables to extend additional SATA power connectors or a floppy power connector. To extend SATA power connectors: 150mm 150mm...
  • Page 7 Safety information • NEVER, under any circumstances, open the power supply unit. This is extremely dangerous due to the high voltage inside. • DO NOT insert any objects into the fan grill or the ventilation area of the power supply unit. • DO NOT place any objects in front of the fan or the ventilation area of the power supply unit that may obstruct or restrict the airflow. • USE ONLY the modular cables bundled with the power supply unit. • Avoid dust, humidity, and temperature extremes. Do not place the power supply unit in any area where it may become wet. • The power supply unit is for integration into a computer, and not intended for external or outdoor usage. • DO NOT use any third party cables or extension cables with this unit. Notice labels ROG Thor PSU...

This manual is also suitable for:

Rog-thor-850pRog-thor-1200p
