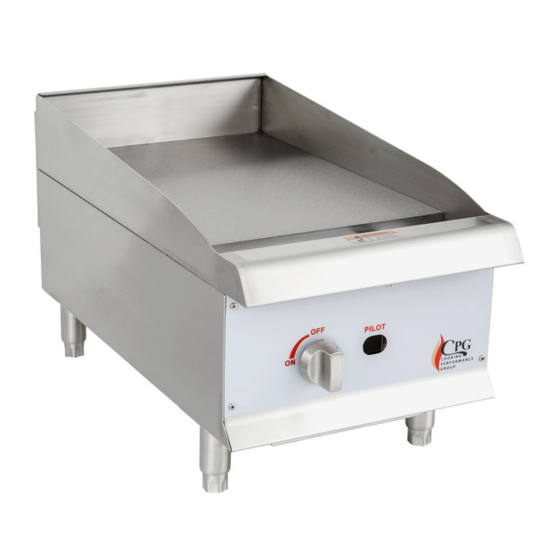

USER MANUAL
Gas Countertop Griddles
GMC
GTC
REVISED 3/2020
3182799
MANUAL & THERMOSTATIC GRIDDLE MODELS:
351GMCPG15NL - 351GMCPG72NL & 351GTCPG15NL - 351GTCPG72NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 351GMCPG Series and is the answer not in the manual?

Questions and answers

Summary of Contents for CPG 351GMCPG Series

  • Page 1 USER MANUAL Gas Countertop Griddles REVISED 3/2020 3182799 MANUAL & THERMOSTATIC GRIDDLE MODELS: 351GMCPG15NL - 351GMCPG72NL & 351GTCPG15NL - 351GTCPG72NL...
  • Page 2: Features And Specifications

    USER MANUAL Congratulations on your purchase of Cooking Performance Group commercial cooking equipment! At Cooking Performance Group, we take pride in the design, innovation, and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from your Cooking Performance Group equipment.
  • Page 3: Safety Precautions

    Read the installation, operating and maintenance instructions thoroughly before installing or servicing CPG equipment. This manual must be retained for future reference. • Instructions must be posted in a prominent location. All safety precautions must be taken in the event the user smells gas.
  • Page 4: Installation Instructions

    Installation and service should be performed by an authorized service agency. If you have questions concerning the installation, operation, maintenance or service of your equipment, visit CPG’s website at www.CookingPerformanceGroup.com. Make sure that the floor where you plan to locate the griddle is capable of supporting its weight along with any accessories.
  • Page 5: Gas Connection

    USER MANUAL GAS CONNECTION NOTE: This griddle ships from the factory configured for areas with an altitude that is lower than 6,500 feet. Ensure gas supply and gas type, as shown on unit serial plate agree. Unit installation must conform with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, the National Gas Installation Code, CSA-B149.1, or the Propane Installation Code, CSA-B149.2 as applicable and in accordance with local codes.
  • Page 6: Lighting Instructions

    "ON". LIGHTING MAIN BURNER: CPG MANUAL GRIDDLES To light burner, turn knob to "ON." Then back off to the desired flame level. The range of adjustment is virtually infinite between "ON"...
  • Page 7: Cleaning And Maintenance

    USER MANUAL OPERATING INSTRUCTIONS Turn the burners on about 15-20 minutes before cooking for preheating. Set knobs to the desired flame height or temperature. Each valve will control the gas flow to the burner to bring that area of the unit up to the set temperature. If different temperature settings are to be used, adjoining areas should be set at progressively higher temperatures using the lowest temperatures on the outside burners.
  • Page 8: Troubleshooting

    USER MANUAL TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Pilot burner not lit. Light and adjust pilot burner (pg. 6). Heat does not come on when the Griddle shut-off valve not in ON position. No solution necessary. thermostat or burner valve is on. Gas valve malfunction.
  • Page 9: Parts Diagram

    USER MANUAL EXPLOSION VIEW DRAWING    MODEL: 351GMCPG72NL     PARTS DIAGRAM   MANUAL GRIDDLE                                                       DESCRIPTION MODEL CODE  ...
  • Page 10 USER MANUAL DESCRIPTION MODEL CODE 351GMCPG15 01.05.1029395 351GMCPG24 01.05.1029318 351GMCPG36 01.05.1029318 GREASE TRAY 351GMCPG48 01.05.1029318 351GMCPG60NL 01.05.1030891 351GMCPG72NL 01.05.1030870 351GMCPG15 351GMCPG24 351GMCPG36 FOOT 01.02.1005373 351GMCPG48 351GMCPG60NL 351GMCPG72NL 351GMCPG15 351GMCPG24 351GMCPG36 PILOT PIPE 01.24.1071017 351GMCPG48 351GMCPG60NL 351GMCPG72NL 351GMCPG15 351GMCPG24 351GMCPG36 PILOT VALVE 01.20.1068509 351GMCPG48 351GMCPG60NL...
  • Page 11     USER MANUAL             PARTS DIAGRAM   (CONTINUED) THERMOSTATIC GRIDDLE                                                  ...
  • Page 12 USER MANUAL DESCRIPTION MODEL CODE 351GTCPG15 351GTCPG24 351GTCPG36 FLAME DEVICE SYSTEM 01.22.1069542 (NO INCLUDE INJECTOR) 351GTCPG48 351GTCPG60NL 351GTCPG72NL 351GTCPG15-NAT 351GTCPG24-NAT 351GTCPG36-NAT ODS INJECTOR - 0.45 01.20.1068513 351GTCPG48-NAT 351GTCPG60NL-NAT 351GTCPG72NL-NAT 351GTCPG15-LPG 351GTCPG24-LPG 351GTCPG36-LPG ODS INJECTOR - 0.25 01.20.1068512 351GTCPG48-LPG 351GTCPG60NL-LPG 351GTCPG72NL-LPG 351GTCPG15 01.05.1029395 351GTCPG24...
  • Page 13 USER MANUAL DESCRIPTION MODEL CODE 351GTCPG15-NAT 351GTCPG24-NAT 351GTCPG36-NAT 01.20.1068641 351GTCPG48-NAT 351GTCPG60NL-NAT 351GTCPG72NL-NAT ORIFICE 351GTCPG15-LPG 351GTCPG24-LPG 351GTCPG36-LPG 01.20.1068651 351GTCPG48-LPG 351GTCPG60NL-LPG 351GTCPG72NL-LPG 351GMCPG15 351GMCPG24 351GMCPG36 DIAL 06.05.1473191 351GMCPG48 351GMCPG60NL 351GMCPG72NL 351GTCPG15 351GTCPG24 351GTCPG36 ORIFICE CONNECTION 01.18.1067404 351GTCPG48 351GTCPG60NL 351GTCPG72NL www.CookingPerformanceGroup.com...
