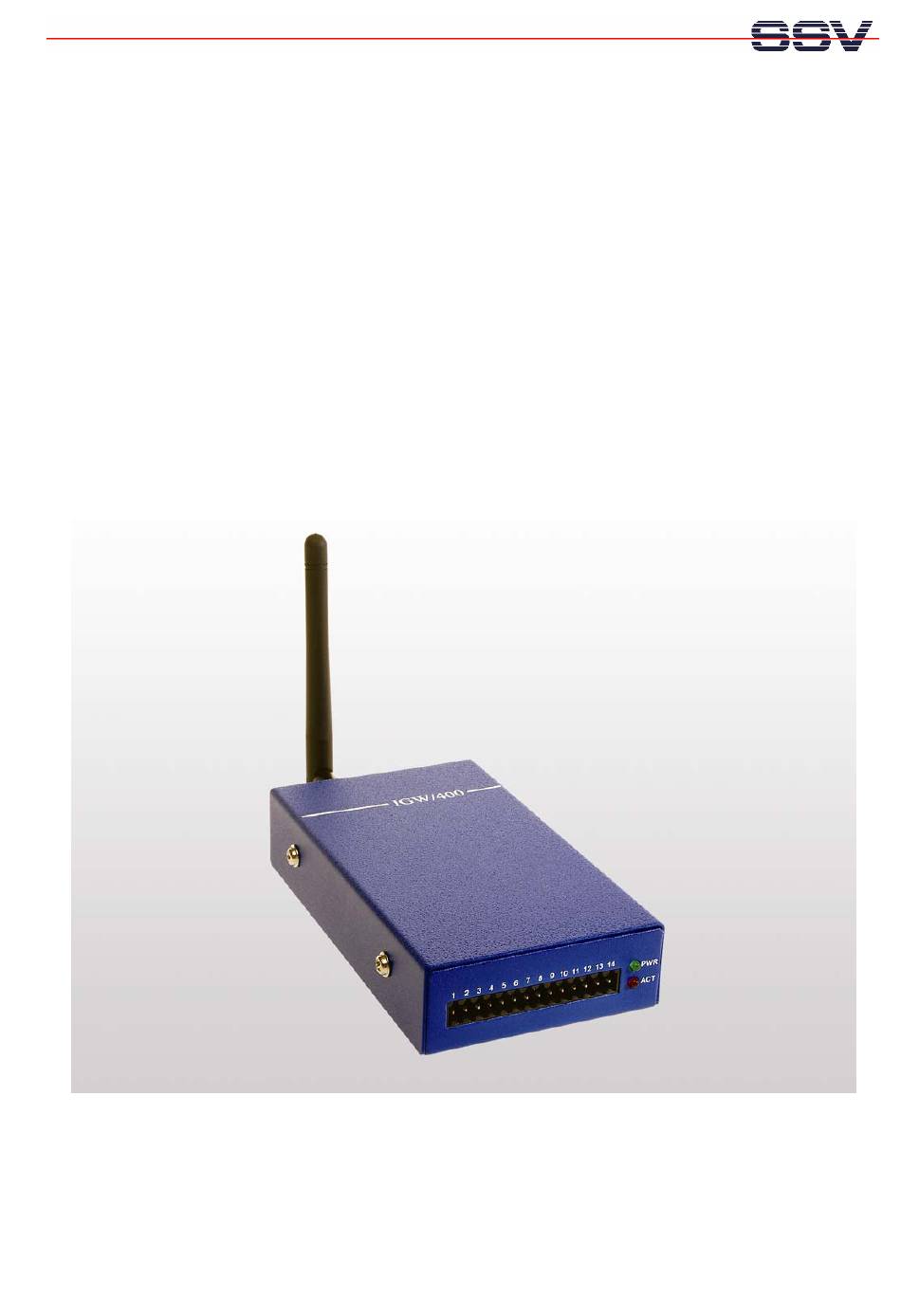

IGW/400-CAN
WLAN Device Server
Hardware Reference
SSV Embedded Systems
Heisterbergallee 72
D-30453 Hannover
Phone: +49 (0)511/40 000-0
Fax:
+49 (0)511/40 000-40
Manual Revision: 1.2
E-mail: sales@ist1.de
Date: 2006-01-09
For further information regarding our products please visit us at www.ssv-embedded.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGW/400-CAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SSV Embedded Systems IGW/400-CAN

  • Page 1 IGW/400-CAN WLAN Device Server Hardware Reference SSV Embedded Systems Heisterbergallee 72 D-30453 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Manual Revision: 1.2 E-mail: sales@ist1.de Date: 2006-01-09 For further information regarding our products please visit us at www.ssv-embedded.de...
  • Page 2: Table Of Contents

    IGW/400-CAN – Content CONTENT INTRODUCTION....................... 3 Block Diagram ..........................3 Features and Technical Data IGW/400-CAN ................4 OVERVIEW........................5 COMPONENTS ........................ 6 14-Pin Environment Interface....................6 Power LED..........................6 WLAN Activity LED........................6 RS232 Connector (UART1)......................6 Reverse SMA Connector for WLAN Antenna .................6 10/100 Mbps Ethernet Interface....................6 MECHANICAL DIMENSIONS ...................
  • Page 3: Introduction

    Block Diagram Figure 1 shows the block diagram of the IGW/400-CAN. UART1 of the WLAN Interface correlates over a level shifter with the Sub-D RS232 connector. UART2 is internally connected to the Environment Interface. This subsystem is based on an ARM7TDMI microcontroller with 256 Kbytes flash and 16 Kbytes SRAM memory.
  • Page 4: Features And Technical Data Igw/400-Can

    IGW/400-CAN – Introduction Features and Technical Data IGW/400-CAN Main Functionality: Wireless Device Server with CAN and integrated TCP/IP network stack. Wireless Interface Wireless LAN 802.11b/g Connection type Antenna Supported protocols WEP, TCP/IP, UDP/IP, AutoIP, ARP, ICMP, SNMP, DHCP, TFTP, Telnet, HTTP...
  • Page 5: Overview

    IGW/400-CAN – Overview OVERVIEW Figure 2: Overview IGW/400-CAN S S V E M B E D D E D S Y S T E M S...
  • Page 6: Components

    The green power LED indicates a present supply voltage. This LED is on when the IGW/400-CAN is provided with a voltage of 6 - 30 VDC by the power supply. If this LED is off, check the connection between the power supply and the IGW/400-CAN.
  • Page 7: Mechanical Dimensions

    IGW/400-CAN – Mechanical Dimensions MECHANICAL DIMENSIONS All length dimensions have a tolerance of 0.5 mm. Figure 3: Mechanical dimensions of IGW/400-CAN S S V E M B E D D E D S Y S T E M S...
  • Page 8: Mechanical Dimensions With Din-Rail Mounting Set

    Mechanical Dimensions with DIN-Rail Mounting Set All length dimensions have a tolerance of 0.5 mm. Figure 4: Mechanical dimensions of IGW/400-CAN with DIN-rail mounting set S S V E M B E D D E D S Y S T E M S...
  • Page 9: Mechanical Dimensions With Wall Mounting Set

    Mechanical Dimensions with Wall Mounting Set All length dimensions have a tolerance of 0.5 mm. Figure 5: Mechanical dimensions of IGW/400-CAN with wall mounting set S S V E M B E D D E D S Y S T E M S...
  • Page 10: Drilling Template For Wall Mounting Set

    IGW/400-CAN – Mechanical Dimensions Drilling Template for Wall Mounting Set All length dimensions have a tolerance of 0.5 mm. Figure 6: Drilling template for wall mounting set S S V E M B E D D E D S Y S T E M S...
  • Page 11: Pin Assignments

    IGW/400-CAN – Pin Assignments PIN ASSIGNMENTS 14-Pin Environment Interface Name Function 6 – 30 VDC power input Ground COM1 RS232 serial port, RXD pin COM1 RS232 serial port, TXD pin Ground GPIO1 I2C: SDA, ADC: IN1 (0 – 3 V) GPIO2 I2C: SCL, ADC: IN2 (0 –...
  • Page 12: Can Termination

    IGW/400-CAN – CAN Termination CAN TERMINATION It is possible to activate an internal termination resistor for CAN1 and CAN2. To activate the internal termination resistor for CAN1, just connect pin 9 and pin 10 of the environment interface with a simple cable bridge as shown in the following figure.
  • Page 13: Contact

    ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2006 SSV EMBEDDED SYSTEMS. All rights reserved. S S V E M B E D D E D S Y S T E M S...
