INSTALLATION INSTRUCTIONS

BEFORE INSTALLATION

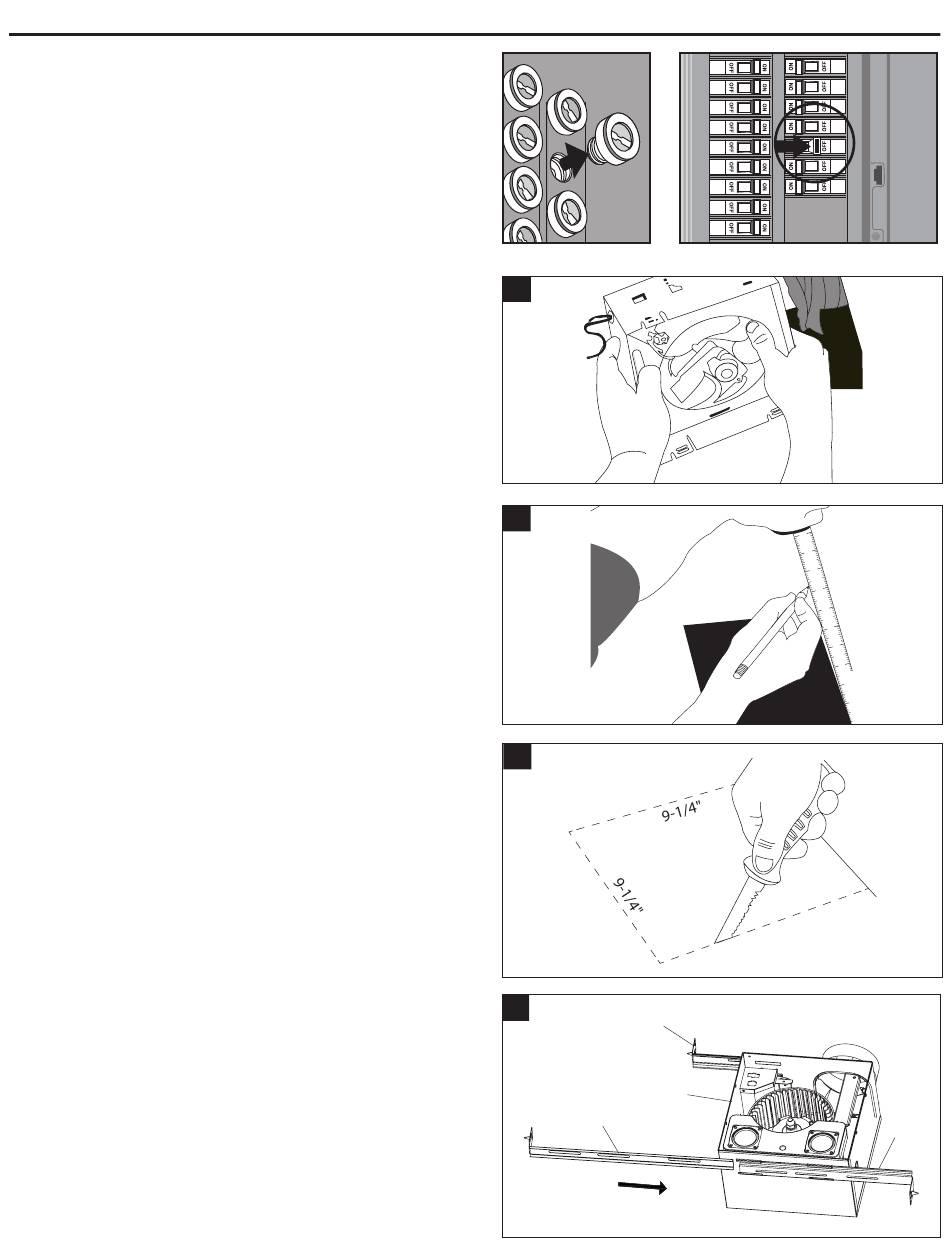

WARNING: RISK OF ELECTRIC SHOCK! Ensure the electricity
to the wires you are working on is shut off. Either remove the
fuse or turn off the circuit breaker before removing the existing
bath fan or installing the new one.
1. Remove existing fan.
If you are not replacing an existing fan, skip to step 4.
2. Measure the opening to ensure it is large enough to
accommodate the 9 in. x 9 in. dimensions of the new
fan housing (A).
3. If this fan is not replacing an old fan, be sure to cut a
9-1/4 in. x 9-1/4 in. opening for the fan housing (A).
4. Insert suspension bracket (C) into the tabs on the fan
housing (A) on the side with the duct opening. Insert
suspension bracket (D) into the tabs on the opposite side of
the fan housing (A) and then slide suspension bracket (E)
into suspension bracket (D).
1
2
3
4
E
6
C
A
D
