HOME NETWERKS 7130-04-BT Manual

Ventilating bath fan with bluetooth speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Home NetWerks
SIMPLE SOLUTIONS FOR A SMARTER HOME
®
The BLUETOOTH
word mark and logos are registered trademarks owned by BLUETOOTH SIG, Inc. and any use of the said
mark by Homewerks Worldwide is under license. Other trademark and trade names are those of their respective owners.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
www.homewerksww.com
READ AND SAVE THESE INSTRUCTIONS
VENTILATING BATH FAN
WITH BLUETOOTH
®
SPEAKER

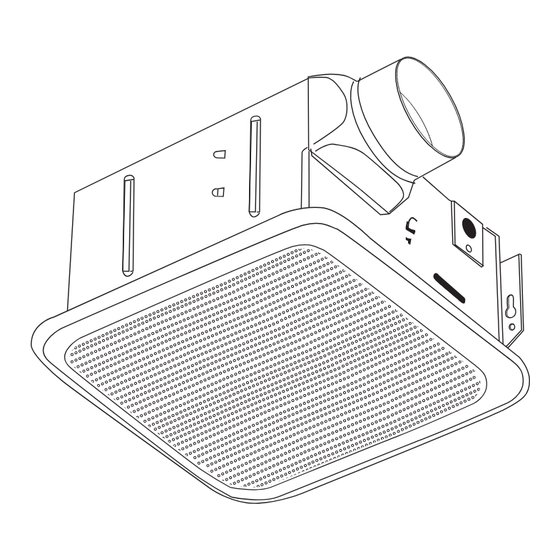

MODEL #7130-04-BT
Español p. 13
Jan. 11, 2016

Advertisement

Table of Contents
loading

Related Manuals for HOME NETWERKS 7130-04-BT

Summary of Contents for HOME NETWERKS 7130-04-BT

  • Page 1 VENTILATING BATH FAN WITH BLUETOOTH ® Home NetWerks SPEAKER MODEL #7130-04-BT SIMPLE SOLUTIONS FOR A SMARTER HOME Español p. 13 ® The BLUETOOTH word mark and logos are registered trademarks owned by BLUETOOTH SIG, Inc. and any use of the said mark by Homewerks Worldwide is under license.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications ........................2 Package Contents ..........................3 Safety Information ..........................4 Preparation ............................5 New Construction Assembly Instructions ...................6 Existing Construction Assembly Instructions ..................8 Pairing BLUETOOTH Device to Speaker ..................10 ® Care and Maintenance ........................10 Troubleshooting ..........................12 Warranty ............................12 PRODUCT SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Airflow: 70 CFM...

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fan body Grille with speaker HARDWARE CONTENTS (shown actual size) Long Wood Screw Qty. 2 www.homewerksww.com...

  • Page 4: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Always disconnect the power supply prior to servicing the fan, motor or junction box. Installation work must be carried out by a qualified person(s) in accordance to all local and safety codes including the rules for fire-rated construction.

  • Page 5: Preparation

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Tools Required for Assembly (not included): Hammer, Drill Bits, Flathead Screwdriver, Wire Nuts, Nails, Duct Tape, Phillips Screwdriver, Utility Knife Helpful Tools (not included): Electric Drill, Wood Screws WARNING: Turn off electricity at breaker box before beginning installation.

  • Page 6: New Construction Assembly Instructions

    NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS NEW CONSTRUCTION – ATTACHING TO THE JOIST BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Place the fan body (A) next to a ceiling joist or wall stud. The fan housing should be level and perpendicular to the joist or stud.
  • Page 7 NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS 4. Install a circular 4 in. duct (not included) and secure it with duct tape or clamps (neither included). Finish ceiling work. Ceiling hole should be aligned with edge of fan body (A). BLUETOOTH SPEAKER FAN GRILLE INSTALLATION ®...

  • Page 8: Existing Construction Assembly Instructions

    EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS Installing the fan body in an existing building REQUIRES AN ACCESSIBLE AREA (attic or crawl space) above the planned installation location and existing duct and wiring. BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1.
  • Page 9 EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 5. Mount fan body to the joist or stud using long wood screws (AA) where indicated by arrows outside fan body (A). Hardware Used Long wood screws 6. Pull wire through hole (5.1) and into junction box (not included).

  • Page 10: Pairing Bluetooth ® Device To Speaker

    BLUETOOTH SPEAKER FAN GRILLE INSTALLATION ® 2. Attach grille by pinching mounting springs and insert into narrow rectangular slots in the fan housing. Turn on power source. PAIRING YOUR BLUETOOTH® DEVICE TO THE SPEAKER 1. Turn ON bath fan. 2. To play your personal music files, you need a wireless BLUETOOTH device.
  • Page 11 CARE AND MAINTENANCE 1. Remove grille by squeezing spring and pull down. Wipe grille with a damp cloth. 2. Remove dust and dirt from the fan housing with a vacuum cleaner. 3. Dampen cloth with dust detergent, wipe the fan housing and wipe dry with a cloth.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Be sure the CFM rating on the fan matches CFM too great the size of your room. Check damper to ensure it is opening and Damper not working properly or damaged closing properly. If the damper has become damaged, please call Customer Service.
