Huvitz Kaizer HAB-8000 User Manual

Autoblocker
Hide thumbs Also See for Kaizer HAB-8000:
Table of Contents

Advertisement

Quick Links

1
User Manual
Autoblocker
HAB-8000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kaizer HAB-8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huvitz Kaizer HAB-8000

Summary of Contents for Huvitz Kaizer HAB-8000

  • Page 1 User Manual Autoblocker HAB-8000...
  • Page 2 HUVITZ reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.

  • Page 3: Table Of Contents

    CONTENTS Introduction ............................6 1.1. Main Features ........................6 1.2. System Configuration ......................7 1.3. Classification .......................... 7 Safety Information..........................8 2.1. Introduction ..........................8 2.2. Safety Symbols ........................9 2.3. Environmental Considerations ....................10 2.4. Safety Precautions ....................... 12 Autoblocker (HAB-8000) ........................
  • Page 4 HUVITZ KAIZER HAB-8000 6.3.4. Progressive Lens – Semi Auto ......................48 6.3.5. 3-dot Lens ..............................51 6.3.6. Frame Relocation ............................. 52 6.3.7. Manual Blocking Mode ......................... 54 6.4. Job Manager ........................58 6.4.1. Job Selection Tab ............................. 58 6.4.2. Function Button ............................59 6.4.3.
  • Page 5 System Maintenance ........................101 8.1. Automatic Calibration of Frame Reader ................. 101 8.1.1. Stroke Calibration ..........................102 8.1.2. Frame Calibration ..........................102 8.1.3. Pattern Calibration ..........................102 8.2. Save Image ........................103 8.3. Test Mode ......................... 107 8.4. Date & Time ........................107 8.5.

  • Page 6: Introduction

    HUVITZ KAIZER HAB-8000 Introduction This product is Auto Blocker HAB-8000, lenses can be analyzed and blocked automatically with this machine. So the HAB-8000 eliminates the need for manual inspection or manual blocking of the lens. Also, HAB-8000 is able to read the frame with simple steps.

  • Page 7: System Configuration

    1.2. System Configuration Auto Blocker (HAB-8000) Edger (HPE-8000) 1.3. Classification This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Safety Information

    HUVITZ KAIZER HAB-8000 Safety Information 2.1. Introduction Safety is everyone’s responsibility. The safe use of this machine is largely dependent upon the installers, users, operators, and managers. It is prerequisite to read and understand these specifications before installing, using, cleaning, fixing or revising. Fully understanding the whole instructions must be the first priority.

  • Page 9: Safety Symbols

    2.2. Safety Symbols The International Electrotechnical Commission (IEC) has established a set of symbols, which are listed below. This applies only to the instrument that has the certification symbol printed explicitly on the product label or sticker. I and O on power switch represent ON and OFF respectively. This symbol identifies caution, risk of danger.

  • Page 10: Environmental Considerations

    HUVITZ KAIZER HAB-8000 2.3. Environmental Considerations Avoid the following environments for operation or storage: Where the machine is exposed to water vapor. Don’t operate the machine with wet hands Where the machine is exposed to direct sunlight. Where there are big changes in temperature.
  • Page 11 Don’t disassemble or open the product. HUVITZ does not take responsibility for the possible problems Be careful not to block the fan located on the backside of the machine. Don’t plug the AC power cord into the outlet unless all parts of the machine are completely connected.

  • Page 12: Safety Precautions

    8. This machine must be connected with the accessories supplied by HUVITZ. If you are to use other accessories, their safety or usability must be checked and proved by their manufacturers or HUVITZ.
  • Page 13 cable connector(s) or receptacle(s), let the damage(s) be repaired by an authorized service technician. 12. Please do not pull on any cable. Always grab the plug when disconnecting cables. 13. Before you use, check the exterior of the machine and its conditions 14.
  • Page 14 HUVITZ KAIZER HAB-8000 CAUTION When moving the machine, first fix the stage and check whether the power supply is off.  Then, two or more persons should lift the bottom of the product with both hands. When setting down the machine, make sure not to be interfered with the obstacles. Set ...

  • Page 15: Autoblocker (Hab-8000)

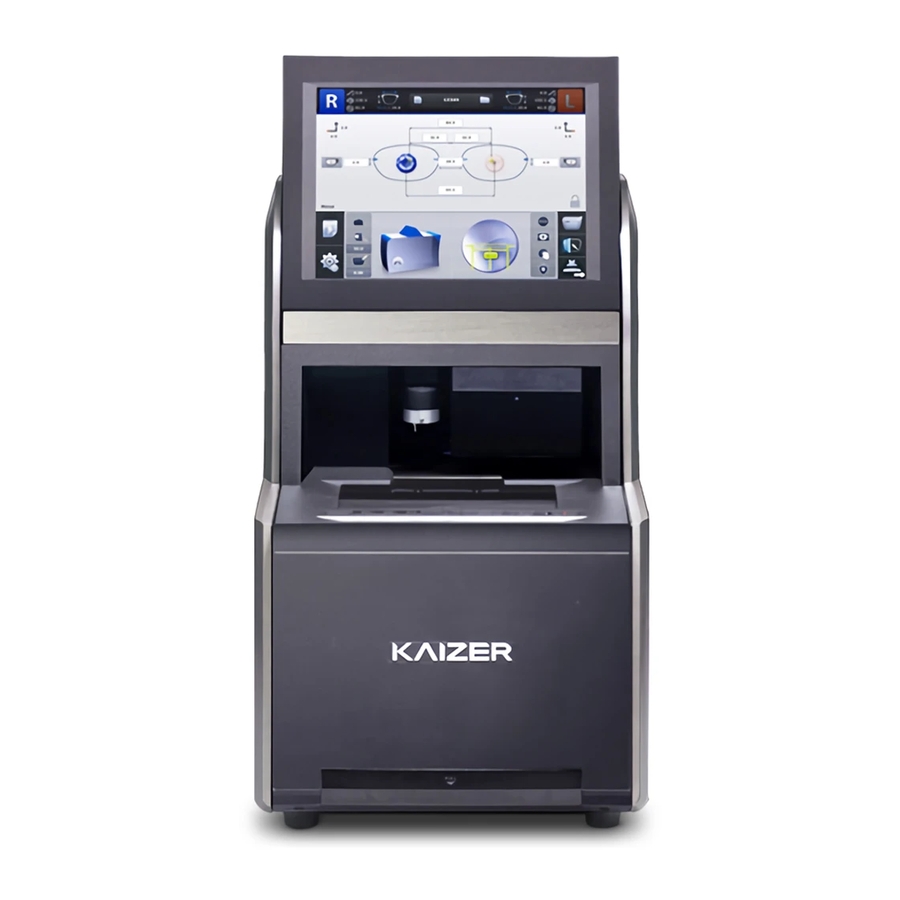

    Autoblocker (HAB-8000) 3.1. Front View Display (Touch Screen) SD card slot Blocking Arm Shutter Frame Reader Button Frame Reader Cover 3.2. Rear View Interface Terminal - EDGER 1 - EDGER 2 - Barcode Reader - Tracer Out Function Button Main Power Input and Fuse...

  • Page 16: Standard Accessories (Tool Box)

    HUVITZ KAIZER HAB-8000 3.3. Standard Accessories (Tool Box) Lens Supporter Lens Supporter for Frame Change Lens Supporter for Digital Scanning Pattern Holder Touch Pen Standard Pattern Standard Frame NOTE Only 3M LEAP-III™ is available for this product. Otherwise, the lens axis may move ...

  • Page 17: Installation

    Installation 4.1. Installation Procedure Remove the shock-absorbing materials from the packing box and take out the auto blocker ① carefully. Remove the shock-absorbing materials from the blocking arm and the workspace of Stylus. ② Plug the Power Cable into the socket at the rear side of the product and turn on the power to ③...

  • Page 18: Frame Reader

    HUVITZ KAIZER HAB-8000 Frame Reader 5.1. Frame Reader Button FRAME Frame Material LED STOP Material Selection - FRAME Button You must press FRAME button and select one of the following options (frame materials) before the frame is traced. METAL ...

  • Page 19: Frame Tracing

    5.2. Frame Tracing ① Place the frame between the upper grippers and the lower grippers. ② Move the frame in order that the bridge of frame is located at the central position between the left and right side grippers. ③ Press the FRAME button to select the frame material.
  • Page 20 HUVITZ KAIZER HAB-8000 NOTE The data will be automatically transmitted after finishing the tracing.  When tracing the single side (R or L), the data for R or L will be symmetrically copied to  the data of the other side automatically.

  • Page 21: Auto Blocker User Interface

    Auto Blocker User Interface 6.1. Main Screen Side Button Frame Information Job Number Layout Option Function Button Edging Option Lens Information Function Button 6.1.1. Side Button ① Press the R button to select right side. ② Press the L button to select left side.
  • Page 22 HUVITZ KAIZER HAB-8000 NOTE Each side of frame shape is exchanged by pressing the R button for a while.  The function of exchange R/L is useful when you selected wrong side while reading demo  lens or patterns. (Message pops up when press the R button for a while)

  • Page 23: Job Management

    6.1.1. Job Management 6.1.2. ① New : Clear current job screen and wait new job. ② Job Number : Display current job number (Press the button to change job number) ③ Job Manager : Press the job manager button to load a new job or move on to another job NOTE Virtual Keyboard ...
  • Page 24 HUVITZ KAIZER HAB-8000 NOTE Following additional functions are available by pressing ‘Job Management’ button for a  while. You can save current job on SD card by pressing ‘Job Number’ for a while.  You can start jobs with edger or remote edging host pc by pressing ‘Job Manager’ button ...

  • Page 25: Frame Information

    6.1.3. Frame Information ① Frame Curve ② Circumference ③ Minimum Lens Diameter ④ Width/Height 6.1.4. 6.1.5. Layout Option 6.1.6. ① Binocular PD: Input prescribed binocular PD value. ② Monocular PD : Input PD values for each side (L/R) ③ Bridge Size (DBL): Input value of bridge size. ④...
  • Page 26 HUVITZ KAIZER HAB-8000 NOTE When you input Binocular PD value, Monocular PD values for each side are automatically  calculated and vice versa. When you input Bridge Size value, FPD value is automatically calculated and vice versa.  In case of Two Eye Tracing, the value of FPD will be automatically transmitted and ...
  • Page 27 NOTE Layout information, edging information and lens information can be modified in advance  before or while tracing the frame information by frame reader or digital scan. The modified information will be applied to the new job from the frame reader or digital scan. In layout information, dialog PD, OH, Bridge Size, FPD are mandatory value.
  • Page 28 HUVITZ KAIZER HAB-8000 Warning message pops up if you start edging with the blanked box remained.  But, this warning message pops up only when the warning option is turned on in the  Preferences menu. NOTE Numeric Keypad ...

  • Page 29: Edging Option

    6.1.7. Edging Option ① Edging Type Bevel Flat Grooving Mini Bevel Asymmetric Bevel Semi U Bevel NOTE Available edging types can vary by wheel types of the edger.  Normal Type (RPG, RPW) Asymmetric Type (RPA, RPWA)
  • Page 30 HUVITZ KAIZER HAB-8000 NOTE You can input additional parameters according to the selected edging type.  Grooving  ① Groove Depth ② Groove Width Mini Bevel  ① Bevel Height Asymmetric Bevel  ① Front Height ② Rear Height Semi U Bevel ...
  • Page 31 NOTE After you’ve selected grooving as the edging type, you can select partial grooving by  pressing ‘Edging type’ button for a while. There are three ways for support to partial grooving.  Grooving Partial Grooving Hybrid Grooving Partial Bevel (Flat + Grooving) (Bevel + Grooving) (Bevel + Flat)
  • Page 32 HUVITZ KAIZER HAB-8000 ④ Front Safety Beveling Safety Beveling Off Safety Beveling On ⑤ Rear Safety Beveling Safety Beveling Off Safety Beveling Small Safety Beveling Large NOTE Polishing / Safety Beveling touch screen area  ① Polishing On/Off ② Front Safety Beveling On/Off ③...

  • Page 33: Lens Information

    NOTE If the wheel type of the edger is Asymmetric or Wide, Glass lens cannot be selected.  Glass lens cannot be processed in the following edging process.  Polishing, Grooving, Milling, Drilling(HDM-8000) 6.1.8. Lens Information ① Lens Type Single Bi-focal Bi-focal Bi-focal...
  • Page 34 HUVITZ KAIZER HAB-8000 ④ Safety Mode Safety Mode Off Safety Mode On NOTE In manual blocking mode, you can change the guideline according to the lens type.  Normal lens  ① 3-dot length Bi-focal lens  ① Near vision area diameter Progressive lens ...
  • Page 35 NOTE Boxing Center is useful for the following cases.  When PD is in eccentric position  When frame is horizontally wide  Super Hydrophobic Lens or Ultra Hi-Index Lens  When you choose the options for Bi-Focal, Near Vision Shape will be displayed on the ...
  • Page 36 HUVITZ KAIZER HAB-8000 [Distance(mm) mode from the front side] Using the distance (mm) mode from the front side, the operator can designate the specific  moving distance. However, if the thickness of the thin part is less than twice the designated value, the machine will process at internal center, which is 50% in ratio.

  • Page 37: Function Button

    6.1.9. Function Button ① Expert Job Editor ② Menu ③ Digital Designer (Digital Pattern + Hole Editor) ④ Digital Scan + Tracer UI ⑤ Blocking NOTE The expert user can work more quickly by using ‘Expert Job Editor’.

  • Page 38: Blocking Screen

    HUVITZ KAIZER HAB-8000 6.2. Blocking Screen Press button on the Main Screen to enter blocking screen. Lens Power Lensmeter Exit Lens Detection Mode Blocking Mode Lens Type Manual brightness Block Send control 6.2.1. Lens Detection Mode ① Intelligent : If a lens is placed on the lens supporter, HAB detects the type of lens and its optical center intelligently.

  • Page 39: Lens Type

    6.2.2. Lens Type ① Single Vision Lens ② Bi-focal Lens (Round) ③ Bi-focal Lens (Flat) ④ Bi-focal Lens (Curved) ⑤ 3-dot Lens ⑥ Progressive Lens ⑦ EX Lens 6.2.3. Lens Power ① ② ③ Change Diopter Format ④ Prescription axis CAUTION The CYL sign and the CYL axis on your prescription should be identical with those on the blocking screen.

  • Page 40: Lensmeter

    HUVITZ KAIZER HAB-8000 6.2.4. Lensmeter It measures SPH and CYL power, AXIS and the optical center of the lens. CAUTION Do not to move the lens after the measurement is completed. Otherwise, PD or OH of the  blocked lens becomes incorrect.

  • Page 41: Blocking For The Different Types Of Lenses

    6.3. Blocking for the Different Types of Lenses 6.3.1. Single Vision Lens ① Place a frame on the gripper of the frame reader and read the frame. ② Load the traced job data in the Job Manager. ③ Set layout data or edging options on the main screen if needed.
  • Page 42 HUVITZ KAIZER HAB-8000 ④ Move on to the blocking screen. ⑤ Place the lens on the lens supporter and then select single vision as the lens type on the blocking screen.
  • Page 43 ⑥ Press the MEASUREMENT button to check the optical center and the lens power. ⑦ After finishing the measurement, the BLOCK button blinks. Press the BLOCK button to start blocking. NOTE After the measurement, the frame shape is displayed in blue color on the blocking screen ...
  • Page 44 HUVITZ KAIZER HAB-8000 NOTE If you execute the lensmeter to measure cylindrical single vision lens without inputting the  axis value in advance, numeric keypad pops up for you to input the value. The measurement is completed, if you had inputted the value in advance. In this way, you can prevent yourself from forgetting to input the axis value.

  • Page 45: Bi-Focal Lens

    NOTE Following message pops up when the measurement is interrupted by dust or markings on  the lens. In this situation, try to measure again after cleaning the lens or moving the lens. 6.3.2. Bi-focal Lens ① Procedure for preparing job data is same with single vision lens (see 6.4.1) ②...
  • Page 46 HUVITZ KAIZER HAB-8000 NOTE For an accurate measurement, place the lens avoiding overlap of near vision area and the  circle at the center of the plate. It is recommended to place the plate like an inverted triangle for the minimization of its ...

  • Page 47: Progressive Lens

    6.3.3. Progressive Lens ① Procedure for preparing job data is same with single vision lens (see 6.4.1) ② Set the Lens Detection Mode to Intelligent or select lens type to Progressive lens in the Auto mode ③ Put a lens on the lens supporter. ④...

  • Page 48: Progressive Lens - Semi Auto

    HUVITZ KAIZER HAB-8000 6.3.4. Progressive Lens – Semi Auto ① This Semi-Auto Progressive Lens Mode is for when the detection result is not accurate because of the unclear marks of the progressive lens. ② Set the Lens Detection Mode to Progressive lens in the Auto mode.
  • Page 49 Semi Auto Progressive Lens Mode Screen ① Auto Detection. You can select or deselect the detected line by touching. ② Select all detected lines. ③ Deselect all detected lines. ④ Set axis with two points by dragging them. ⑤ Set eye point by dragging. ⑥...
  • Page 50 HUVITZ KAIZER HAB-8000 NOTE Laser Mark Mode( ) provides a method to set axis and eye point by using laser  marks on lens surface when the progressive lens’s marking is damaged. Laser Mark  ① Find two laser marks on the lens and mark dots.

  • Page 51: 3-Dot Lens

    6.3.5. 3-dot Lens ① Procedure for preparing job data is same with single vision lens (see 6.4.1) ② Set the Lens Detection Mode to Intelligent or select lens type to 3-dot lens in the Auto mode. ③ Place a lens on the lens supporter. ④...

  • Page 52: Frame Relocation

    HUVITZ KAIZER HAB-8000 6.3.6. Frame Relocation After detecting optical center, the auto blocker locates the frame shape on the lens shape for an optimized edging. But the frame might be slightly off the lens shape due to the frame shape, PD, and OH.
  • Page 53 ① Side Selection ② PD Adjustment ③ OH Adjustment ④ Axis adjustment ( -30 degree ~ 30 degree ) ⑤ Apply ⑥ Cancel...

  • Page 54: Manual Blocking Mode

    HUVITZ KAIZER HAB-8000 6.3.7. Manual Blocking Mode This manual blocking mode is for blocking a lens manually. Frame Position Adjustment Manual Mode Lens LED Brightness Normal/Zoom-in Type Lens Type ① 3-dot Lens ② Bi-focal Lens (Round) ③ Bi-focal Lens (Flat) ④...
  • Page 55 Tool Button ① Adjustment of frame position ② Manual adjustment of LED brightness ③ Live image Normal / Zoom (x2) ④ Change of guide line...
  • Page 56 HUVITZ KAIZER HAB-8000 NOTE You can change the guideline manually according to the lens type.  3-dot lens  ① 3-dot length Bi-focal lens  ① Near vision area diameter Progressive lens  ① Eye point height ② Axis length...
  • Page 57 Frame location adjustment If it is difficult to place the lens because of the lens size or eccentric optical center, move the frame shape using ① ② Down ③ Left ④ Right ⑤ Apply ⑥ Cancel...

  • Page 58: Job Manager

    HUVITZ KAIZER HAB-8000 6.4. Job Manager Job Selection Tab Exit Job List Function Button 6.4.1. Job Selection Tab ① Waiting Job: Newly received Job data from Frame Reader or Digital Scan. ② Working Job: Blocking job or Editing job. ③...

  • Page 59: Function Button

    6.4.2. Function Button ① Open : Load the selected job ② Save : Save the selected job to the SD memory card ③ Search : Search Job number ④ Delete : Delete selected job NOTE Save function is only available on Waiting/Working/Completed list. ...

  • Page 60: Working Job

    HUVITZ KAIZER HAB-8000 6.4.4. Working Job ① Blocking : Displays the progress of blocking. ② Time : Displays the job start time. 6.4.5. Completed Job Tab ① Time : Displays the job finish time. NOTE You can check current processing state with the following icons ...

  • Page 61: Job Searching

    6.4.6. Job Searching The ‘Job Search’ function finds the JOB which user want to get, on the job list. ① Start ‘Job Search Mode’ by pressing the search button. ② Enter the job number you want with the virtual keyboard. ③...
  • Page 62 HUVITZ KAIZER HAB-8000 Searched item display Prev/Next Search button NOTE You can search with only few letters, not the whole words. For example, you can search  the Job Number ‘HUVIT_123’ only with ‘HUVIT’ or ‘123’. You can look at the other research results with ‘Next’ and ‘Prev’ button ...

  • Page 63: Digital Pattern

    6.5. Digital Pattern The “Digital Pattern” modifies the lens shape in left/right, top/bottom as well as direction and optimizes the fitting for Rimless and Semi-Rimless. To use Digital Pattern, press button on the bottom right of the main screen and then select Digital Pattern tab at top left of the screen.

  • Page 64: Enlargement/Reduction

    HUVITZ KAIZER HAB-8000 6.5.1. Enlargement/Reduction Lens shape can be modified both horizontally and vertically. Touch Interface To modify lens shape, make use of the 8 touch points around the lens shape. Horizontal + Vertical Horizontal Vertical Horizontal + Vertical Horizontal...

  • Page 65: Near Vision Area Enlargement/Reduction

    6.5.2. Near Vision Area Enlargement/Reduction Lens shape can be changed in four directions (Bottom - Near Vision Area, Top, Left, Right). Touch Interface To modify lens shape, make use of 4 touch points around the lens shape. Left or Right Top or Bottom Near Vision Area (Bottom) Left...

  • Page 66: Rotation

    HUVITZ KAIZER HAB-8000 Value Input You can modify the lens shape by entering the values directly in the Input Area. ① Left ② Right ③ Near Vision Area (Bottom) ④ After selecting the item to change, enter the value using the numeric keypad.
  • Page 67 Clockwise Counterclockwise Value Input You can modify the lens shape by entering value directly in the Input Area ① Width ② Height ③ Angle (Clockwise, 0 ~ 360) ①, ② are the same function in the  Enlargement/Reduction mode. After selecting the item to change, enter the value using the numeric keypad.

  • Page 68: Partial Modification

    HUVITZ KAIZER HAB-8000 6.5.4. Partial Modification Lens shape can be modified partially. Touch Interface Set modification area by touching any point on lens shape. The point becomes the center of the modification area. To adjust modification range, touch and drag one of...

  • Page 69: Reset

    Modification range/Lens shape change You can modify the lens shape with Input button. ① Position change (counter clockwise, clockwise) ② Range change (enlargement, reduction) ③ Wide Partial Modification (concave, convex) ④ Partial Modification (concave, convex) During partial modification, where is not able to process physically is colored red.

  • Page 70: Toggle R/L Sync

    HUVITZ KAIZER HAB-8000 6.5.6. Toggle R/L Sync Function for R/L Sync function. R/L Sync Off R/L Sync On NOTE “Copy” button ( ) is available when R/L sync option is turned off. Shape of the current  side is copied to the other side by pressing this button.
  • Page 71 NOTE You can modify half-framed lens or rimless lens conveniently by using the digital pattern.  The digital pattern is useful for the bi-focal lens or the progressive. Sometime too small  frame shape might cut out the near vision area. In this case, the digital pattern provides the enlargement of the frame shape.

  • Page 72: Hole Editor

    HUVITZ KAIZER HAB-8000 6.6. Hole Editor This screen is for the edition of hole position for drilling. To use the hole editor, click the button on the main screen right below, and then select the hole editor button in the upper left.

  • Page 73: Upper Side Of Hole Editor

    6.6.1. Upper Side of Hole Editor ① Hole Editor: Starts the hole editor. If the button is green, hole editor is now available. ② Digital Pattern: Starts the digital pattern. ③ Job Number: Displays the job number of currently working job. You can modify the number by touching here.

  • Page 74: Preview

    HUVITZ KAIZER HAB-8000 NOTE Elements required for drilling are displayed on working area. The figure below describes  each element. Hole Frame Center Horz. Coordinate Notch or Slot Undrillable area Vert. Coordinate 6.6.3. Preview ① Select Right/Left: You can change the selection of the left/right.

  • Page 75: Function Buttons

    6.6.4. Function Buttons ① Hole / Slot Detection: You can use this button when you want to add holes/slots after the frame reader has read a demo lens. If the camera is on live image mode, you can start detection by pressing this button. If the camera is on still image mode, you can change the mode to live image and start detection by pressing this button.
  • Page 76 HUVITZ KAIZER HAB-8000 ① Select moving type: You can select moving type. When the selected one is a hole, it supports just one moving type. When the selected one is a slot, it supports 6 types of moving. ② Move hole / slot: It provides moving buttons according to the selected moving type.
  • Page 77 (Slot only) This provides the function to move the end position of a slot. (Slot only) This provides the function to rotate a slot. (Slot only) This provides the function to change the length of a slot. (Slot only) This provides the function to change a slot to a notch and to move the notch.
  • Page 78 HUVITZ KAIZER HAB-8000 NOTE On the preset, there are three functions.  ① Save the hole / slot data: You can save the hole / slot data of the current job to the SD card. List of hole / slot data: This displays a list of hole / slot data in the SD card.
  • Page 79 ③ Set preset: You can set the 8 preset buttons. ( ). You can put hole/slot saved in SD card to each button. These 8 presets can be used to add the favorite set of the hole / slot data to the current job, easily Select preset button:...
  • Page 80 HUVITZ KAIZER HAB-8000 NOTE The mirroring is a function that copies the selected hole / slot to the opposite side. The distance between mirrored hole/slot and the frame edge is same with the distance between original one and the frame edge. In case of slot, the distance between the start point of a side...

  • Page 81: List Of Hole/Slot

    6.6.5. List of Hole/Slot It displays the hole / slot list of the current job. You can change the position of the hole / slot by pressing the coordinates displayed on the list. ① Select the hole / slot: You can select the holes / slots to make a group by pressing here. The green circle is the selected one.
  • Page 82 HUVITZ KAIZER HAB-8000 NOTE Display options for X coordinate  Center of frame Frame edge Display options for Y coordinate  Center of frame Bottom of box...

  • Page 83: Property Of Hole/Slot

    6.6.6. Property of Hole/Slot It displays the properties of the selected hole / slot. ① Group: If selected hole / slot belongs to a group, it displays the group id. If selected hole / slot does not belongs to a group, it displays with the ‘-’.

  • Page 84: Digital Scan + Tracer Ui

    HUVITZ KAIZER HAB-8000 6.7. Digital Scan + Tracer UI 6.7.1. Digital Scan This is for recognizing the frame/holes/slot/notch by scanning demo-lens. To use digital scan, click the button on the bottom right of the main screen, and then select the digital scan button on the upper left ①...

  • Page 85: Tracer Ui (Frame)

    ⑥ Save the Digital Scan result to Job Manager. ① Change to Digital Scan lens plate. ② Mark 3-dots or draw straight line for axis on the demo-lens. Then, place the lens on the plate. ③ Select side. ④ Press the start button for Digital Scan. ⑤...
  • Page 86 HUVITZ KAIZER HAB-8000 JOB ID Touch the text window and enter a job number directly.  Frame Material ① Select metal frame. ② Select hard plastic. ③ Select soft plastic. Frame Reading Mode ① Select both sides reading. ② Select right side reading.

  • Page 87: Tracer Ui (Pattern)

    6.7.3. Tracer UI (Pattern) To use the Tracer UI(Pattern), press the button on the bottom right of the main screen, and then select the Tracer UI button on the upper left. In addition, set up the pattern holder. Then following screen will pop up. JOB ID Touch the text window and enter a job number directly.
  • Page 88 HUVITZ KAIZER HAB-8000 Frame Reading Mode ① Select right side reading. ② Select left side reading. Bridge Size and Start ① Input bridge size value. Use buttons or text window. ② Start Tracing.

  • Page 89: Job Editor

    6.8 Job editor Job editor provides the whole edging options at once, so it is useful for the skillful users. ① PD (Binocular PD, R/L Monocular PD) ② OH (ΔY, Box height, Mix height) ③ Bridge size (DBL), FPD ④ Frame curve(CIRC), Circumference(FCRV) ⑤...
  • Page 90 HUVITZ KAIZER HAB-8000 NOTE The job editor options are applied to right/left both side concurrently. But if the options distinguish the two sides, those are applied only to the selected side.

  • Page 91: Configuration

    Configuration Press button on the bottom left of the Main screen. MENU Screen ① Preference ② Installed Software version information ③ Exit NOTE Refer to ‘Chapter 8. System Maintenance’ for the other functions.

  • Page 92: Preference

    HUVITZ KAIZER HAB-8000 7.1. Preference User Interface can be customized to user’s preference. 7.1.1. General Default settings for User Interface option.  Language – Sets default language  Beep Sound – Turns on or off the beep sound  Sleep Mode – Inputs sleep mode waiting time (minutes) ...
  • Page 93 NOTE Menu Form  ① Tab Menu ② List Box Setting ③ Radio Button Setting ④ Value Setting ⑤ Save ⑥ Cancel...

  • Page 94: Layout

    HUVITZ KAIZER HAB-8000 7.1.2. Layout Default settings for Layout options Default Side – Select the default side for a new job  Automatic Switch Side – Set automatic change after blocking  Lens Type – Select the default lens type for a new job ...

  • Page 95: Edging

    7.1.3. Edging Default settings for Edging options. Lens Material – Set the default lens material  Safety Mode – On or Off the Safety Mode  Enable Glass Flat Edging – On or Off the flat edging for glass lens. ...

  • Page 96: Hole Editor

    HUVITZ KAIZER HAB-8000 7.1.4. Hole Editor Default settings for Hole Editor options. Use Hole Editor – Hole Editor On/Off  Hole Depth – Set default hole/slot depth value  Hole Diameter – Set default hole/slot diameter value  Angle Default Options – Set default tilting angle mode and manual tilting value ...

  • Page 97: Digital Pattern

    7.1.5. Digital Pattern Default Settings for Digital Pattern options. Digital Pattern Apply Method  Fix FPD – Change the frame pattern and recalculate the Bridge Size based on fixed  FPD. Fix Bridge Size – Change the frame pattern and recalculate FPD based on fixed ...

  • Page 98: Communication Port

    HUVITZ KAIZER HAB-8000 7.1.6. Communication Port Default settings for communication options. Auto Transmission after Blocking Both Side – On or Off the auto transmission after  blocking both side Transmission Target Mode – Select the mode if autoblocker uses two edger ports.

  • Page 99: Lensmeter

    7.1.7. Lensmeter Default Settings for Lensmeter options. Diopter Step – Set unit step of lens power  Cylinder Display Format – Set display format of cylindrical sign  Prism Compensation Mode - Set Prism Compensation mode  NOTE When blocking 3-dot lens or progressive lens, 3-dot, horizontal line and boxing center on the lens surface are used.

  • Page 100: Tracer

    HUVITZ KAIZER HAB-8000 7.1.8. Tracer Default Settings for Tracer options. Manufacturer ID – Set machine ID  Transmission Target – Set transmission target  Protocol (Tracer Out) – Set communication protocol  Baud rate (Tracer Out) – Set communication speed ...

  • Page 101: System Maintenance

    System Maintenance 8.1. Automatic Calibration of Frame Reader Automatic Calibration of Frame Reader is required with the following cases, When the Size or Axis value of the traced data seems to have a problem,  When the Frame Reader seems to have a problem in operating normally. ...

  • Page 102: Stroke Calibration

    HUVITZ KAIZER HAB-8000 8.1.1. Stroke Calibration Procedures for stroke calibration ① Press MENU button and select CALIB. ② Press FRAME button and select STROKE. ③ Press BOTH button. ④ Pull the Gripping bars to the maximum. ⑤ Press BOTH button to start calibration.

  • Page 103: Save Image

    8.2. Save Image When the auto blocker cannot detect optical center because of marking recognition failure or the digital scan quality is low, you can save the image file to SD card and request improvement. When the auto blocker failed in detecting optical center When the auto blocker cannot detect optical center because of marking recognition failure, you can save the image file to SD card.
  • Page 104 HUVITZ KAIZER HAB-8000 Save still image in blocking mode You can save the still image even when the autoblocker has detected the optical center successfully. In this case, SD card must be inserted in slot. Long touch ① Press one of the lens type buttons for a long time, then “Holding Down the Button” message will pop up.
  • Page 105 Save the lensmeter image When lensmeter measuring, if the auto blocker cannot detect the optical center because of dust or markings on lens, you can save the lensmeter image. In this case, SD card must be inserted in slot. Long touch ①...
  • Page 106 HUVITZ KAIZER HAB-8000 Save Digital Scan Image During digital scan, you can save digital scan image if you want. In this case, SD card must be inserted in slot ① Please press the scan button on digital scan window for a long time, then “Holding Down the Button”...

  • Page 107: Test Mode

    8.3. Test Mode You can test Blocking arm, PI, Limit switch, lensmeter, Motor PI, COMM. 8.4. Date & Time Please set the date and time first after you install this machine.

  • Page 108: Touch Test

    HUVITZ KAIZER HAB-8000 8.5. Touch Test You can check the normal operation of the touch screen NOTE You must use the emergency touch screen test function of the touch test is not possible. Please find out the Function button at the rear side of the autoblocker.

  • Page 109: Configuration Management

    8.6. Configuration Management You can backup or restore system configuration data. ① Backup to SD Card – Backup the configuration data to SD card. ② Restore from SD Card – Restore the configuration data from SD card NOTE Configuration Management function is available when SD card inserted. ...

  • Page 110: S/W Upgrade

    HUVITZ KAIZER HAB-8000 8.7. S/W Upgrade You can upgrade software. HAB-8000 consists of three kinds of software. GUI software handles user input, MOTOR software controls blocking arm and frame reader control software. ① GUI – Upgrade GUI software ② MOTOR – Upgrade MOTOR software.
  • Page 111 NOTE It is highly recommended to use latest software.  Software version is displayed on the menu screen.  How to upgrade GUI software  ① Copy upgrade file to SD card and insert SD card into the system. ② Check the SW version displayed on the upgrade dialog box ③...

  • Page 112: Maintenance Code

    HUVITZ KAIZER HAB-8000 8.8. Maintenance Code Maintenance code is used for the engineer to diagnose the system.

  • Page 113: Maintenance Tips

    8.9.2. Regular Maintenance It is recommended to keep the regular maintenance cycle in order to maintain the Edging Performance. Be sure to carry out the regular maintenance by the service technician of HUVITZ or the technician authorized by HUVITZ. 8.9.3.

  • Page 114: Troubleshooting Guide

    HUVITZ KAIZER HAB-8000 Troubleshooting Guide If you happen to have any problem, please check the following lists and take action as provided. If you cannot solve it, please contact HUVITZ. Problem Cause Solution ① Release the ball plunger a little bit When blocking, so that the block falls out smoothly.

  • Page 115: Specifications And Accessories

    10. Specifications and Accessories 10.1. Standard Accessories User’s Manual ············ ····· ···· ···· ······· ····· ····· ····· ····· ····· ····· ····· ···· ······· ····· ····· ····· ····· ····· ····· ····· ·· 1 Lens Supporter ·················································································································· 1 Lens Supporter for Frame Change ························································································· 1 Lens Supporter for Digital Scanning ·······················································································...

  • Page 116: Specifications

    HUVITZ KAIZER HAB-8000 10.2. Specifications Tracing Type Automatic 3D Binocular Tracing Tracing Mode Auto, Semi-Auto Tracing Size Frame ⌀16.0 ~ 92.0mm, Pattern ⌀16.0 ~ 84.0mm Frame Material Metal, Hard Plastic, Soft Plastic Data Processing FPD, Frame Curve, Circumference, 3D Angle, Concave Shape Lensmeter Camera CMOS B/W 1.3M...

  • Page 117: Drawings Of System

    10.3. Drawings of System...

  • Page 118: Service Information

     If you can’t contact with your local distributor, you can directly get in touch with the service department of the HUVITZ using the phone number and the address written in the below table. How to Contact HUVITZ Co., Ltd HUVITZ Co., Ltd.(Headquarter)
