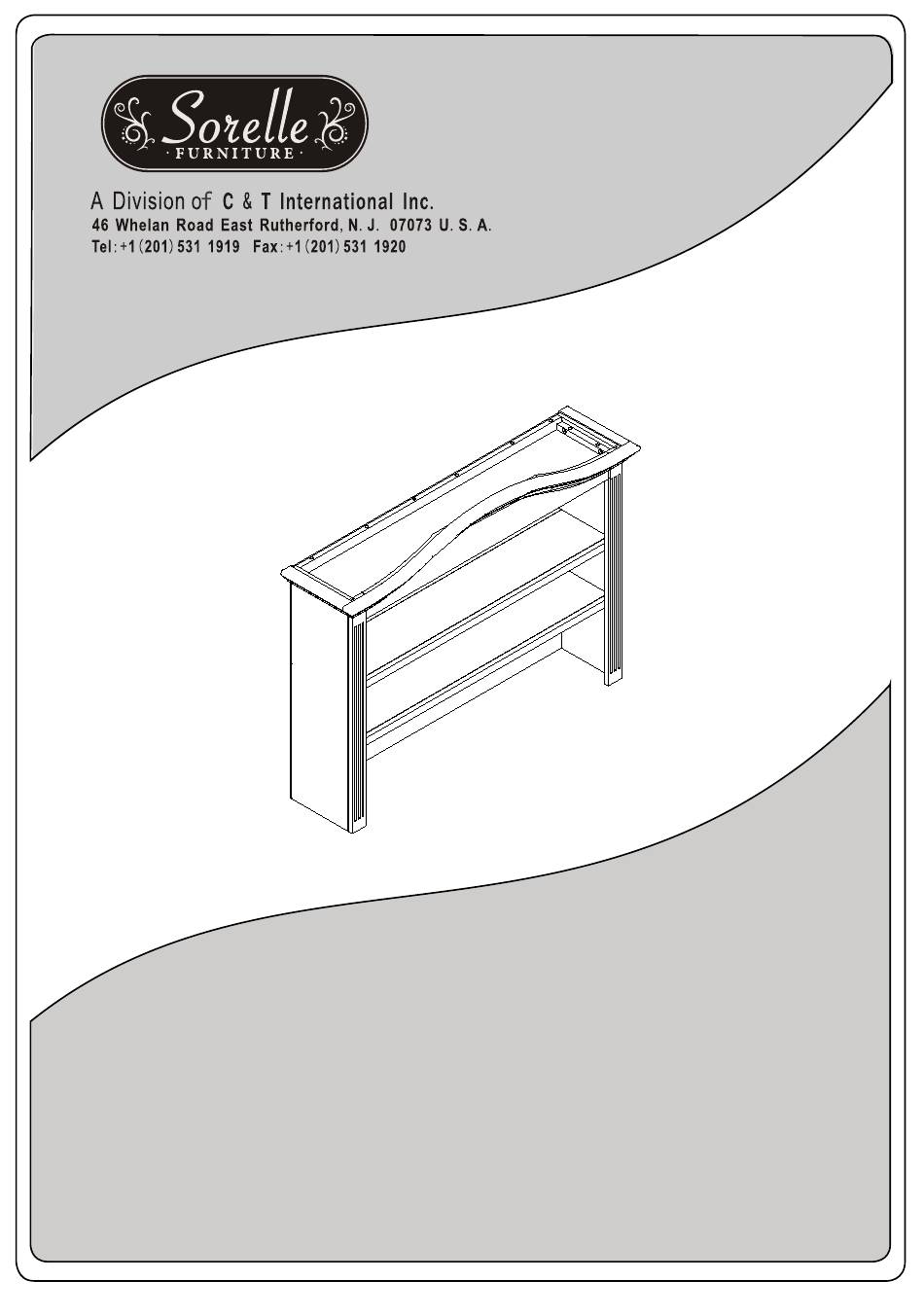

- Page 1 Website: www.sorellefurniture.com Providence Hutch Important Information: Before assembly, read these instructions. Make sure all preassembled parts are tight. Store this instruction manual for future reference. Made in Vietnam...
- Page 2 Providence Hutch Assembly Parts Adjustable Shelf (1 pc) Top panel ( 1 pc) (G) Upper Back Panel (1 pc) Left Side panel (1 pcs) (H) Down Back Panel (1 pc) Right Side panel (1 pcs) Back- Bottom Rail (1pc) Fixed Shelf (1 pc) Assembly Hardware ( a ) Shelf Support (4 pcs)
- Page 3 Providence Hutch Assembly Attach the Top panel(A)& the Back Insert Four (4) Cam Bolt(d) to Side Bottom Rail(D) to Side panel(B&C) panel(B&C). See Figure 1. See Figure 2. (4x) (4x) (4x) (1x) Figure 1. Figure 2. Attach the Fixed Shelf (E) to Side panel(B&C) See Figure 3.
- Page 4 Providence Hutch Assembly Back Panel Assembly See Figure 4. (46x) Figure 4. Tool required Adjustable Shelf (F) Assembly See Figure 5. (4x) (4x) Figure 5. Tool required Hutch with Combo See Figure 6. Figure 6. Page 4...
