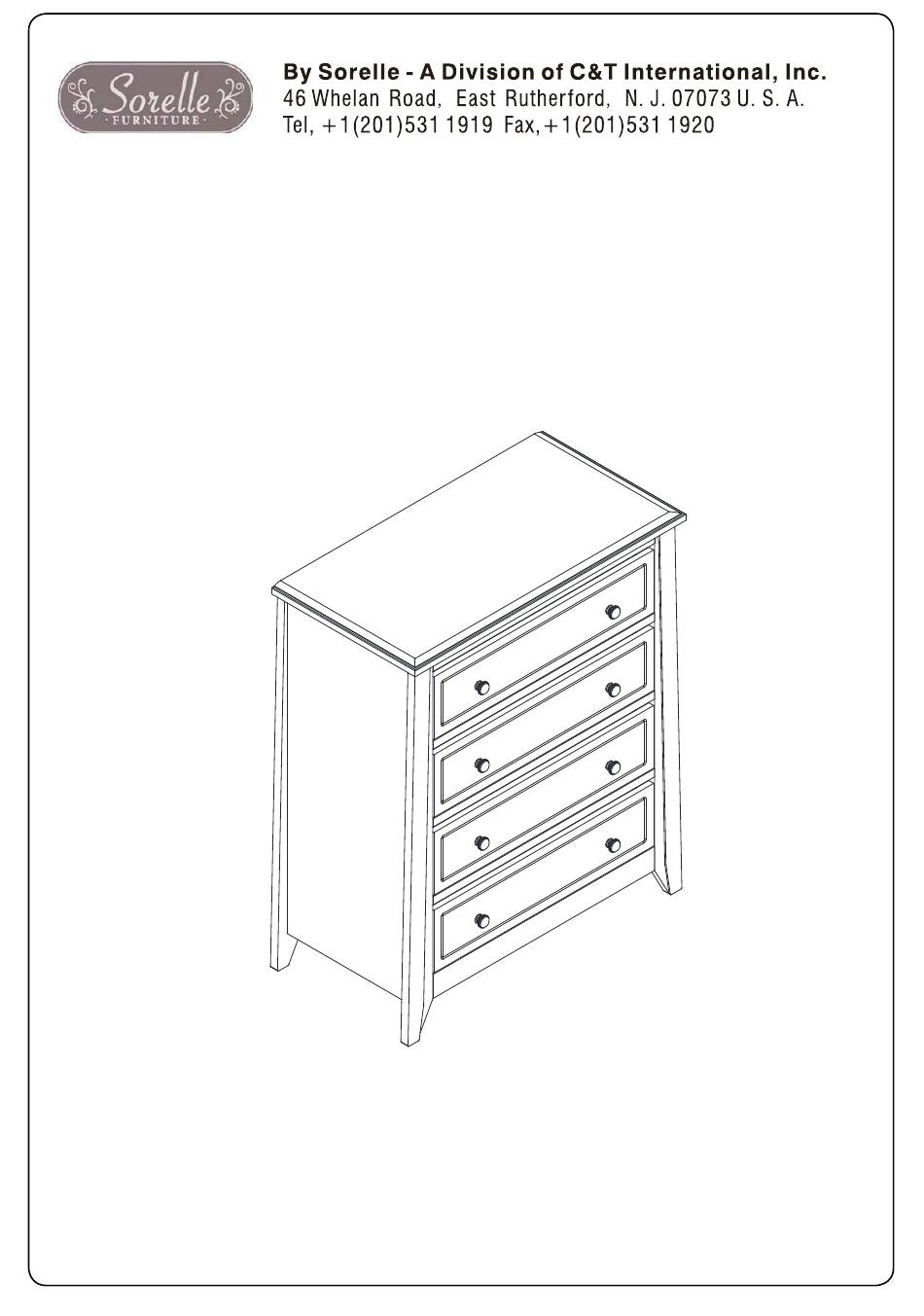

- Page 1 Website: www.sorellefurniture.com Brittany Chest Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in Vietnam...
- Page 2 SORELLE Assembly Parts (A) Left Side Panel (x1) (B) Right End (x1) (C) Front Frame (x1) (D) Back Frame (x1) ( H ) Drawer Front (x4) (H2) Drawer Back (x4) (H3) Drawer Bottom (x4) Hardware list (a) 38mm Wood Screw (16 pcs) ( b ) M4 x 22mm Allen bolt (8pcs) ( c ) Knob (x8) (d) Wall Strap Kit (1 pc)
- Page 3 SORELLE Drawer Assembly 1. Working on a padded flat surface, Opening the side panel as Figure 1. 2. Slide Drawer Bottom (H3) into gooves of side panel and front Panel as Figure 2. 3. Attach the drawer back panel (H2) to side panels using 4 Screws (a) as Figure 3.
- Page 4 SORELLE Berkley Double Dresser Assembly Attach left side panel (A) and right side panel (B) to Front Frame (C) , As figure 2 shows. Attach the back frame(D) to left side panel (A) and right side panel (B) , As figure 3 shows. Page 4...
- Page 5 SORELLE Berkley Double Dresser Assembly Attach the Top panel ( E ) to left side panel (A) and right side panel (B) , as Figure 4 shows. Assembly the drawer as Figure 5. Page 4...
