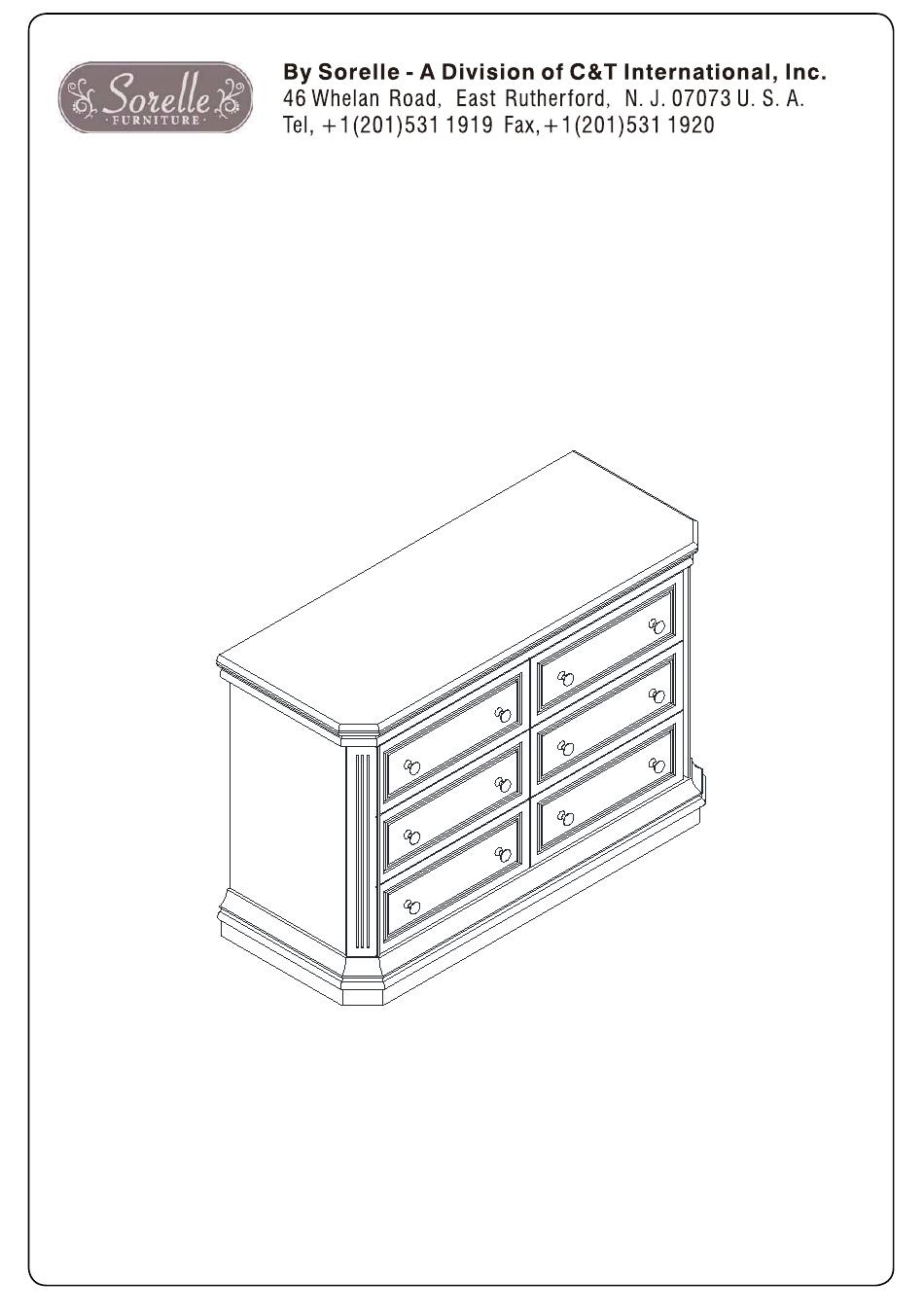

- Page 1 Website: www.sorellefurniture.com PRIMO DOUBLE DRESSER RTA Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in Vietnam...
- Page 2 SORELLE Assembly Parts (A) Left Side Panel (x1) (B) Middle Panel (x1) (C) Right End (x1) ( D ) Top Panel (x1) ( E ) Top Panel (x1) ( F ) Front Up Rail (x1) (G ) Front Middle Rail (x2) (H ) Front Down Rail (x1) ( I ) Back Up Rail (x1) ( LL ) Drawer Front (x3)
- Page 3 SORELLE Drawer Assembly 1. Attached Drawer Sides to Drawer Front as Figure 1. 2. Slide Drawer Bottom into drawer assembly. Figure 2. 3. Drawer Back Assembly as figure 3. Check all screws for tightness. 4. Konb Assembly as figure 4. Repeat for all drawers.
- Page 4 SORELLE Primo Double Dresser Assembly Rails assembly as figure. Side Panels assembly as figure. Page 4...
- Page 5 SORELLE Primo Double Dresser Assembly Assembly the Side Panels and Middle Panel as Figure . Assembly the Bottom Frame and Top Panel as Figure. Page 5...
- Page 6 SORELLE Primo Double Dresser Assembly Attach the Back Panels as Figure. X 40 Assembly the drawer as Figure. Page 5...
