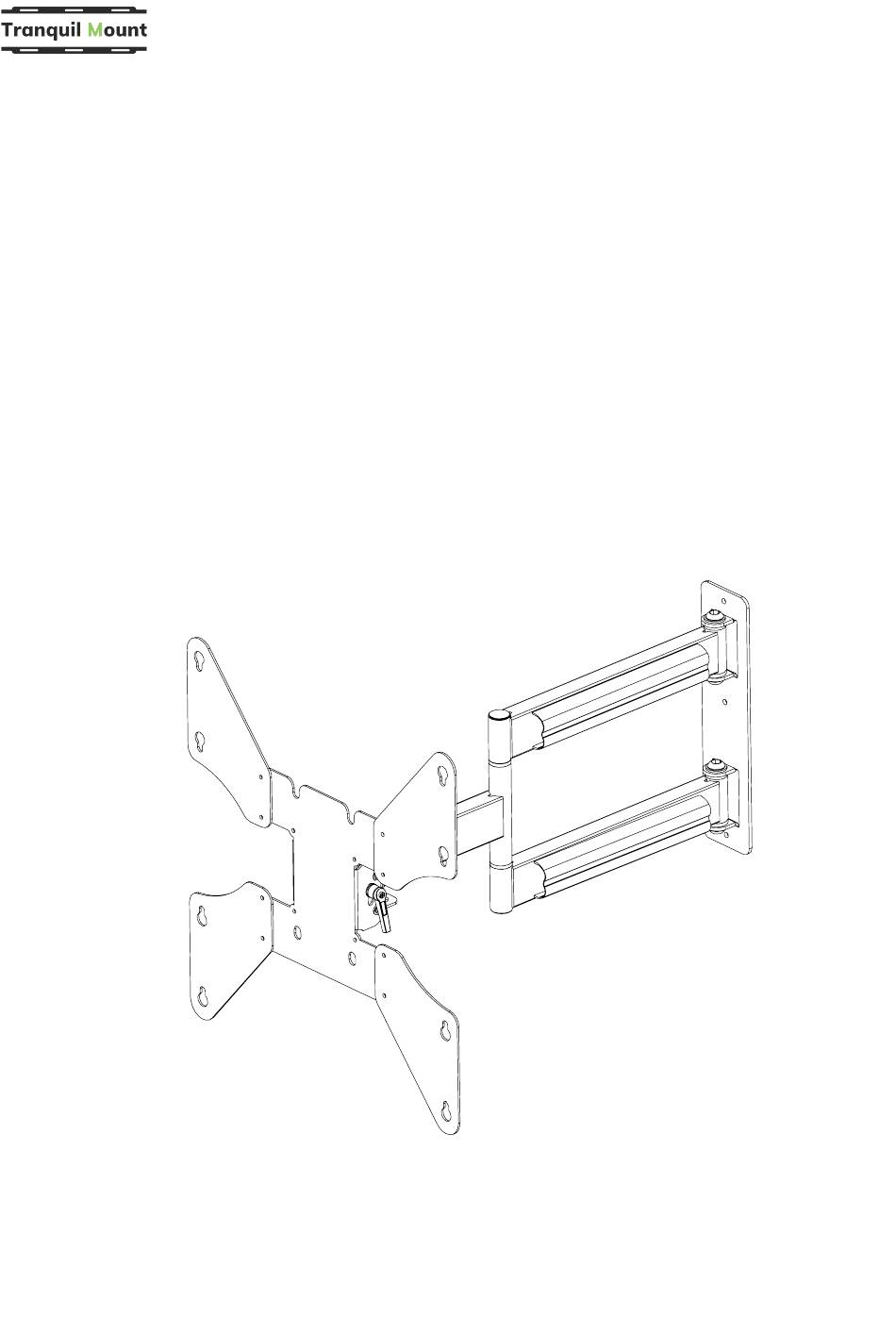

INSTALLATION GUIDE Flat Panel Arm Mount TMO-DA46 Support 32" to 55" Screens Max Load Capacity: 80 lbs (36.3 kg) VESA 400x400 compatible...
Page 2
WARNING Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before attempting to begin your installation. This product should only be installed by someone who has a basic knowledge of buiding construction,installations and fully understands these instructions.
Page 3
Before you b egin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List M6x12(x4) M6x25(x4) M8x12(x4) M8x25(x4) 17x 8.5x 14(x4) philips pan head screw philips pan head screw philips pan head screw philips pan head screw spacer 12x 6.0x 13(x4)
Page 4
Installation to Single Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
Page 5
Installation to Concrete Wall WARNING • Concrete must have a 2000 psi density minimum. Lighter density concrete may not hold the concrete anchor. • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard- ware and components.
Page 6
Attaching display mounting plate (AA) to a Screen with a VESA Mounting Pattern ® Choose hole pattern as shown in detail 3 for VESA mounting pattern. Begin with the shortest length screw, hand thread through adapter plate into screen as shown in detail 4. Screw must make at least three full turns into the mounting hole and fit snug into place.
Page 7
SCREEN SCREEN SPACER Select the small,medium,large or extra large screws from the baffled .fastener pack then attach screen brackets(AA) to screen following figure C.1.1 or C.1.2 on page 7. Insert two for 200x200 & 200x100 VESA patterns appro- priate sized bolts( C ) into the top two mounting holes on the back of your display as shown in fig.C.2.1Leave approx.
Page 8
Adjust tension knob on side of mount as shown in fig.E.1 to desired tension to balance your screen size and weight. The tension knob, without changing the bracket tension, can be pulled out, away from the bracket and turned independently of the knob post for readjustment as shown in Push or pull from top or bottom of screen to adjust tilt as shown.
