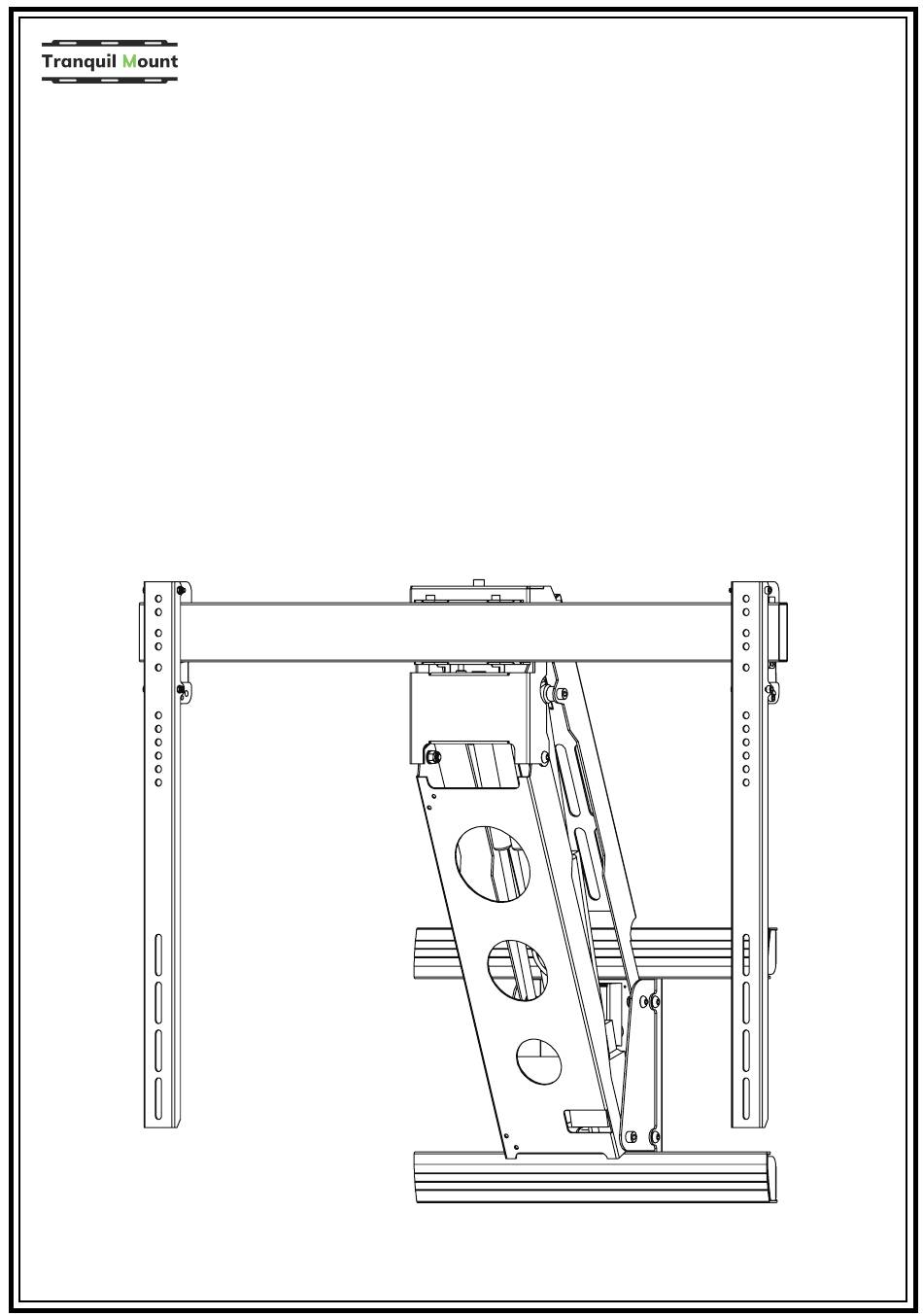

- Page 1 INSTALLATION GUIDE Mantel Arm Mount TMO-800E1 Support 45" to 100" Screens Load Capacity: 110 lbs (50 kg) VESA 800x600 compatible...
-
Page 2: Table Of Contents
• Sufficient expertise is required for installing of this product. Be sure to subcontract the installation to a qualified pe- rson. Ensure special attention to safety is paid during installation. Tranquil mount is not liable for any damage or in- jury caused by mishandling or improper installation, or by installing anything other than the specified product. -
Page 3: Parts List
Before you b egin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List Description 15x15x40 Socket heal screw M6x80 philips pan head screw M5x10 Hook block slice Standard accessories Hexagon wrench philips pan head screw M6x12 philips pan head screw... -
Page 4: Critical Requirements Of The Installation
CRITICAL requirements of the installation WARNING • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components, Bracket installation need two people together to complete. Temperature at the front edge of mantle should If the main wall is wooden,There must be at least 2 studs never exceed 110°... -
Page 5: Installation Of The Bracket
Installation of the bracket Measure the centerline of the mantle. Mark with tape on Locate at least two studs with a stud finder. Locate the the wall. center of these studs by using a sharp awl or finish nail poked through the drywall to locate each edge. Lag bolts must be installed into the CENTER of the studs. - Page 6 Installation of the bracket Take out CC/AA/E/N from the packaging , Select the app- Take out A/L from the packaging ,Use A to ensure insta- ropriate hole position according to the actual needs, and llation level, let the pre-set wire go through the hole as lock it as shown in the figure.
-
Page 7: Installation Of Screen & Adjustment Of The Limit Screw
Installation of Screen & adjustment of the limit screw Select the parts from the packaging, and according to your To be safe, this step requires two people working together, TV situation to choose F+J;or G+J+K;or H;or I+K,lock with attach the TV set to the bracket, start the tripping device, cross screwdriver. -
Page 8: Product Dimensions
TMO-800E1 880.0mm from 206 to 826.9mm 42.0mm 164.0mm removable：152.4mm removable：152.4mm from143.0 to 632.3mm ±13° swivel:±13° tilt:+3° for 45~100” screens load capacity:110Lbs 8 of 8...
