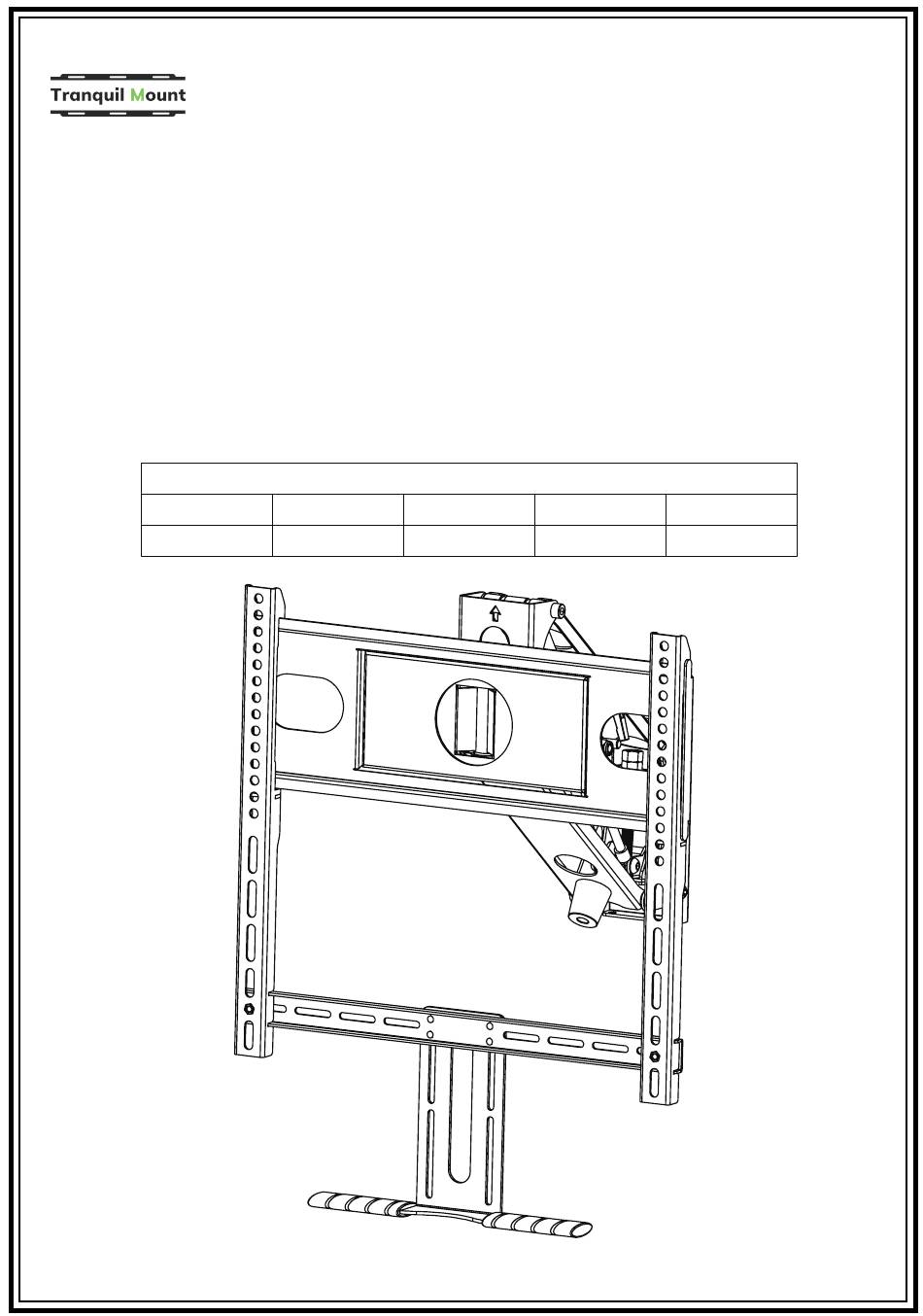

INSTALLATION GUIDE
Load Capacity: 7.0~28.5 lbs (3~13 kg)
VESA And Non-VESA compatible
100mm x 100mm
200mm x 100mm
300mm x 200mm
400mm x 200mm
Tranquil Mount
Model: TMO400B
Support 32" to 52" Screens
300mm x 100mm
300mm x 300mm
400mm x 100mm
200mm x 200mm
400mm x 300mm
400mm x 400mm
www.tranquilmount.co.uk
Advertisement
Table of Contents
Related Manuals for Tranquil Mount TMO400B
Summary of Contents for Tranquil Mount TMO400B
- Page 1 INSTALLATION GUIDE Tranquil Mount Model: TMO400B Support 32" to 52" Screens Load Capacity: 7.0~28.5 lbs (3~13 kg) VESA And Non-VESA compatible 100mm x 100mm 200mm x 100mm 300mm x 100mm 400mm x 100mm 200mm x 200mm 300mm x 200mm 400mm x 200mm...
- Page 2 Before you begin installation, please verify that all components are included and undamaged. If any parts are missing or damaged, contact Tranquil Mount Ltd or the store you purchased from. Never proceed with missing or damaged parts. Lay out all components and make sure you identify that each one has a match in the diagram.
- Page 3 Before you b egin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List Description philips pan head screw M6x12 philips pan head screw M6x25 philips pan head screw M8x12 philips pan head screw M8x25 philips pan head screw M8x35...
- Page 4 CRITICAL requirements of the installation WARNING • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. Bracket installation need two people together to complete. If the main wall is wooden, there must be at least 1 studs If the equipment is installed above the fireplace, it is recom available for mounting.
- Page 5 Installation of the bracket Measure the centreline of the mantle. Mark with tape on Locate at least two studs with a stud finder. Locate the the wall. centre of these studs by using a sharp awl or finish nail poked through the drywall to locate each edge. Lag bolts must be installed into the CENTRE of the studs.
- Page 6 Installation of the bracket Take out EE L/N from the packaging, Take out K/DD/EE/N( panner M10 ) from the Detach EE and attach packaging, installation as illustrated in the picture. Then let the pre-set wire go the back wall plate to the wall. through the hole as illustrated in the picture .
- Page 7 Installation of Screen & adjustment of the spring pressure Select the parts from the packaging,and according to your Take out J/AA/CC from the packaging, according to the TV situation to choose A+G; or B+G+H; or C; or D+H; size of the TV, adjust to the approriate location, as shown or E+H;...
- Page 8 Use the regulating handle (we provided) Loosing Tightening (counter clockwise) (clockwise) TMO400B 140~425 100 to400 swivel:±20° level：±5° tilt:-3°~10° TV:32” to 52” load capacity: 3~13 KG...
