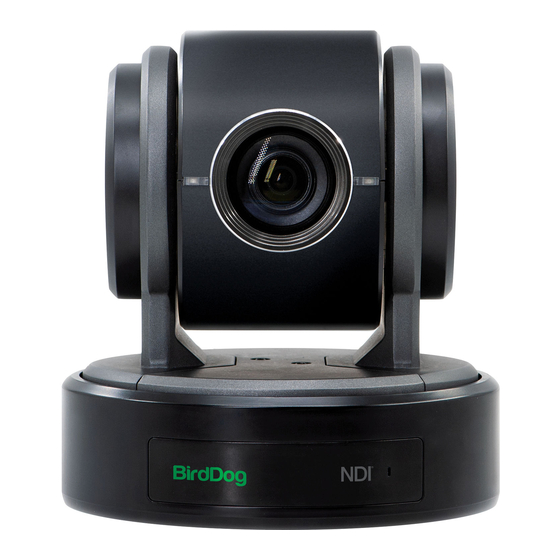

EYES P100
FULL NDI
. NO COMPROMISES.
®
USER GUIDE
PART 2: NDI
INSTRUCTIONS
®
& ADVANCED CONTROLS

Advertisement

loading
Need help?

Need help?

Do you have a question about the EYES P100 and is the answer not in the manual?

Questions and answers

Related Manuals for birddog EYES P100

Summary of Contents for birddog EYES P100

  • Page 1 EYES P100 FULL NDI . NO COMPROMISES. ® USER GUIDE PART 2: NDI INSTRUCTIONS ® & ADVANCED CONTROLS...
  • Page 2 WELCOME TO THE FUTURE.
  • Page 3 Control Powering P100 Settings PoE+ (Power over Ethernet) PT Max Speed Thermal management NDI NETWORK SETTINGS Booting up your BirdDog EYES P100 Indication of system boot process Multicast Operating P100 MultiTCP Web configuration panel Access via web browser (URL) Advanced Controls...
  • Page 4 Key features of this product BirdDog P100 has the most complete feature set for a HD production PTZ camera, including some advanced control functions to ensure the camera excels even in the most challenging conditions: •...
  • Page 5 AC adaptor. BirdDog has been tested in extreme environments. Thermal management Eyes P100 has been engineered to be passively cooled, no fans are required. In order to achieve this the entire enclosure of P100 is designed to dissipate heat.
  • Page 6 NDI compatible Indication of system boot process devices on the SAME ethernet subnet. As soon as BirdDog P100 detects a power input signal the left hand 'power/fault' light will light up For further networking architecture instructions green.
  • Page 7 Password management Once you direct your web browser to the web configuration panel you will need to log in to change any settings. EYES P100 Enter Password Default password It is recommended to change this password in a The web configuration panel is secured by a network environment where P100 is shared with user-selectable password.
  • Page 8 EYES P100 Bitrate Management NDI Video selection Birddog Devices allow you to set your target NDI Eyes P100 is capable of outputting independent output bitrate. This allows you to select a video formats for both NDI and SDI/HDMI. This compression ratio that is more efficient on your setting affects only the NDI video output.
  • Page 9 ‘Available NDI NDI Audio Selection sources’. You can update this list by pressing BirdDog Eyes P100 has the ability to route the Refresh source list in either Chrome or Firefox web incoming audio from the 3.5mm audio input socket browsers.
  • Page 10 In the event that the P100 is not visible on the network, the network has changed, or the static IP source as follows: address details have been lost, reset the BirdDog birddog-name [CAM] back to its default settings by following the factory reset procedure.

  • Page 11: Save Preset

    EYES P100 DASHBOARD NETWORK SYSTEM A/V LOGOUT Control the faster and more sensitive the movements will You are able to save and recall presets from the be on theP4K. Web Dashboard using the Select Preset option. To operate this, simply press the Preset number you...
  • Page 12 NDI NETWORK SETTINGS EYES P100 BirdDog Eyes P100 operates with the latest NDI Multicast Libraries. There are several options to configure the Multicast is especially useful for use-cases that P100’s behaviour in an NDI network. Each require a single source to be received on multiple configuration has its benefits, however it is receivers simultaneously.
  • Page 13 Advanced Controls to life and sharper images. BirdDog Eyes P100 now supports some advanced controls to enable greater fine-tuning of image These advanced controls are placed into three EYES P100...
  • Page 14 distinct setting sections: Colour Matrix, Colour Enhancement and Image Enhancement. Colour Matrix The Colour matrix section allow you to fine-tune the cameras performance for individual colours across the spectrum. You can see in this figure that the color spectrum is divided into six sections, theses being Red, Green, Blue, Cyan, Magenta and Yellow. The Colour Matrix control allows individual fine-tuning of each of these colour sections without affecting the response of other colour components.
  • Page 15 some lighting conditions where certain colours appear over saturated to the camera. Colour Hue The Colour Hue option adjusts the temperature or phase in which any colour is represented. When looking at the colour spectrum, beyond the true colour points for each of the main colour adjustments in the camera (Red, Green, Blue, Cyan, Magenta and Yellow there are areas where the colours transition to their neighbouring colour point.
  • Page 16 UPDATE - PROGRESS Waiting for update service... Updating package repositories... Connected to updater service... Installing required packages... Stopping BirdDog services... Processing update package: birddog-P100.fw Copying new BirdDog data... Extracting... Setting default systemd target... Changing directory... Rebooting... Checking if update script exists in packaging...
