- Page 1 Assembly and Operating Instructions Sand filter system SF 122 - 124 (Sand filter system small without pre-filter) Please read this manual carefully and keep it for future reference. Sand filter system...
- Page 2 Assembly and Operating Instructions Sand Filter System without Pre-filter KURZANLEITUNG / QUICK START GUIDE / NOTICE SOMMAIRE / GUIDA RAPIDA STRUČNÁ PŘÍRUČKAG / STRUČNÝ NÁVOD / KRATKA NAVODILAG / GYORS ÚTMUTATÓ Eigenschaft der Pumpe: nicht-ansaugend selbst-ansaugend > 3 m Standort der Filteranlage wählen Filteranlage muss unterhalb des Wasserspiegels stehen Selecting the filter system location Filter system must be positioned below water level...
- Page 3 Assembly and Operating Instructions Sand Filter System without Pre-filter BEKNOPTE HANDLEIDING / KORTFATTAD BRUKSANVISNING / ÎNDRUMĂTOR PE SCURT Filterstern Steigrohr Steigrohr einsetzen (2 unterschiedliche Versionen) Filtermaterial einfüllen Insert riser pipe (2 different versions) Filling the filter material in Remplacer le tube montant (2 versions différentes) Remplissage de la matière filtrante Inserire il tubo montante (2 versioni diverse) Caricare il materiale filtrante...
- Page 4 En utförlig anvisning på ditt språk finns att ladda ner på Internet under adressen http://download.waterman-pool.com Podrobné pokyny ve vašem jazyce jsou k dispozici na internetu jsou pro vás připraveny pod http://download.waterman-pool.com Podrobný návod vo vašom jazyku nájdete na internete na stránke http://download.waterman-pool.com Celotna navodila v Vašem jeziku najdete na spletni strani...
- Page 5 Assembly and Operating Instructions Sand Filter System without Pre-filter Beschreibung des 6-Wege-Ventils Description of the 6-way valve Description de la vanne à 6 voies Descrizione della valvola a 6 vie Beschrijving van het 6-weg ventiel Return Waste Beskrivning av 6-vägsventilen Popis 6-cestného- ventilu Popis 6-cestného ventilu Opis 6-potnega ventila...
- Page 6 Assembly and Operating Instructions Sand Filter System without Pre-filter STÜCK- Sand filter system Sand filter system Sand filter system LISTE SF 122 3 m³/h CP2503, 3m³/h Art. no.: 502010476 Art. no.: 2260011 Art. no.: CP2503 No. Article no. Description Filter pump Aqua Mini 3...
- Page 7 Assembly and Operating Instructions Sand Filter System without Pre-filter Sand filter system Sand filter system FH 4m³, Sand filter system Sand filter system SF 124 Sand filter system SF 124 Art. no.: tank 330mm SF 124 Konifera SF 124, OBI 2260006 + 2260006CH Art.

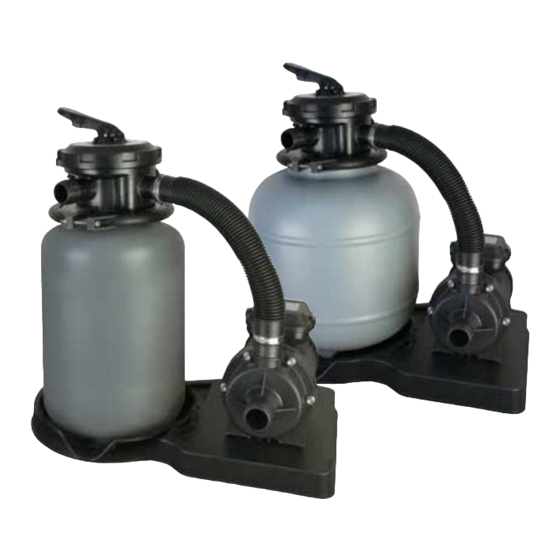

- Page 8 Assembly and Operating Instructions Sand Filter System without Pre-filter COMPONENTS OF THE FILTER SYSTEM Pump Filter tank Drain valve Filter pallet Multiway valve Connecting hose pump - valve * Each delivery includes one riser Riser pipe model 1 Riser pipe model 2 pipe model only.
- Page 9 Assembly and Operating Instructions Sand Filter System without Pre-filter Important instructions • The use of filter systems for swimming pools To avoid damage: and their protected areas is only permitted if they are designed and constructed in accor- • Never let the pump run dry (the filter system dance with VDE 0100-49D.
- Page 10 Assembly and Operating Instructions Sand Filter System without Pre-filter 1. FILTER SYSTEM – DESCRIPTION The sand filter system you have and familiarize yourself with the special features purchased is a high-quality quality and possible uses of this system. The filter system product.
- Page 11 Assembly and Operating Instructions Sand Filter System without Pre-filter 1.2 DESCRIPTION OF CIRCULATION PUMP The circulation pump is used to pump the water from the swimming pool through the filter tank and back into the swimming pool (see also enclosed separate pump manual). 1.2.2 SHAFT SEAL The pump is equipped with a mechanical seal bet- ween the pump housing and the motor to seal the...
- Page 12 Assembly and Operating Instructions Sand Filter System without Pre-filter 2. INSTALLATION OF SAND FILTER SYSTEM Step 1: The following tools are required for this: Phillips screwdriver, Teflon tape, 7 mm wrench, possibly drill, possibly cordless screwdriver, rubber hammer. Step 2: Insert the drain valve into the pre-drilled hole on the filter tank, i.e.
- Page 13 Assembly and Operating Instructions Sand Filter System without Pre-filter Step 6: Before filling the quartz sand in, close the top of the riser pipe with a plastic bag to prevent sand from entering the riser pipe. Step 7: Please select the correct quartz sand grain size (0.4 - 0.8 mm) for your filter system, as otherwise there may be problems during the filter operation.
- Page 14 Assembly and Operating Instructions Sand Filter System without Pre-filter Step 11: If necessary, loosen the clamping ring carefully using a rubber hammer to achieve a better sealing and a uniform tensioning of the clamping ring. Step 12: Only with 2260140 and 2260148 pump Insert the rubber hose fitting (only included with 2260140 and 2260148 pump) into the connecting hose and insert in on the upper pump connection...
- Page 15 Assembly and Operating Instructions Sand Filter System without Pre-filter Step 16: The hose is attached to the suction side of the pump, which runs to the swimming pool skimmer. Step 17: The return hose to the inlet nozzle is connected to the ‚Return‘...
- Page 16 Assembly and Operating Instructions Sand Filter System without Pre-filter 2.4 RINSING THE QUARTZ SAND 2.6 SETTING THE FILTRATION TIME (BEFORE COMMISSIONING) The operating time of the quartz sand filter depends Set the hand lever of the 6-way valve to the RINSE on swimming pool size (water volume), bather load, position, switch the filter system on electrically.
- Page 17 Assembly and Operating Instructions Sand Filter System without Pre-filter 3. REGULAR BACKWASHING 4. MAINTENANCE WORKS 4.1 MAINTENANCE OF FILTER TANK Clean the filter (backwashing) once a week. The gate valves must be closed during mainte- To be able to determine when to carry out a filter nance works and be reopened after completion of cleaning (BACKWAHING), we recommend to use a these works.
- Page 18 Assembly and Operating Instructions Sand Filter System without Pre-filter 4.3 GENERAL MAINTENANCE 6. TROUBLESHOOTING • 6.1 PUMP DOES NOT DRAW IN WATER The swimming pool must be maintained and AUTOMATICALLY OR THE PRIMING serviced in accordance with the manufacturer’s TAKES VERY LONG instructions.
- Page 19 Assembly and Operating Instructions Sand Filter System without Pre-filter 6.3 CIRCULATION PUMP IS TOO NOISY 6.6 QUARTZ SAND IS FLUSHED OUT OF THE FILTER INTO THE POOL 1. Filter is dirty; it must be backwashed. 2. Remove foreign particles from the pump, unscrew 1.
- Page 20 Assembly and Operating Instructions Sand Filter System without Pre-filter WHAT TO DO IF...? Tips for troubleshooting in case of problems that may occur during setup: Problem Description of problem Possible causes Possible remedial measures Filter systems / Pumps Insufficient or no filter Air intake via suction pipe Check connection piece and seals performance...
- Page 21 This will save both you and us unnecessary costs and waiting times/delays. By post to: Waterman Customer Service Bahnhofstr. 68, 73240 Wendlingen/Germany By fax to: + 49 (0) 7024/4048-667 By E-mail to: service@waterman-pool.com...
- Page 24 Please contact our customer hotline if you order, please contact our customer service directly. need any help. As a matter of course, our customer service is Waterman Customer Service available for you also after the warranty period. Bahnhofstr. 68, 73240 Wendlingen/Germany Tel.:...
