slither.io

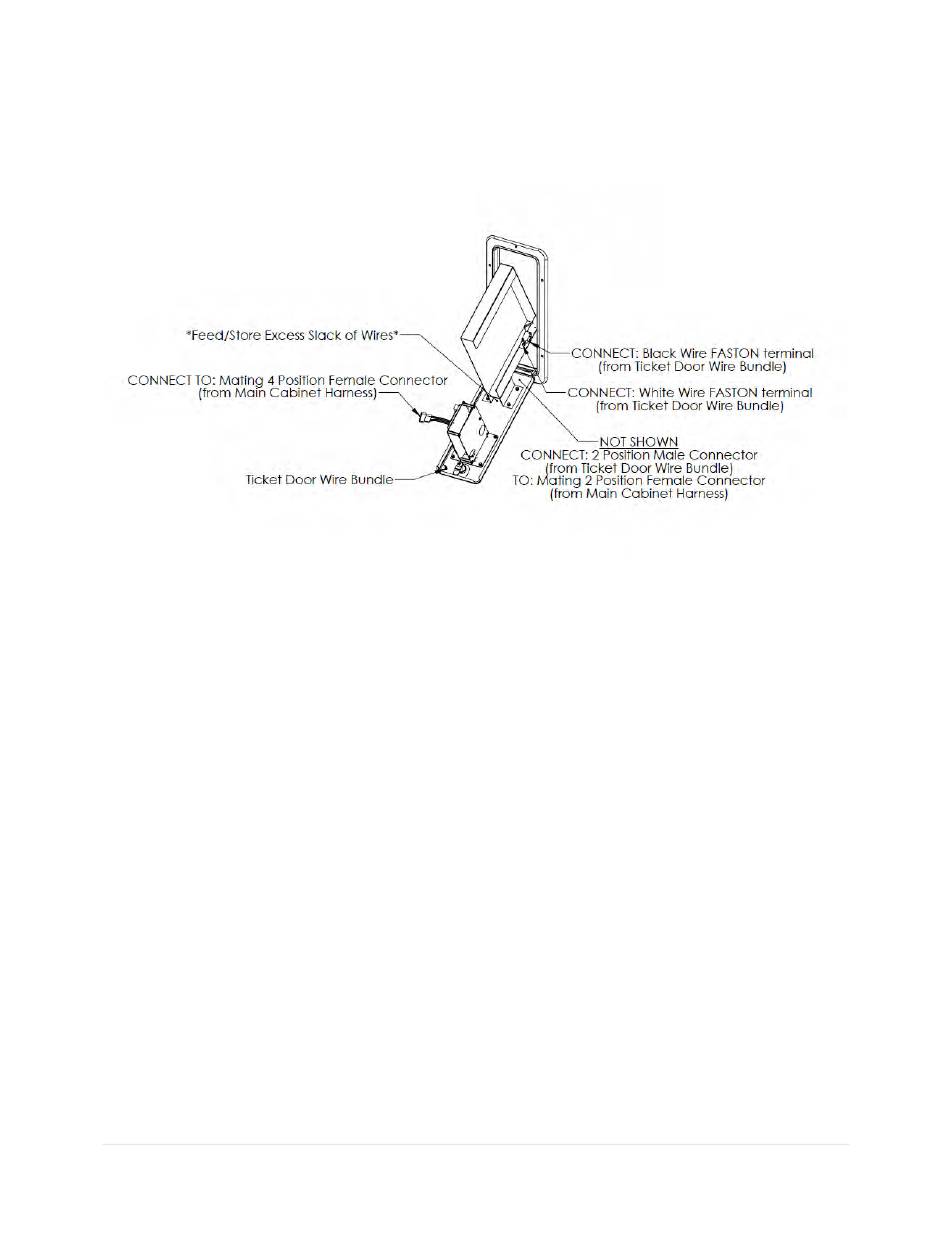

Feed 4 position female connector from main cabinet harness through wireway and connect to mating 4
position male connector wired to ticket dispenser. Connect mating 2 position connectors from ticket
door bundle and main harness. Install FASTON terminals to switch terminals as shown below; take note
of WHITE and BLACK wire designations.
14 |
P a g e
