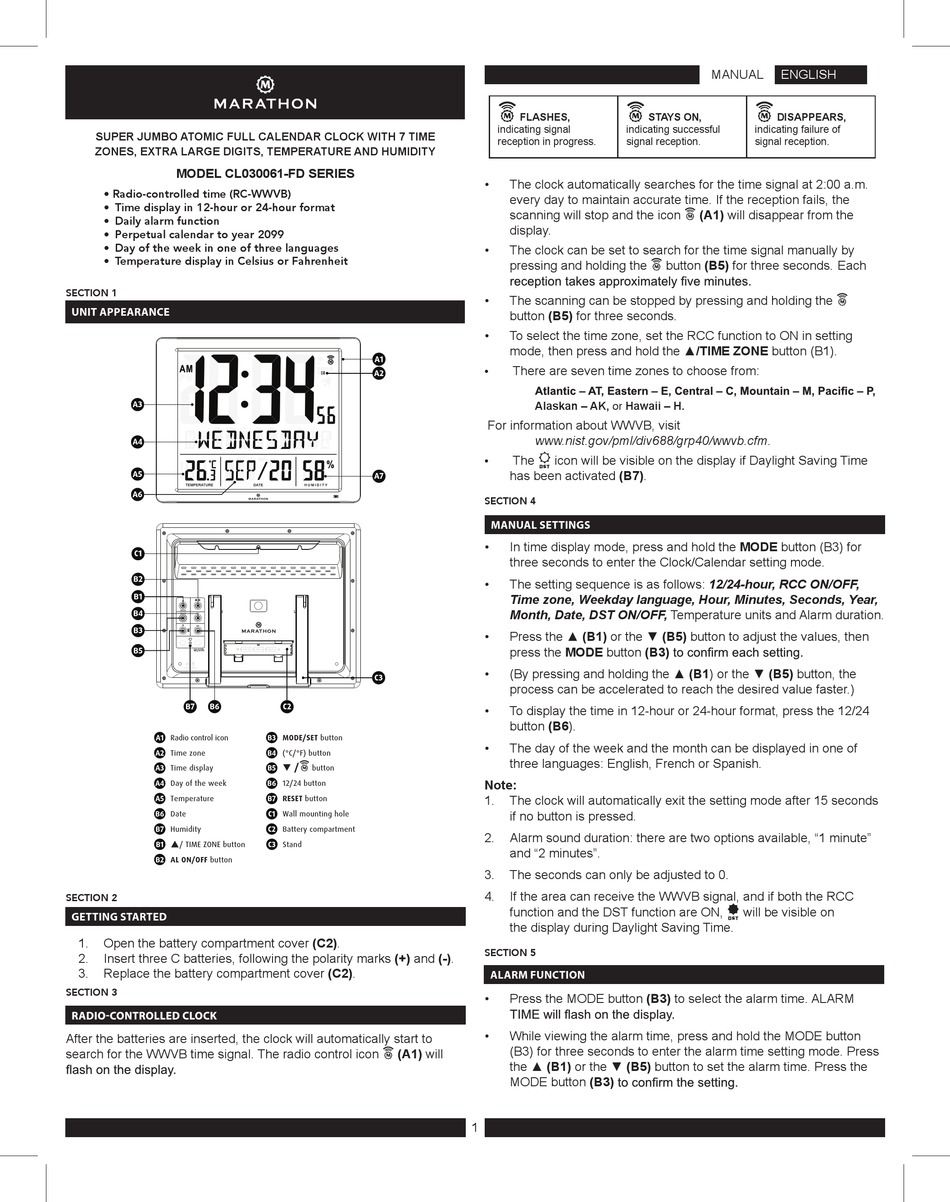

Marathon CL030061-FD Series Manual

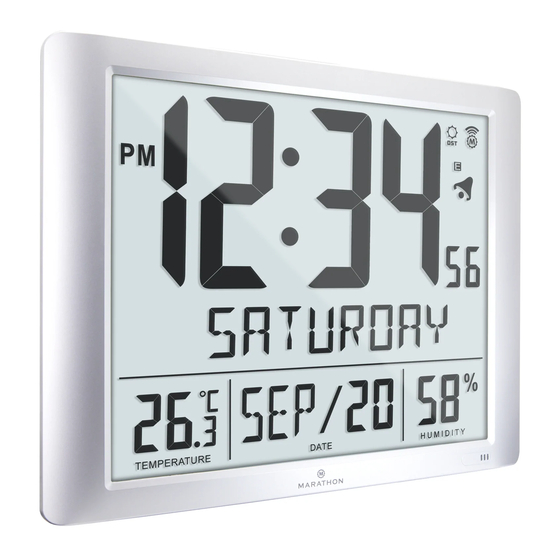

SUPER JUMBO ATOMIC FULL CALENDAR CLOCK WITH 7 TIME
ZONES, EXTRA LARGE DIGITS, TEMPERATURE AND HUMIDITY
MODEL CL030061-FD SERIES
• Radio-controlled time (RC-WWVB)
• Time display in 12-hour or 24-hour format
• Daily alarm function
• Perpetual calendar to year 2099
• Day of the week in one of three languages
• Temperature display in Celsius or Fahrenheit
SECTION 1

UNIT APPEARANCE

A3
A4
A5
A6
C1
B2
B1
B4
B3
B5
HOLD 3 SEC TO TURN
WAVE "ON" OR "OFF"
B7 B6
A1 Radio control icon
A2 Time zone
A3 Time display
A4 Day of the week
A5 Temperature
B6 Date
B7 Humidity
B1 H/ TIME ZONE button
B2 AL ON/OFF button
SECTION 2

GETTING STARTED

1. Open the battery compartment cover (C2).
2. Insert three C batteries, following the polarity marks (+) and (-).
3. Replace the battery compartment cover (C2).
SECTION 3
After the batteries are inserted, the clock will automatically start to
search for the WWVB time signal. The radio control icon J (A1) will
A1
A2
A7
C3
C2
B3 MODE/SET button
B4 (°C/°F) button
J
/
B5 I button
B6 12/24 button
B7 RESET button
C1 Wall mounting hole
C2 Battery compartment
C3 Stand
J J
FLASHES, STAYS ON,
indicating signal indicating successful
reception in progress. signal reception.
• The clock automatically searches for the time signal at 2:00 a.m.
every day to maintain accurate time. If the reception fails, the
scanning will stop and the icon J (A1) will disappear from the
display.
• The clock can be set to search for the time signal manually by
pressing and holding the J button (B5) for three seconds. Each
• The scanning can be stopped by pressing and holding the J
button (B5) for three seconds.
• To select the time zone, set the RCC function to ON in setting
mode, then press and hold the ▲/TIME ZONE button (B1).
There are seven time zones to choose from:
•
Alaskan – AK, or Hawaii – H.
For information about WWVB, visit
www.nist.gov/pml/div688/grp40/wwvb.cfm.
The icon will be visible on the display if Daylight Saving Time
•
has been activated (B7).
SECTION 4

MANUAL SETTINGS

• In time display mode, press and hold the MODE button (B3) for
three seconds to enter the Clock/Calendar setting mode.
• The setting sequence is as follows: 12/24-hour, RCC ON/OFF,
Time zone, Weekday language, Hour, Minutes, Seconds, Year,
Month, Date, DST ON/OFF, Temperature units and Alarm duration.
• Press the ▲ (B1) or the ▼ (B5) button to adjust the values, then
press the MODE button (B3)
• (By pressing and holding the ▲ (B1) or the ▼ (B5) button, the
process can be accelerated to reach the desired value faster.)
• To display the time in 12-hour or 24-hour format, press the 12/24
button (B6).
• The day of the week and the month can be displayed in one of
three languages: English, French or Spanish.
Note:
1. The clock will automatically exit the setting mode after 15 seconds
if no button is pressed.
2. Alarm sound duration: there are two options available, "1 minute"
and "2 minutes".
3. The seconds can only be adjusted to 0.
4. If the area can receive the WWVB signal, and if both the RCC
function and the DST function are ON,
the display during Daylight Saving Time.
SECTION 5

ALARM FUNCTION

• Press the MODE button (B3) to select the alarm time. ALARM
• While viewing the alarm time, press and hold the MODE button
(B3) for three seconds to enter the alarm time setting mode. Press
the ▲ (B1) or the ▼ (B5) button to set the alarm time. Press the
MODE button (B3)
1
MANUAL ENGLISH
J
DISAPPEARS,
indicating failure of
signal reception.
N
will be visible on
