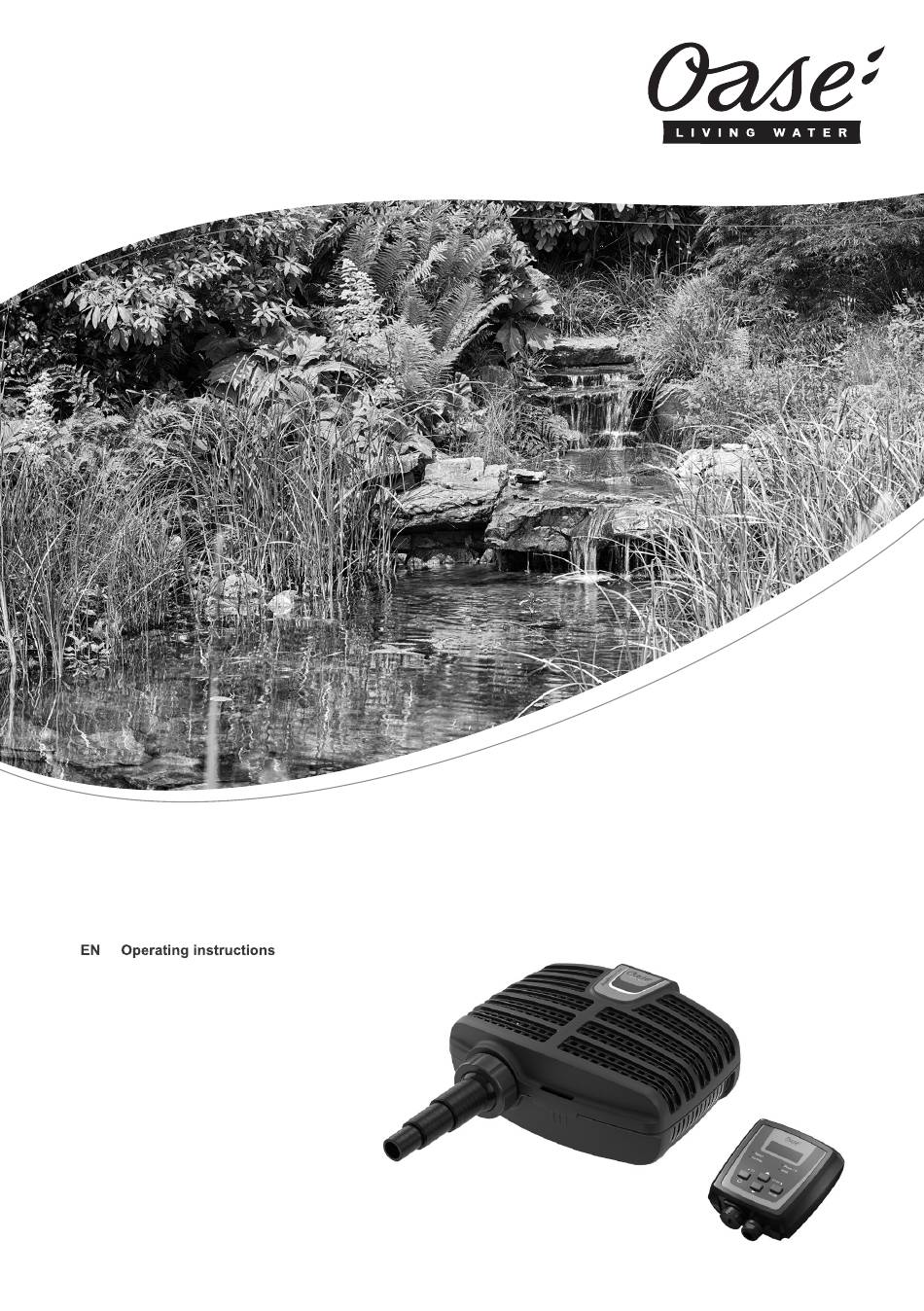

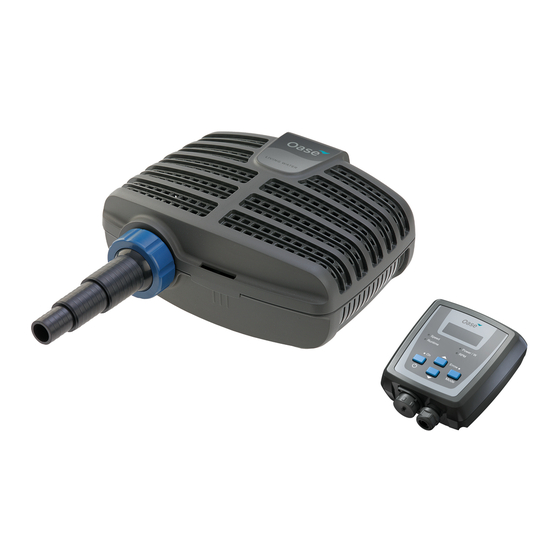

- Page 1 Downloaded from http://www.watergardeningdirect.com AquaMax Eco Classic 9000 C / 12000 C / 18000 C...
- Page 2 Downloaded from http://www.watergardeningdirect.com - - AMX0096 AMX0090 AMX0002 AMX0003...
- Page 3 Downloaded from http://www.watergardeningdirect.com - - AMX0089 AMX0094...
- Page 4 Downloaded from http://www.watergardeningdirect.com - - AMX0091 AMX0092 AMX0095...
- Page 5 Downloaded from http://www.watergardeningdirect.com - - AMX0093...
- Page 6 Downloaded from http://www.watergardeningdirect.com - EN - - EN - Translation of the original Operating Instructions WARN ING W AR N I N G • This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
-
Page 7: Table Of Contents
Symbols on the unit........................27 Information about these operating instructions You made a good choice with the purchase of this product AquaMax Eco Classic 9000 C / 12000 C / 18000 C. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise your- self with the unit. -
Page 8: Safety Information
Description Filter pump Controller for regulating the speed of the filter pump • Control via the OASE App "Easy Switch" Retaining frame for mounting controller to the wall Ground stake for mounting controller at ground level Stepped hose adapter with ball joint, seal, coupling nut and hose clip... -
Page 9: Installation And Connection
Downloaded from http://www.watergardeningdirect.com - EN - Intended use Only use the product described in this manual as follows: • For pumping normal pond water for filter systems, waterfall systems and water course systems. • Operate in accordance with instructions. (→ Technical data) •... - Page 10 Downloaded from http://www.watergardeningdirect.com - EN - Install the unit at a dry place E • Swimming pond or pool that may be accessed by people. – Install the unit at least 2 m away from the water. • Do not expose the pump to direct sunlight. How to proceed: ...
-
Page 11: Commissioning/Start-Up
LED wireless connection • The LED lights up when the wireless connection is switched on. • The LED blinks when connected to the OASE App. Speed / % The respective LED lights up for the mode that is selected. Runtime / h •... - Page 12 − The LED in the display lights up when the wireless con- nection is switched on. − The LED in the display blinks when connected to the OASE App. − (→ Controller overview) • When the unit is delivered, the wireless connection is switched on.
-
Page 13: Remedy Of Faults
Proceed as follows Information Download and install the OASE App "Easy Switch" to the The OASE App is available on iOS (App Store) and Android smartphone/tablet. (Play Store). If you have not already done so, switch on the wireless (→ Switching the wireless connection on/off) -
Page 14: Maintenance And Cleaning
• Do not not use cleaning agents or chemical solutions. • Recommended cleaning agent for removing stubborn limescale deposits: – Pump cleaning agent PumpClean from OASE. – Vinegar- and chlorine-free household cleaning agent. • After cleaning, thoroughly rinse all parts in clean water. -
Page 15: Wear Parts
Wear parts • Impeller unit Spare parts The use of original parts from OASE ensures continued safe and reliable operation of the unit. Please visit our website for spare parts drawings and spare parts. -
Page 16: Technical Data
Downloaded from http://www.watergardeningdirect.com - EN - Technical data 14.1 Unit data Description AquaMax Eco Classic 9000°C 12000°C 18000°C Connection voltage V AC 220 … 240 220 … 240 220 … 240 Mains frequency 50/60 50/60 50/60 Power consumption 23 … 90 26 …... - Page 17 Downloaded from http://www.watergardeningdirect.com...
