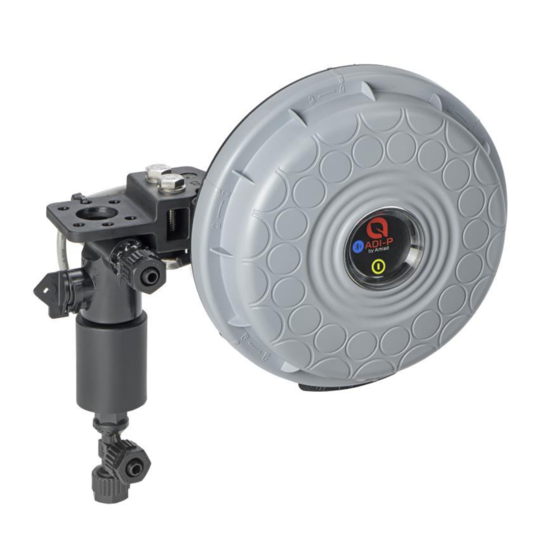

amiad ADI-P Installation, Operation And Maintenance Instructions
Smartphone operated controller for filtration systems
Hide thumbs
Also See for ADI-P:
- Quick manual (4 pages) ,
- Troubleshooting manual (7 pages) ,
- Quick start manual (5 pages)
Subscribe to Our Youtube Channel
Related Manuals for amiad ADI-P
Summary of Contents for amiad ADI-P

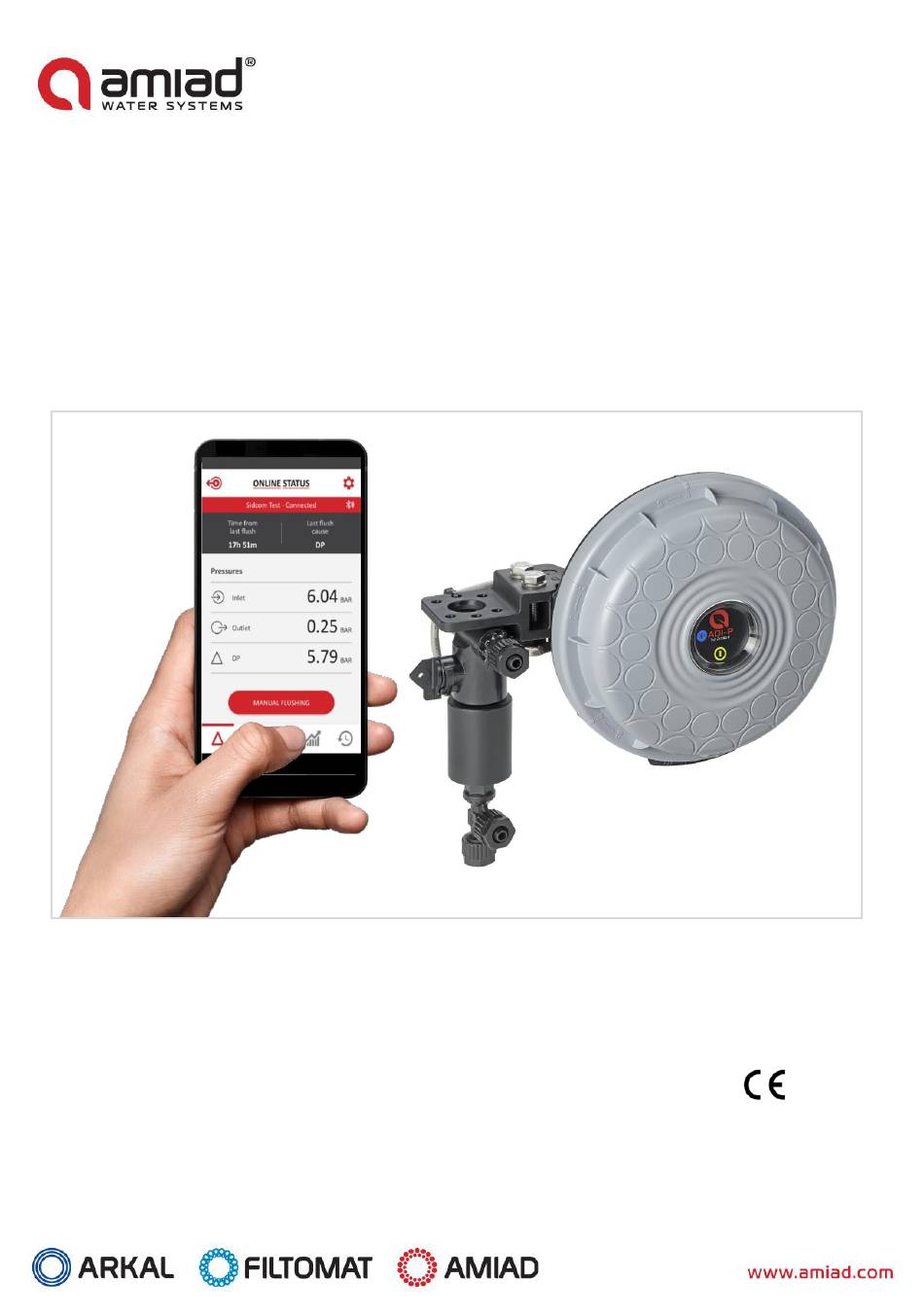

- Page 1 AMIAD Water Systems Ltd. ADI-P - Smartphone Operated Controller for Filtration Systems Installation, Operation and Maintenance Instructions Original Instructions Patent Pending Ref: 05/2020 ADI-P 910101-000992 / 05.2020 Page 1 of 21...
- Page 2 Amiad assumes that all users understand risks involved within this file and/or its attached materials. This document is given in good faith and is not intended to impose any obligation to Amiad. While every effort has been made to ensure the information in this manual is accurate and complete, we would appreciate if you can bring any errors or omissions to the knowledge of Amiad or consult Amiad experts or its authorized representatives if you have any questions.
-
Page 3: Table Of Contents
Specifications Table ..................................14 ADI-P Terminal Blocks Connections ..............................15 Annex A. Chaining ADI-P Controllers: ............................. 16 Annex B. Remarks on connecting the ADI-P Controller to an AC/DC Adaptor: ................19 Amiad Limited Warranty ................................20 ADI-P 910101-000992 / 05.20 0... -
Page 4: Safety First
➢ Ensure walking areas around the installation are slip resistant when wet. Shipment and transporting ➢ Shipping and transporting the controller must be done in a safe and stable manner and in accordance with the relevant standards and regulations. ADI-P 910101-000992 / 05.20 0 Page 4 of 21... -
Page 5: Commissioning
➢ Operating season: Your ADI-P controller is equipped with a built-in feature that detects low temperatures and increases the number of flushes to avoid freezing of water. You can activate and adjust the settings of this feature in your Settings menu. -
Page 6: Introduction
Introduction Thank you for purchasing the ADI-P controller - a smartphone operated controller for filtration systems of up to two filters. The system consists of two major components, the ADI-P Controller and the ADI-P Mobile Application. The ADI-P Controller can be supplied in two different configurations: as an integral component already connected to the filter(s) and configured for that specific filter model or as a standalone unit to be connected and configured for an existing installed filter(s). - Page 7 Initial operation of the ADI-P Controller: Open the cover of the ADI-P Controller by turning it counterclockwise [1] and insert four alkaline 1.5V AA batteries [2]. The Power LED turns on and the ADI-P Controller starts operating according to its pre-defined default flushing program;...
- Page 8 10. In order to view data from your controller, select the active controller from the SITE LIST, marked by the active ® Bluetooth icon. 11. The ONLINE STATUS screen appears and relevant data regarding your filter’s performance can be viewed. ADI-P 910101-000992 / 05.20 0 Page 8 of 21...
- Page 9 Getting to know the ADI-P Application: Take a few moments to familiarize yourself with the ADI-P mobile application interface: Once running and controlling the filter, the application has 5 main screens. Scroll through these screens by sliding to the right or to the left.
-
Page 10: Screens Details
The outlet pressure is less than 1.5 bar Check the filter and the water system pressure High upstream pressure The inlet pressure is greater than maximum Adjust the water system inlet pressure allowed pressure for the filter ADI-P 910101-000992 / 05.20 0 Page 10 of 21... - Page 11 This screen shows the user manual. Support Contact Us screen. App Version Displays the current version of the ADI-P Application. Messages Messages from the Amiad system The Settings screens: Enter the setup screens by tapping on the Settings icon in the upper right corner of any of the 5 main screens: The upper red line Displays the name of the currently connected controller and the communication status.
- Page 12 High DP Alarm Set Point Set the DP level for issuing a High DP Alarm Message (System Log). Repeated Flushes to Set the number of continuous flush cycles so the ADI-P controller enter to Fault Mode . Start Fault Mode Cycle Time for Set the cycle time for counting a flush cycle as continuous flushing.
-
Page 13: Download And Export Reports
Allows the user to delete a site from the smartphone. Download and Export Reports In addition to the on-screen reports, the ADI-P is capable of logging, storing, downloading and exporting status and operation data through the user's smartphone. 1. Enter the "Export Data" section of the Settings Screen; In order to make sure that the system exports the latest data, refresh the screen (slide your finger along the screen from top to bottom). -
Page 14: Specifications Table
FCC 47CFR part 15: 2017, subpart B, Class B ICES-003: 2016 Issue 6, Class b Standards AS/NZS CISPAR 32 :2015 Class B EN 61326-1: 2013, basic immunity requirements, Class B JEC 61010-1 ADI-P 910101-000992 / 05.20 0 Page 14 of 21... -
Page 15: Adi-P Terminal Blocks Connections
ADI-P Terminal Blocks Connections Connecting NO or NC solenoids to the controller Connecting NO or NC solenoids to the ADI-P Controller is possible depending on the filter type. NO versus NC solenoids a. Please note that NO solenoids have black manual overriding handles while NC solenoids have red manual overriding handles. -
Page 16: Annex A. Chaining Adi-P Controllers
Annex A. Chaining ADI-P Controllers: General: It is possible to daisy-chain several ADI-P Controllers in order to operate a battery of filters’ flushing according to a single DP switch (either internal or external). The DP switch that reads the pressure drop across the battery is the internal DP switch of the first controller in the chain (the Primary) or an external DP switch connected to the Primary Controller. - Page 17 Connection Instructions: The connecting process has two stages; Stage 1: wires connection. Stage 2: setting the ADI-P App for chained operation. Stage 1: Wires Connection 1. Connect between the Primary controller’s NO relay output and the Secondary controller’s external DP input.
- Page 18 Stage 2: Setting the Application To connect the Adi-P App to the Primary controller, perform the following: A. Click the Settings icon on the top right of the home screen. B. Scroll down through the Settings screen. C. Select Technician Settings.
-
Page 19: Annex B. Remarks On Connecting The Adi-P Controller To An Ac/Dc Adaptor
Connecting the ADI-P Controller to a DC external power source: General: The ADI-P system is powered by 4X1.5V AA consumer alkaline batteries (non-rechargeable, safety approved) and/or by external safety approved external DC power supply 7-14VDC, max 1A (not provided with equipment). -
Page 20: Amiad Limited Warranty
In no event shall Amiad be liable to the Buyer or any third party for any damages to property, or for any intangible or economic loss, including loss of profits, loss of customers or damage to reputation, for any damages, including indirect, special, consequential damages, or punitive damage arising out of or in connection with this Warranty, or arising out of or in connection with the product's performance or failure to perform, even if it has been advised of the possibility of such damages. - Page 21 Manufacturer Amiad Water Systems Ltd. D.N. Galil Elyon 1, 1233500, Israel. Tel: +972 4690 9500 | Fax: +972 48141159 | Email: info@amiad.com European Authorised Representative for CE Obelis s.a. Bd Général Wahis 53, 1030 Brussels, Belgium. Tel: +(32) 2732 5954 | Fax: +(32) 27326003 | Email: mail@obelis.net...
